Project: Network Traffic Analysis using Wireshark

Course: Cloud and Network Security
Tool: Wireshark
Role: Network Security Analyst
Focus: Packet Analysis, ICMP Inspection, Layer 2 vs Layer 3 Communication

Executive Summary

This project focused on capturing and analyzing network traffic using Wireshark to understand how data flows across local and remote networks. By inspecting ICMP (ping) traffic, I examined packet structures, MAC addressing behavior, and how network devices communicate within and beyond a local network.

The analysis highlighted the difference between local network communication (Layer 2 visibility) and remote communication (Layer 3 routing), demonstrating how MAC addresses are resolved locally but replaced by gateway addresses when traffic leaves the local network.

This exercise reinforces key cybersecurity concepts such as network visibility, packet inspection, and traffic analysis, which are essential for detecting anomalies and troubleshooting network issues.

Network Traffic Analysis Architecture

The analysis involved two main scenarios:

  1. Local network ICMP communication (same LAN)
  2. Remote ICMP communication (internet-based)

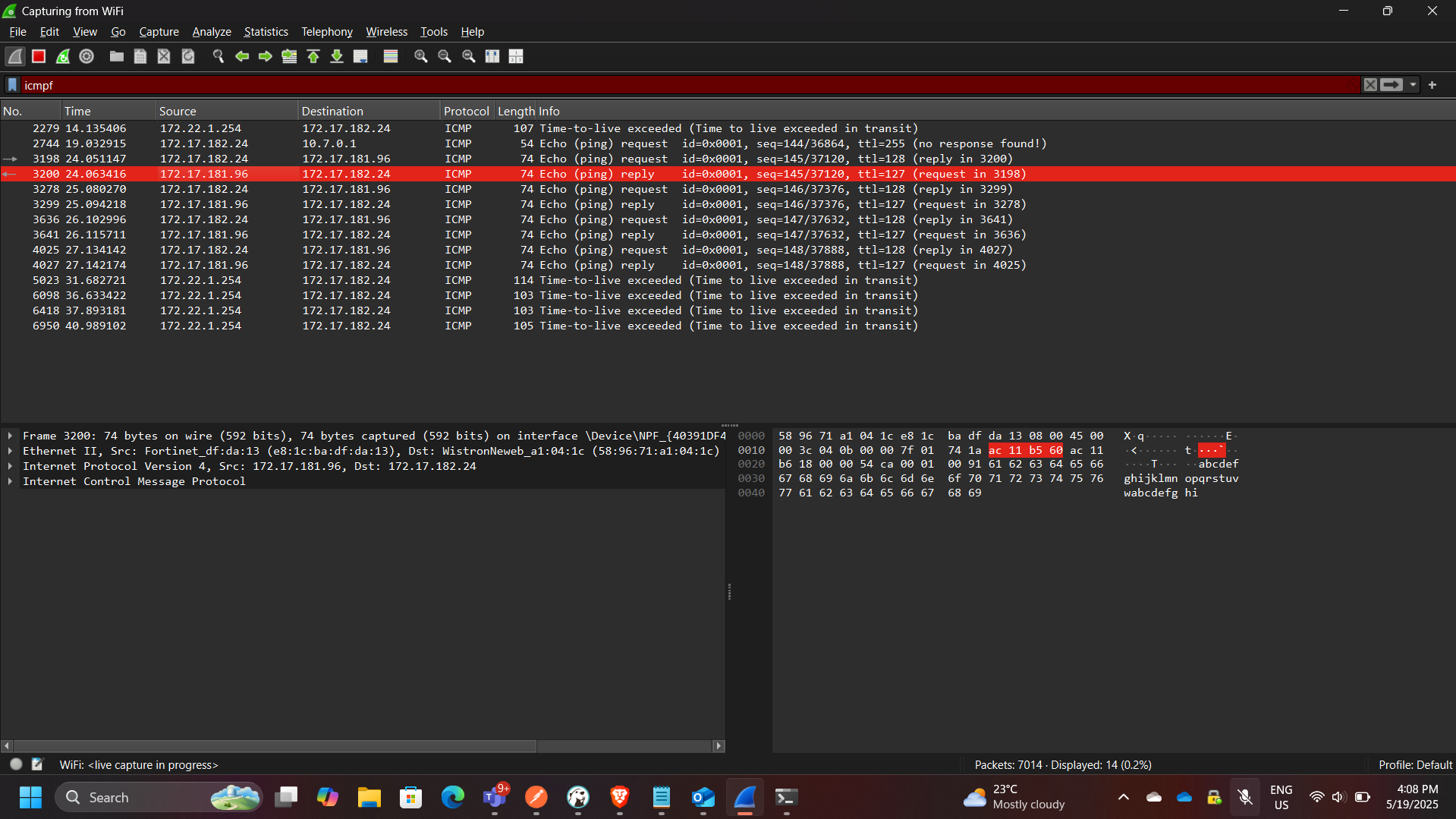

Wireshark ICMP Flow

Part 1: Local ICMP Traffic Analysis

In this phase, ICMP traffic was captured between two devices within the same local network.

Key Observations

  • The source MAC address matched the local machine’s network interface
  • The destination MAC address matched the target device on the LAN
  • Communication occurred directly at Layer 2

Key Concept

The MAC address of the destination host is obtained using:

👉 ARP (Address Resolution Protocol)

This allows the sender to map an IP address to a MAC address before transmitting the packet.

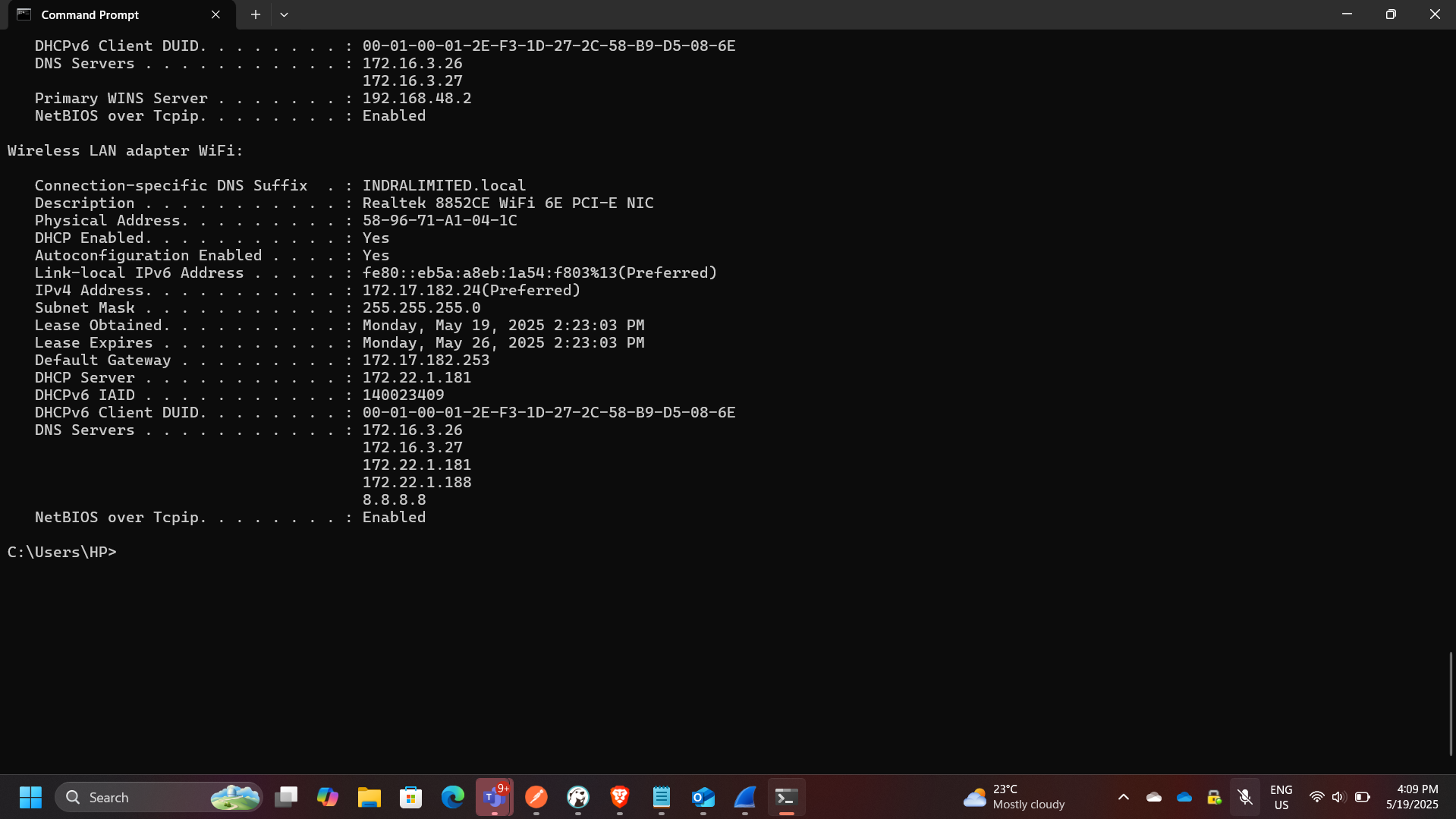

Local ICMP Capture

Part 2: Remote ICMP Traffic Analysis

In this phase, ICMP traffic was captured while pinging external servers:

  • yahoo.com → 98.137.11.163
  • cisco.com → 72.163.4.185
  • google.com → 172.217.170.174

Key Observations

  • All remote destinations resolved to the same MAC address
  • The MAC address observed belonged to the default gateway (router)

Explanation

When traffic leaves the local network:

  • The packet is sent to the default gateway
  • The gateway forwards it to the internet
  • The actual destination MAC is not visible

Key Insight

👉 Wireshark only captures local Layer 2 information

Therefore:

  • Local traffic → shows actual destination MAC
  • Remote traffic → shows gateway MAC

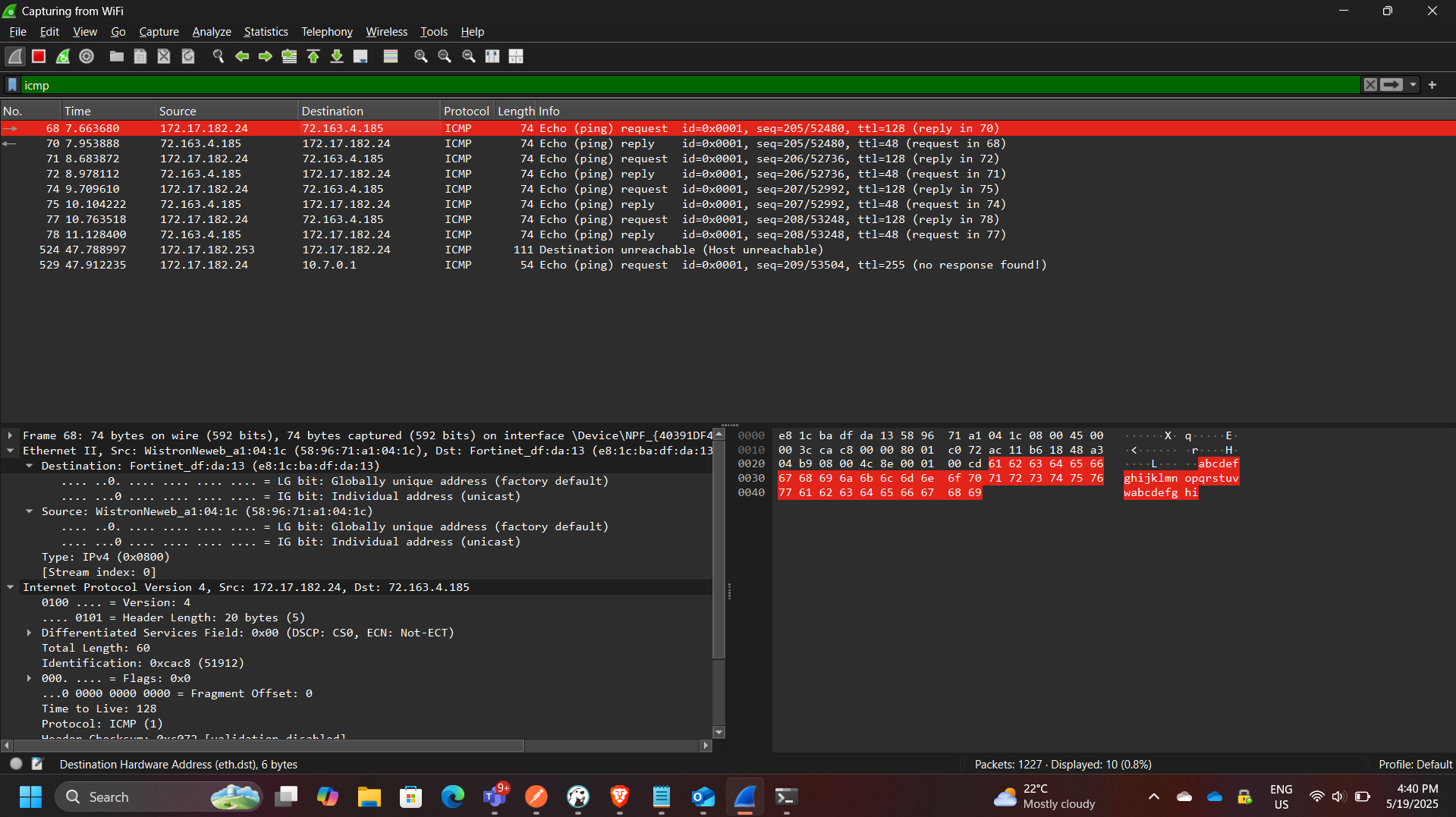

Remote ICMP Capture

Key Security Insight

Why MAC Addresses Differ (Local vs Remote)

Scenario MAC Address Observed
Local Network Actual destination device
Remote Network Default gateway (router)

This occurs because:

  • MAC addresses are only valid within a local broadcast domain
  • Routers replace Layer 2 headers at each hop

Firewall Consideration

The lab also involved enabling ICMP traffic through a firewall.

Key Actions

  • Created an inbound rule allowing ICMP traffic
  • Verified traffic capture in Wireshark
  • Disabled the rule after testing

Security Implication

Allowing ICMP:

  • Helps with troubleshooting
  • Can expose systems to reconnaissance (ping sweeps)

Security Concepts Demonstrated

This project demonstrates:

  • Packet capture and inspection
  • ICMP protocol analysis
  • ARP resolution
  • Layer 2 vs Layer 3 behavior
  • Gateway-based routing
  • Firewall rule impact on traffic visibility

Enterprise Relevance

Network traffic analysis is critical in enterprise environments for:

  • Detecting malicious traffic
  • Investigating incidents
  • Monitoring network performance
  • Identifying misconfigurations
  • Supporting threat detection systems (IDS/IPS)

Wireshark is widely used by:

  • Network engineers
  • SOC analysts
  • Incident responders

Conclusion

This project provided hands-on experience analyzing real network traffic using Wireshark. By comparing local and remote ICMP communication, I gained a deeper understanding of how network layers interact and how routing affects packet visibility.

The exercise reinforced fundamental networking and security concepts, including ARP resolution, gateway routing, and packet inspection, all of which are essential skills in network security and troubleshooting.
