Layer 2 Network Segmentation & Switch Security Architecture using Cisco VLANs
Project: Layer 2 Network Segmentation & Switch Security Architecture
Timeline: June 2025
Role: Network Security Engineer
Platform: Cisco Packet Tracer
Focus: VLAN Segmentation, Switch Hardening, Port Security, DHCP Snooping
Executive Summary
This project demonstrates the design and implementation of a secure Layer 2 network using Cisco routers and Catalyst switches. The lab focused on network segmentation using VLANs, trunking configuration using IEEE 802.1Q, and the implementation of multiple switch security features to protect against common Layer 2 attacks.
The implementation included:
- VLAN segmentation
- Secure trunk configuration
- Switch port security
- DHCP snooping
- BPDU guard
- PortFast configuration
- Securing unused switch ports
These configurations help mitigate common network threats such as rogue DHCP servers, MAC flooding attacks, VLAN hopping, and spanning-tree manipulation.
Network Architecture
The network topology consisted of:
- Cisco 4221 router
- Cisco Catalyst 2960 switches
- Multiple VLAN segments
- End hosts connected to secured access ports
The switches were configured to enforce segmentation and security policies across the network.
Part 1: Network Device Configuration

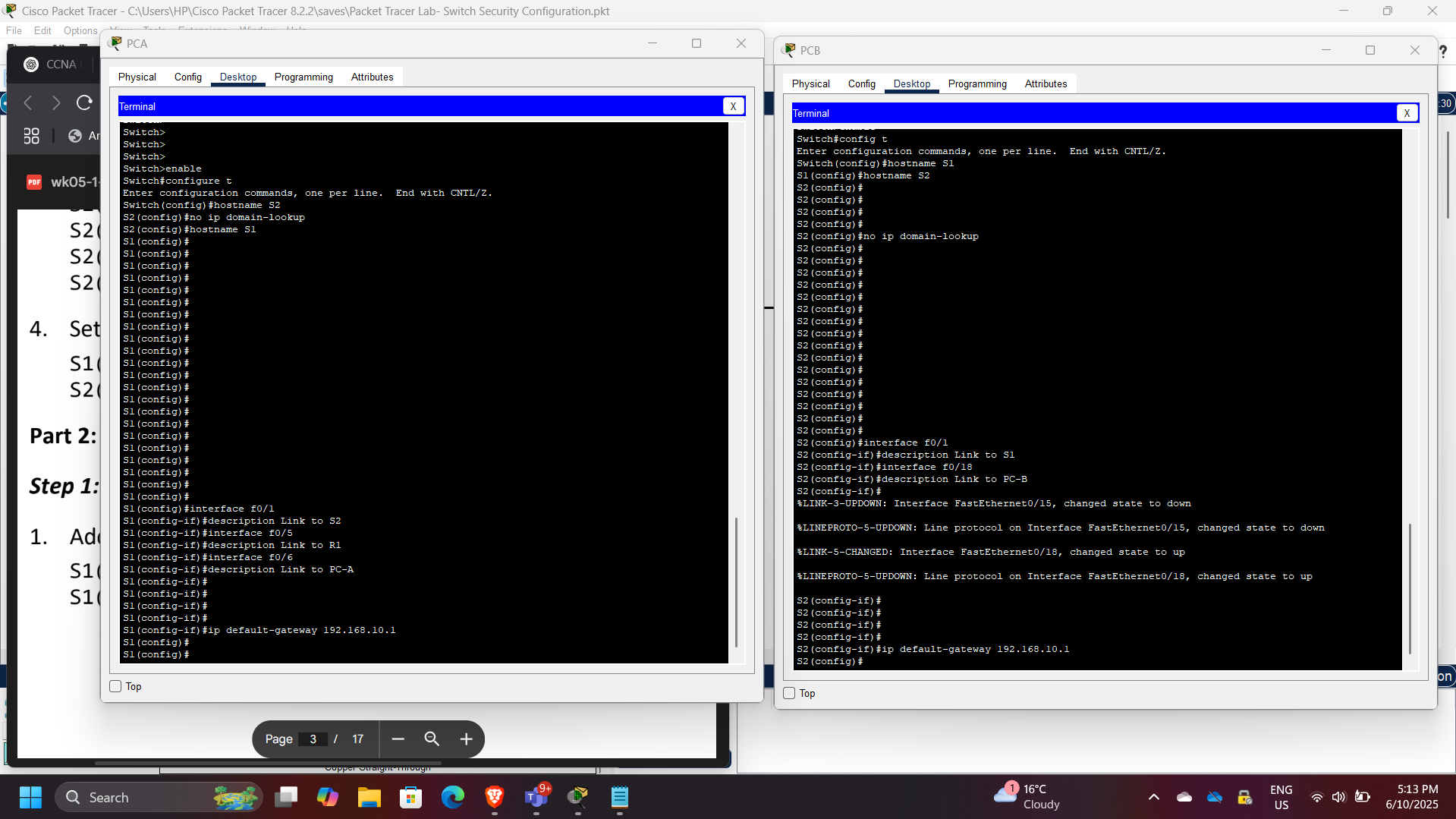

Initial configuration included:
- Hostname configuration
- Interface configuration
- Basic switch management settings
- Verification of connectivity
This step ensured the devices could communicate before implementing segmentation and security controls.

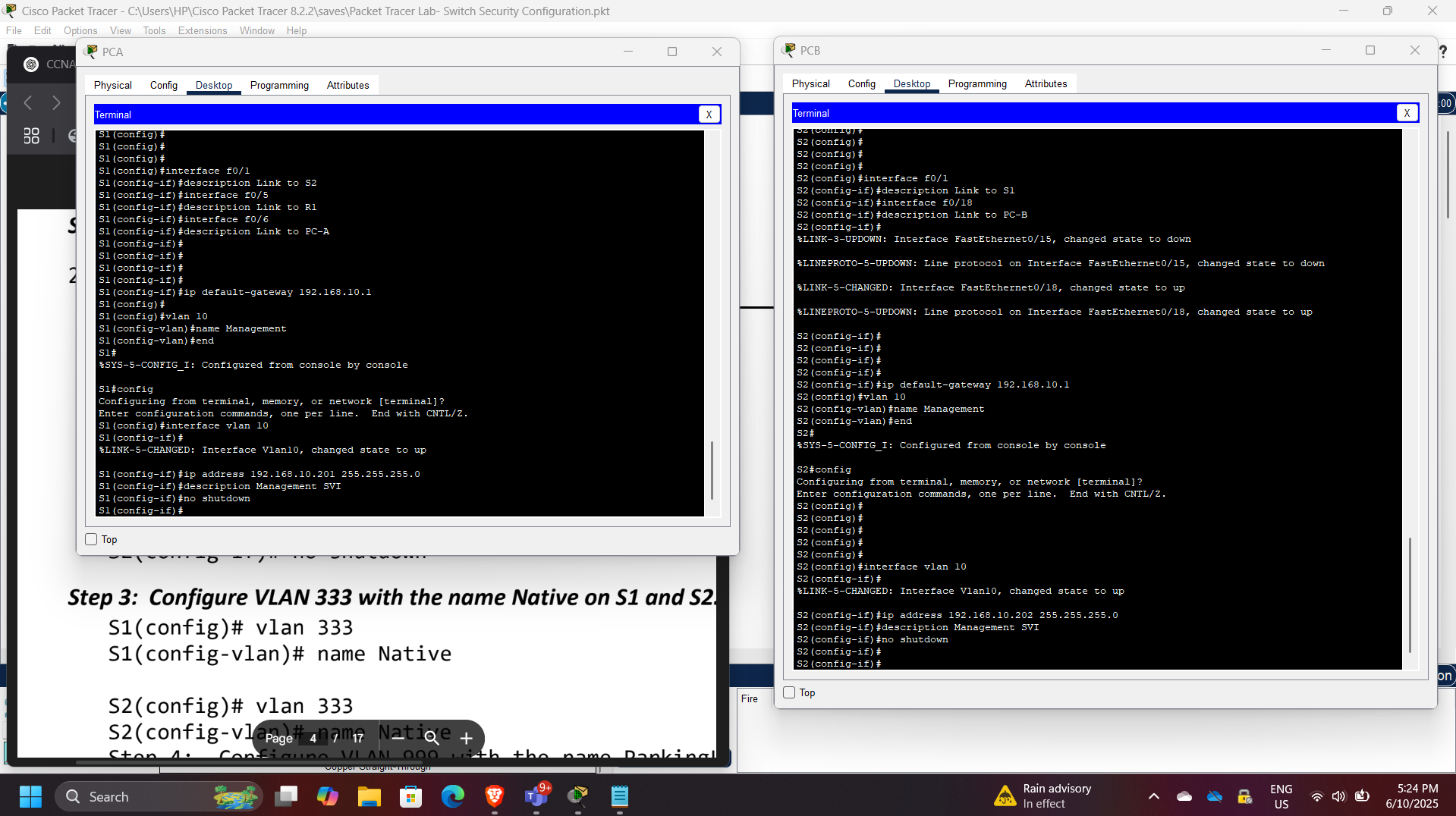

Part 2: VLAN Configuration
VLANs were created to logically segment the network and isolate broadcast domains.
VLAN Design
| VLAN ID | Purpose |
|---|---|
| VLAN 10 | User network |
| VLAN 333 | Native VLAN |
Example VLAN configuration:
vlan 10
name Users
vlan 333
name Native

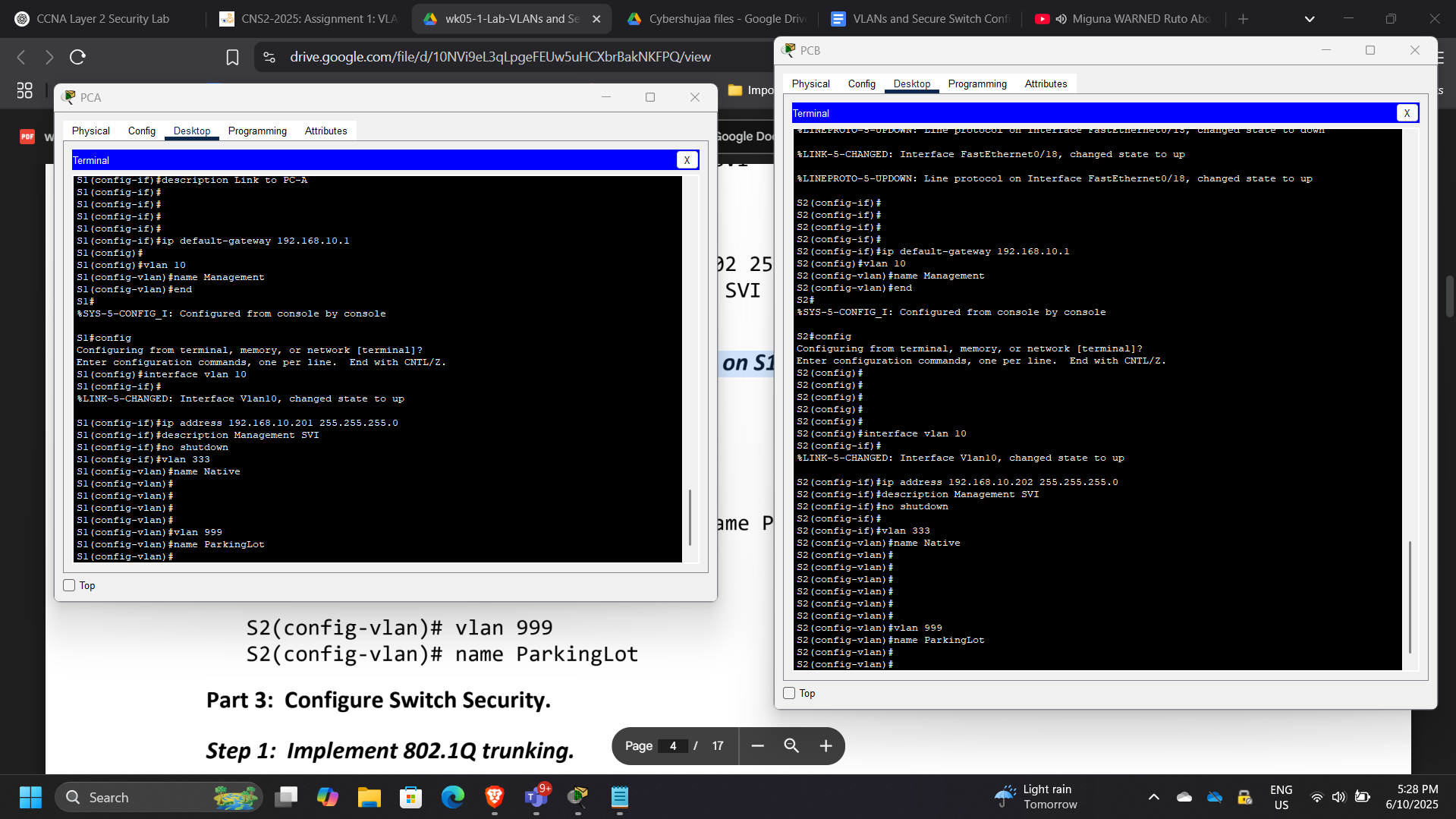

802.1Q Trunk Configuration
Trunk links were configured between switches to allow VLAN traffic to traverse network segments.
Example trunk configuration:
switchport mode trunk
switchport trunk native vlan 333
This allows multiple VLANs to pass across a single physical link.

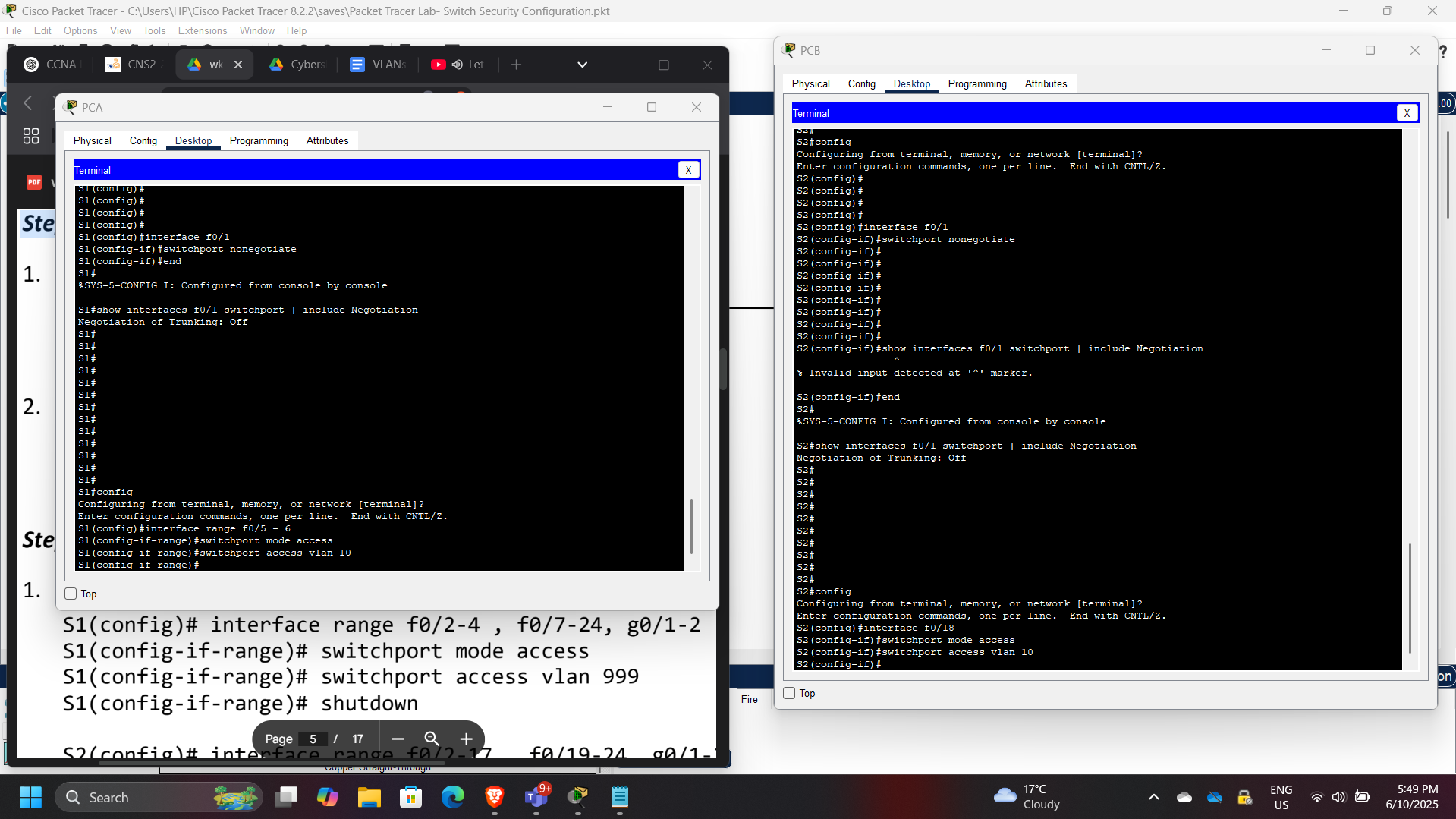

Access Port Configuration
Access ports were assigned to specific VLANs to connect end-user devices.
Example configuration:
switchport mode access
switchport access vlan 10
This ensures proper VLAN segmentation for connected hosts.

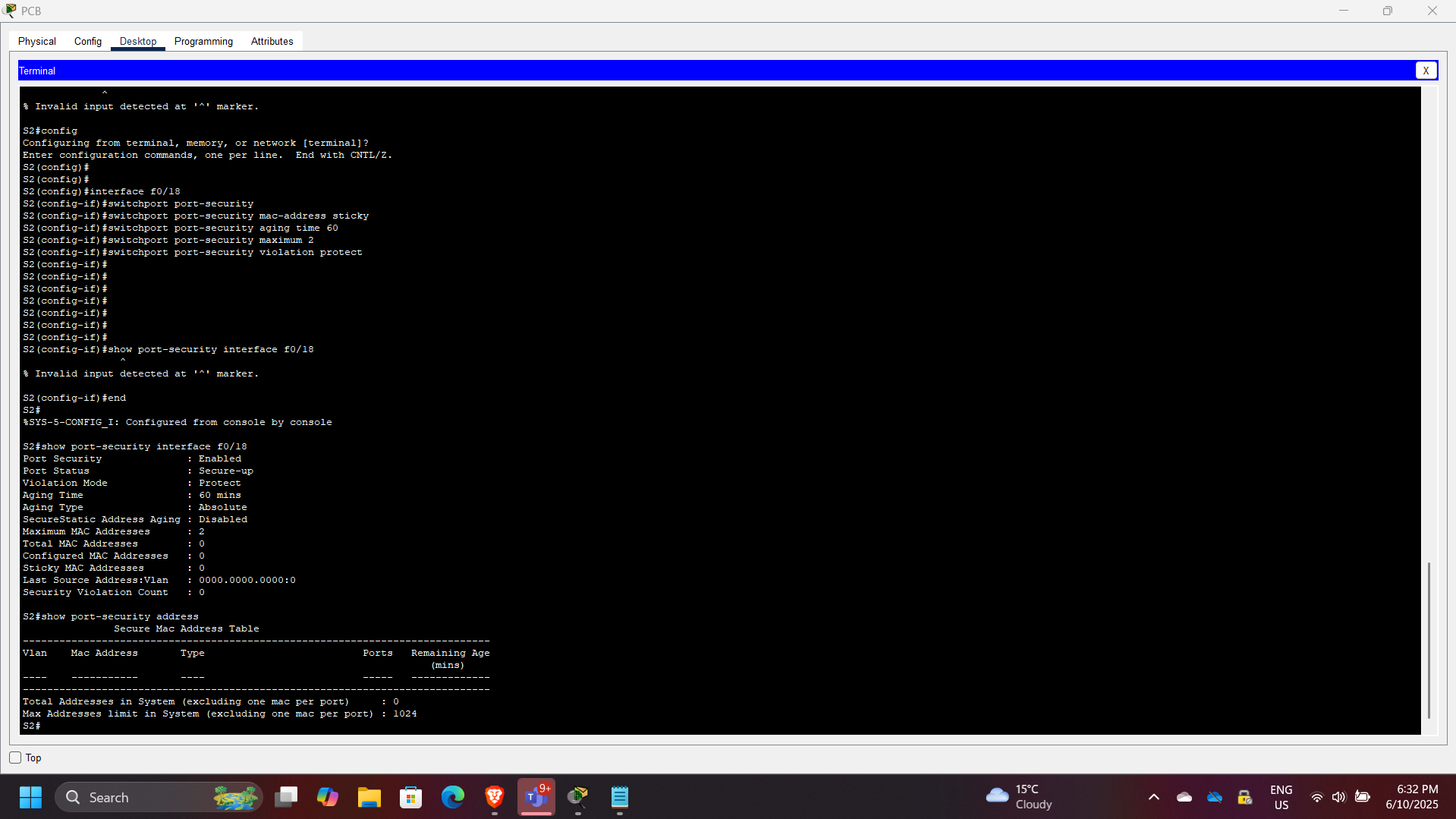

Port Security Implementation
Port security was implemented to restrict unauthorized devices from connecting to the network.
Example configuration:
switchport port-security
switchport port-security maximum 2
switchport port-security violation protect
switchport port-security mac-address sticky
Sticky MAC learning dynamically records MAC addresses connected to the port.

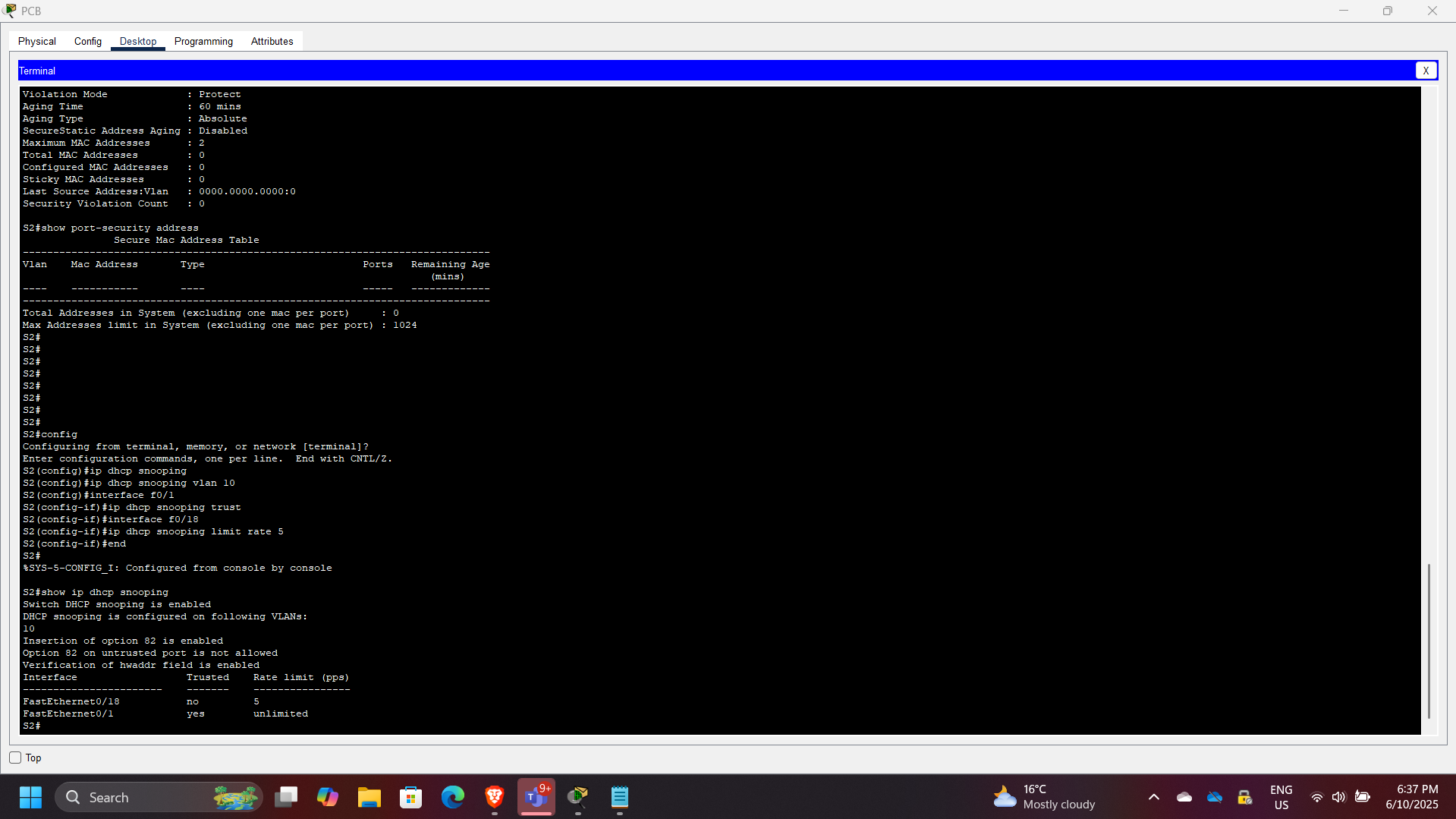

DHCP Snooping Configuration
DHCP snooping was implemented to prevent rogue DHCP servers from distributing malicious IP configurations.
Example configuration:
ip dhcp snooping
ip dhcp snooping vlan 10
Verification command:
show ip dhcp snooping binding

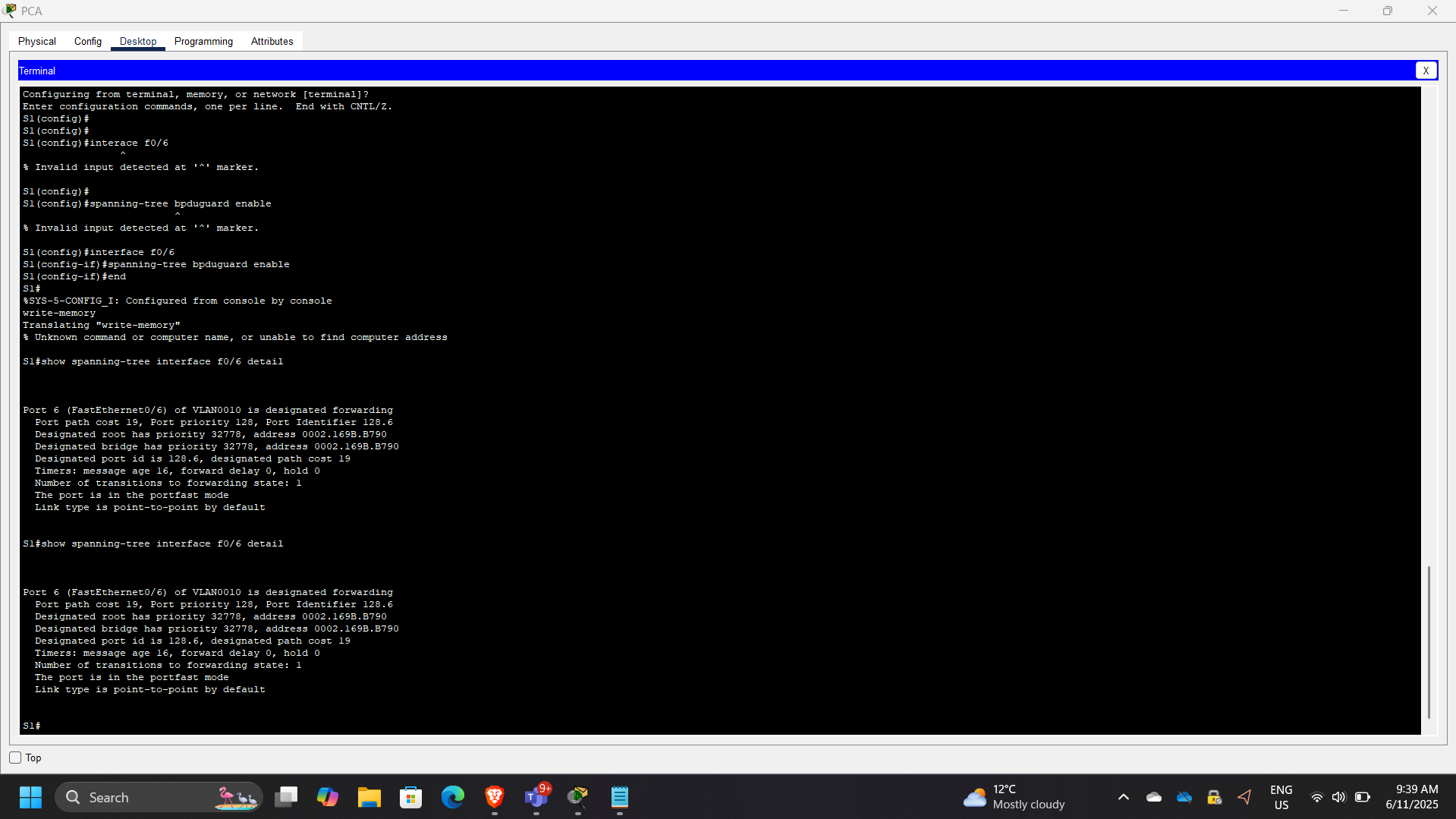

BPDU Guard and PortFast
To protect the spanning tree topology from malicious or accidental changes, the following security features were enabled.
PortFast
Allows immediate transition to forwarding state on edge ports.
BPDU Guard
Disables ports that receive unexpected BPDUs.
Example configuration:
spanning-tree portfast
spanning-tree bpduguard enable

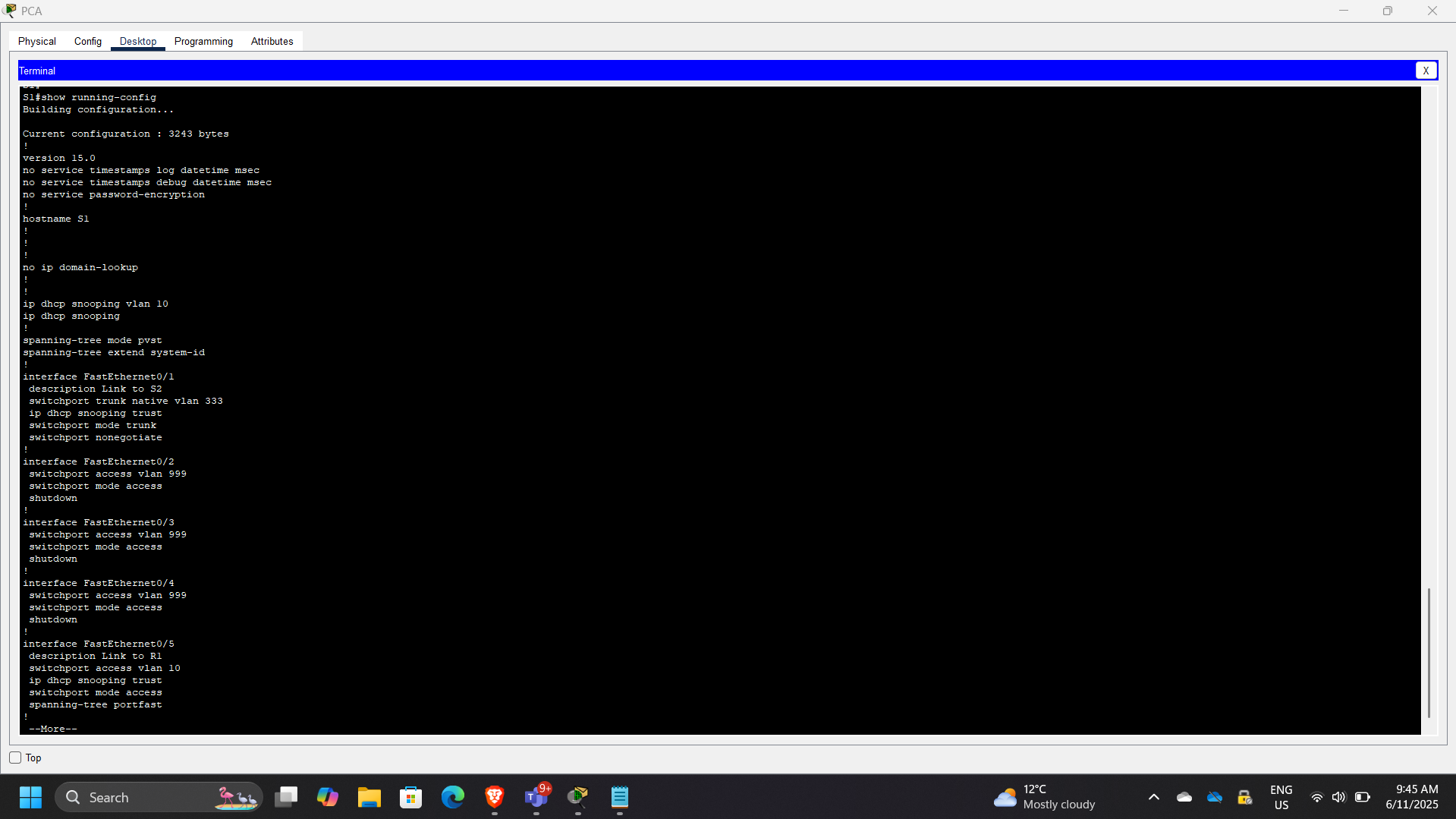

Securing Unused Ports
Unused switch ports were disabled to prevent unauthorized access.
Example configuration:
interface range f0/10-24
shutdown
This is a recommended security best practice in enterprise access-layer design.
Security Concepts Demonstrated
This project demonstrates multiple Layer 2 security mechanisms:
- VLAN segmentation
- Switch port security
- Sticky MAC address learning
- Rogue DHCP mitigation
- Spanning tree protection
- Secure trunk configuration
- Access-layer network hardening
These mechanisms are essential for securing enterprise networks at the access layer.
Enterprise Relevance
Layer 2 attacks remain a significant risk in enterprise environments. Misconfigured switches can allow attackers to perform:
- MAC flooding
- DHCP spoofing
- VLAN hopping
- Spanning tree manipulation
Proper switch hardening significantly reduces these risks and strengthens the security posture of campus and branch networks.
Conclusion
This project successfully demonstrated how VLAN segmentation and Layer 2 security controls can be implemented on Cisco switches to protect enterprise networks. By applying port security, DHCP snooping, BPDU guard, and secure trunk configurations, the network infrastructure was hardened against common access-layer attacks. These practices represent essential network security fundamentals used in real-world enterprise environments.
