Project: Serverless Inventory Intelligence on AWS

Timeline: September 2025
Role: Solutions Architect (Serverless & Event-Driven Design)
Focus: Event-Driven Automation & Serverless Architecture
Services: AWS Lambda, Amazon S3, Amazon DynamoDB, DynamoDB Streams, Amazon SNS, IAM, CloudWatch

Executive Summary

Designed and implemented a fully serverless, event-driven inventory management system using AWS managed services.

The architecture eliminates traditional servers and enables:

  • Automated data ingestion
  • Real-time inventory monitoring
  • Event-driven alerting
  • Near-zero operational overhead
  • Pay-per-use cost efficiency

The system processes uploaded inventory files, updates a DynamoDB table, and automatically sends alerts when stock levels reach zero — demonstrating modern cloud-native design principles.

Architecture Overview

The solution follows an event-driven serverless pattern:

  1. Inventory CSV file uploaded to Amazon S3
  2. S3 triggers Load-Inventory Lambda
  3. Data inserted into Amazon DynamoDB
  4. DynamoDB Streams trigger Check-Stock Lambda
  5. Out-of-stock events published to Amazon SNS
  6. Email notifications sent to subscribers

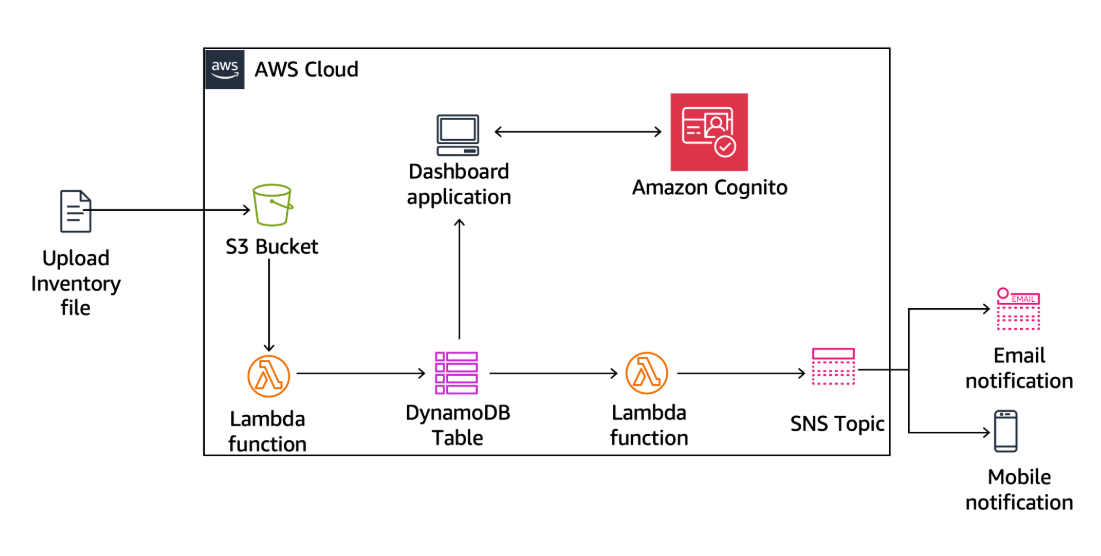

Serverless Architecture Diagram

Phase 1: Data Ingestion Automation

Creating the Load-Inventory Lambda Function

A Lambda function named Load-Inventory was created to parse CSV files uploaded to S3 and insert inventory data into DynamoDB.

Configuration:

  • Runtime: Python 3.x
  • Trigger: Amazon S3
  • IAM execution role with scoped permissions
  • Timeout optimized for CSV parsing workloads

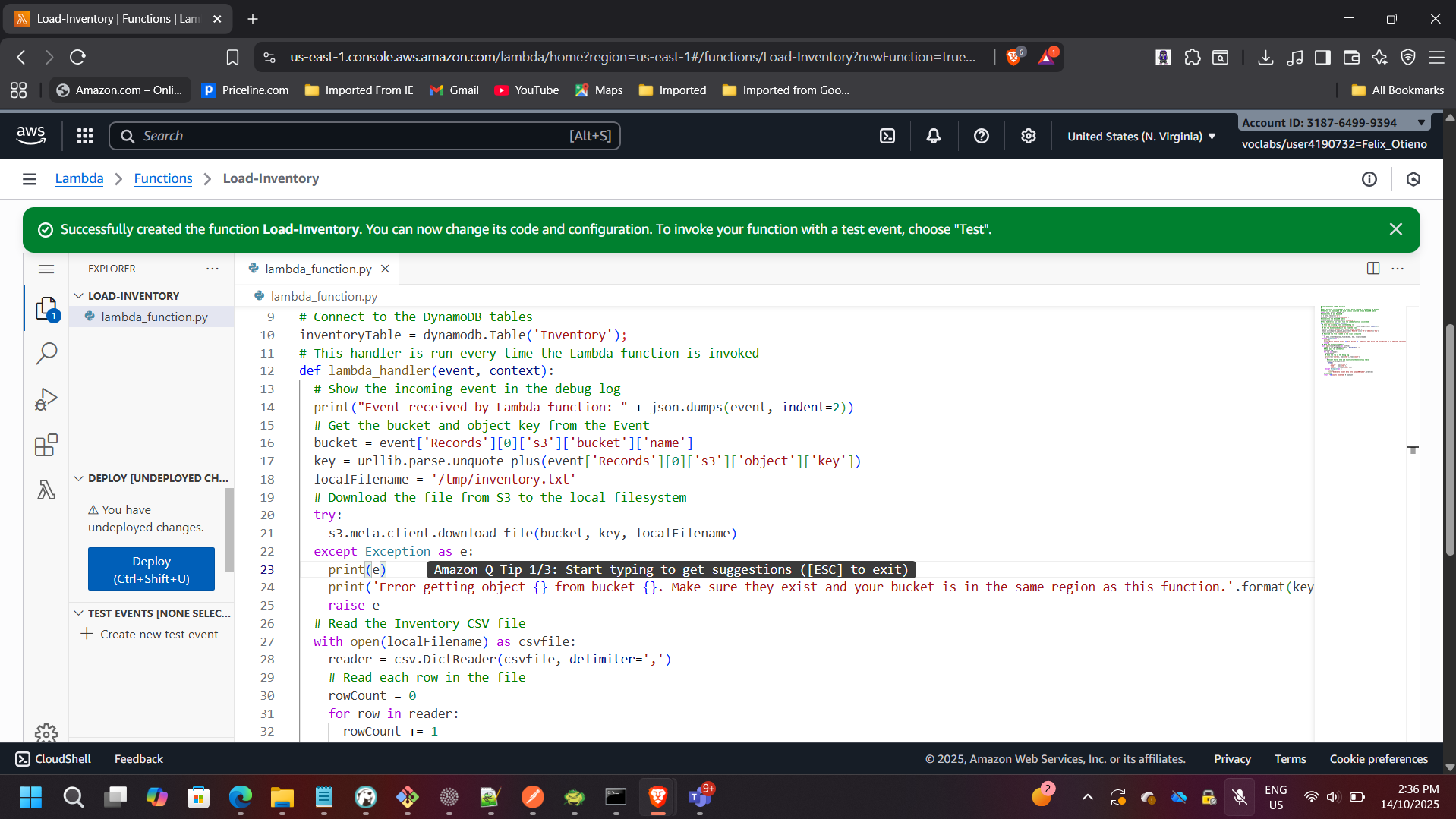

Lambda Code Editor – Load Inventory

IAM Role Configuration (Least Privilege)

The Lambda execution role was configured following least-privilege principles.

Permissions granted:

Load-Inventory Lambda

  • S3 Read access
  • DynamoDB PutItem access

Check-Stock Lambda

  • DynamoDB Stream Read access
  • SNS Publish permissions

This ensures secure service-to-service communication without over-permissioning.

Configuring Amazon S3 Event Trigger

The S3 bucket was configured to automatically invoke the Load-Inventory Lambda when new objects are created.

Event Type:

  • s3:ObjectCreated:*

S3 Event Trigger Configuration

This removes the need for polling or manual processing.

Testing Data Loading

Uploaded a sample inventory CSV file to the S3 bucket.

The Lambda function executed automatically and inserted parsed records into DynamoDB.

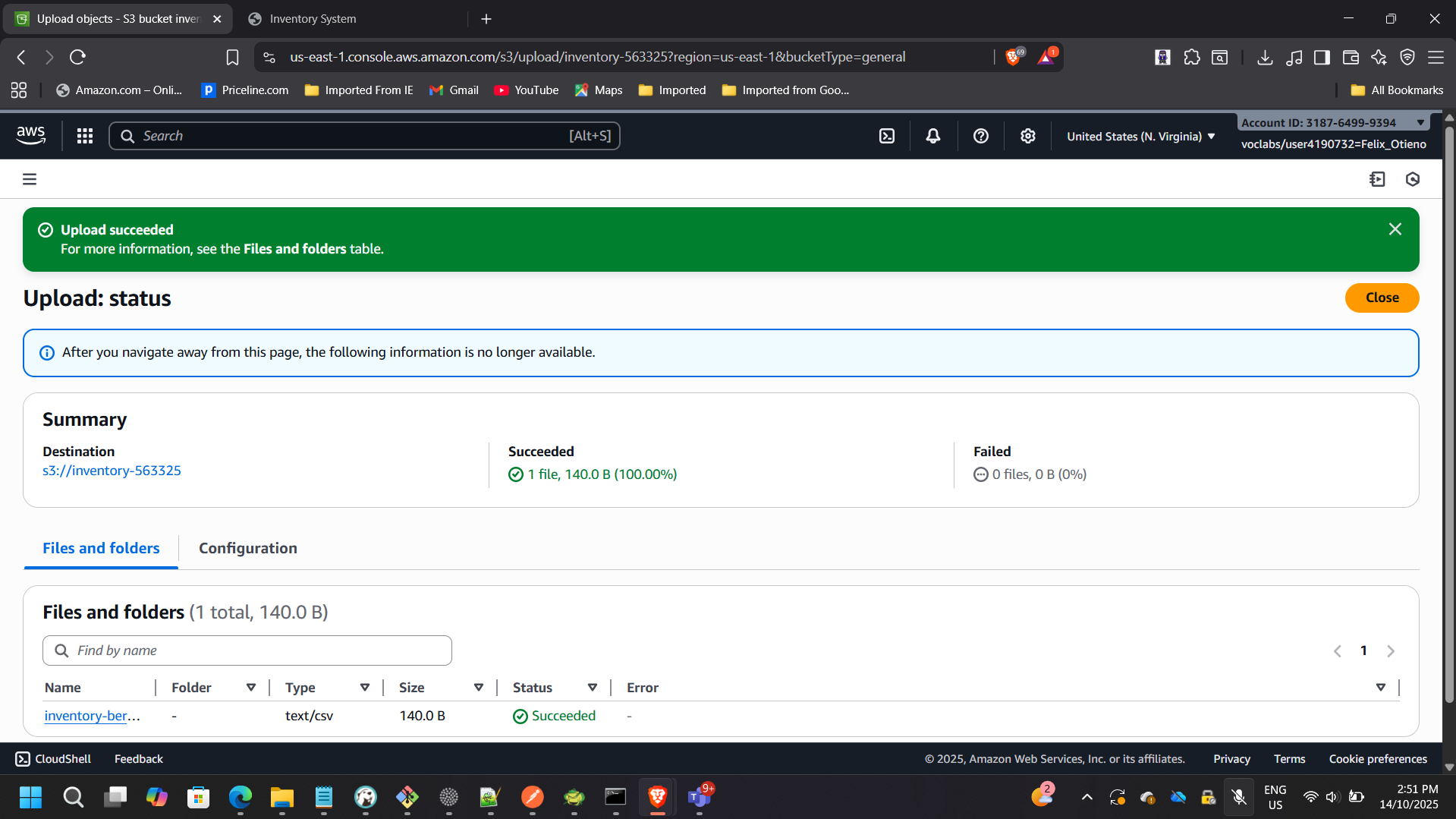

S3 File Upload Interface

Verified that the DynamoDB table populated successfully:

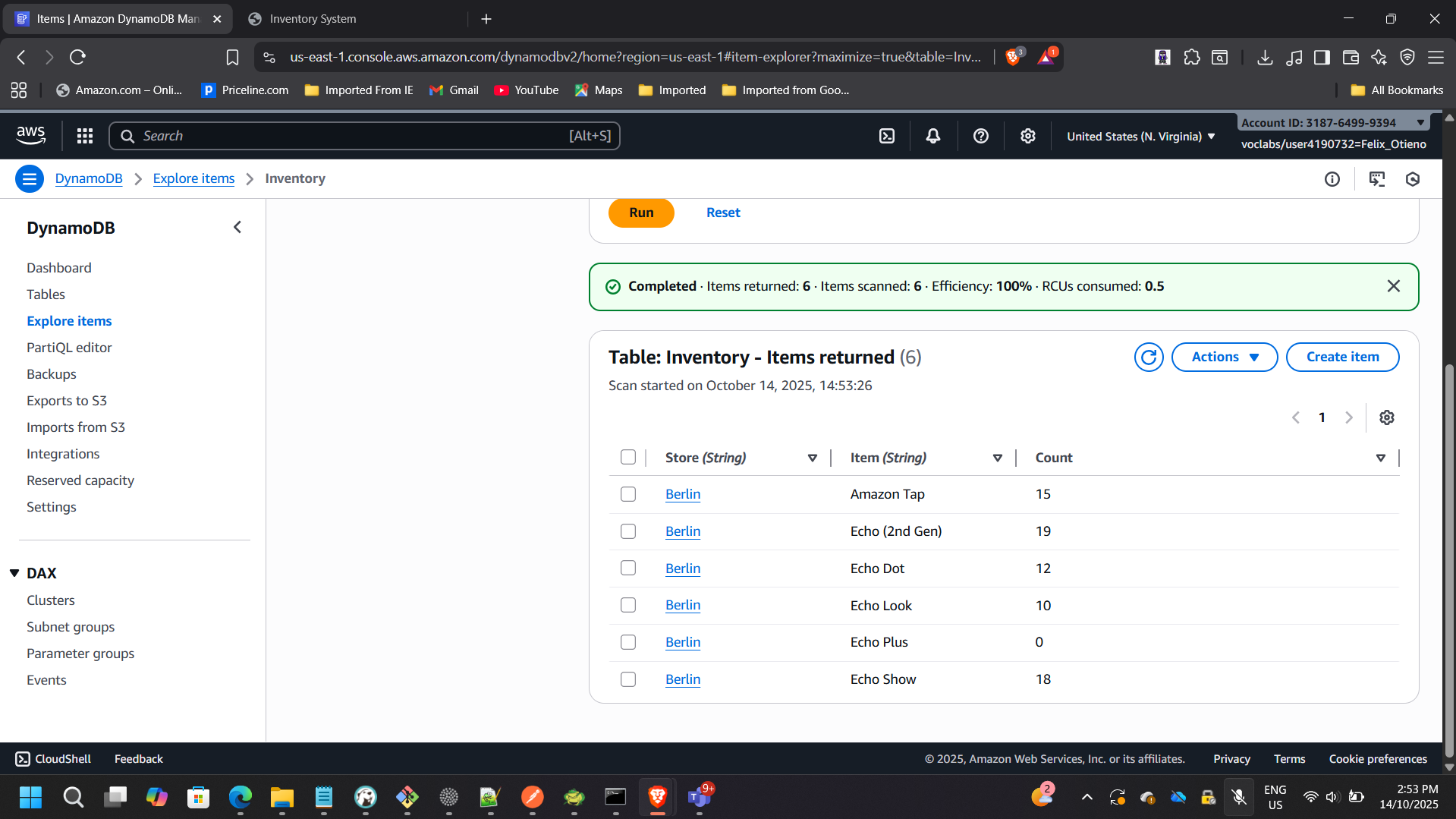

DynamoDB Table After Load

Phase 2: Real-Time Stock Monitoring

Enabling DynamoDB Streams

To detect inventory changes in real time, DynamoDB Streams were enabled.

Stream View Type:

  • NEW_AND_OLD_IMAGES

Streams allow change data capture without impacting application performance.

Creating the Check-Stock Lambda Function

A second Lambda function named Check-Stock was implemented.

Responsibilities:

  • Monitor DynamoDB Stream events
  • Detect when item quantity equals zero
  • Publish notification message to SNS

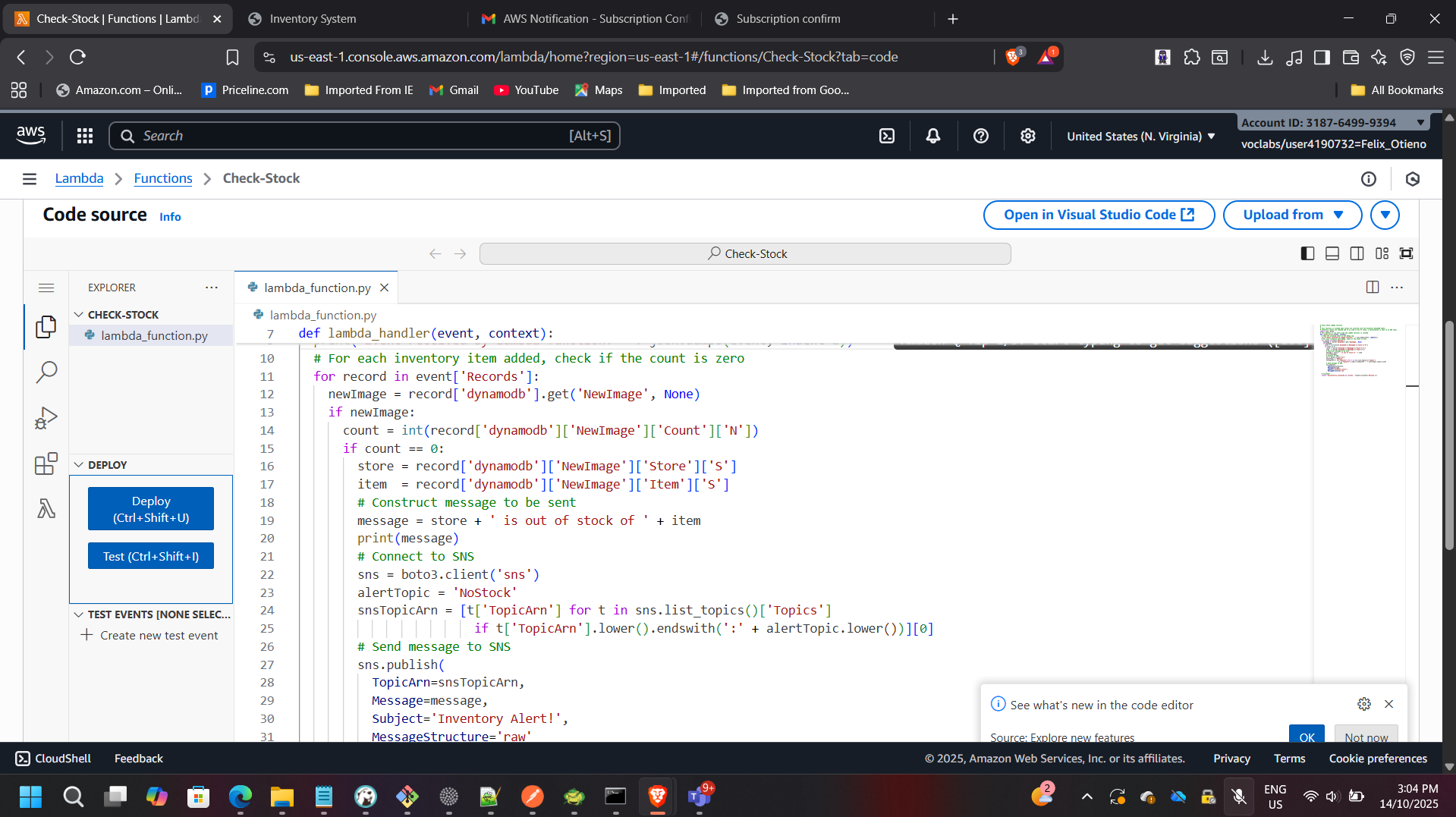

Check-Stock Lambda Code

Configuring DynamoDB Stream Trigger

The Check-Stock Lambda was attached to DynamoDB Streams using an event source mapping.

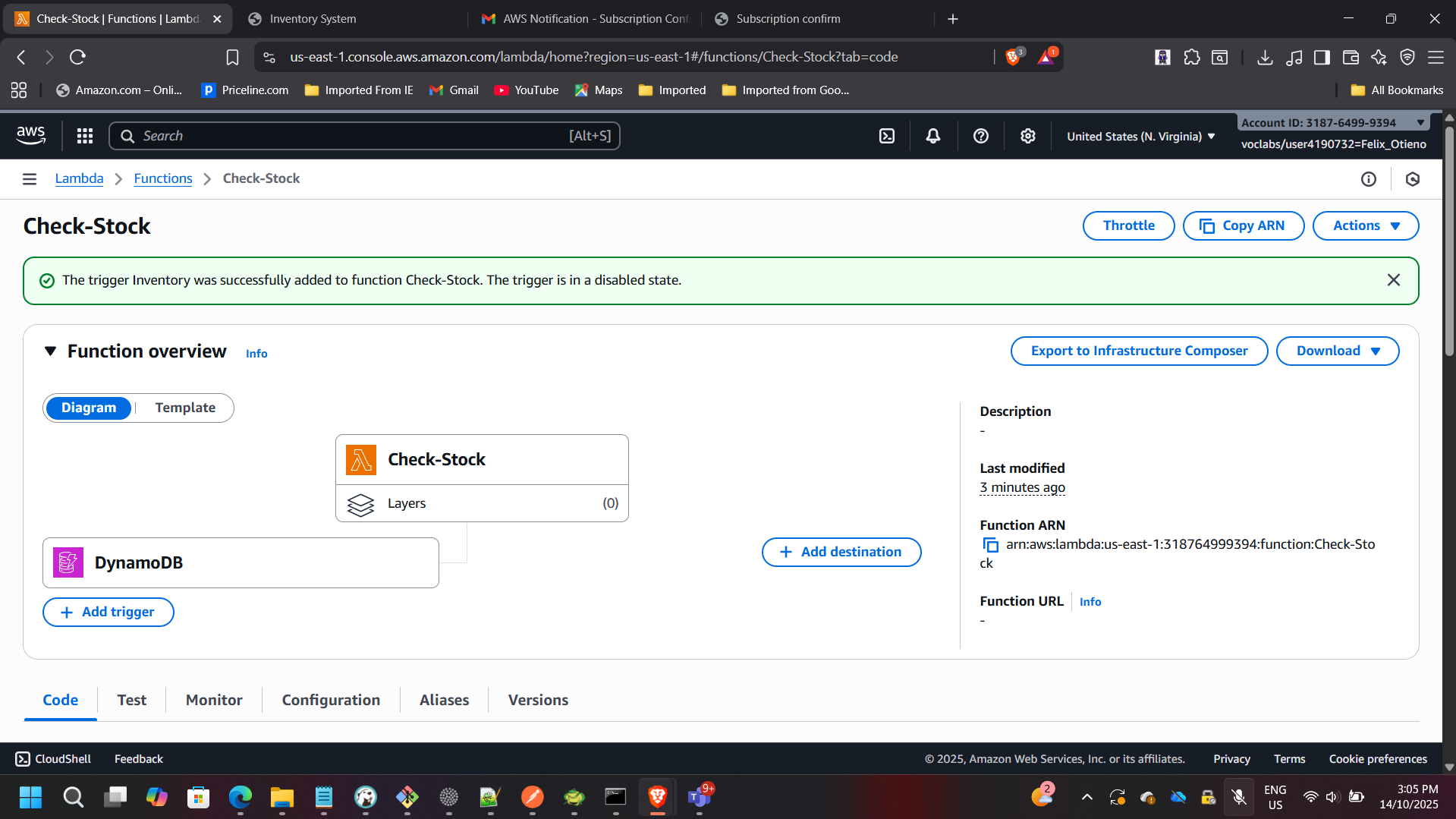

DynamoDB Stream Trigger Attachment

This ensures real-time evaluation of inventory changes.

Phase 3: Notification Automation

Creating the SNS Topic

An Amazon SNS topic named NoStock was created to handle alert distribution.

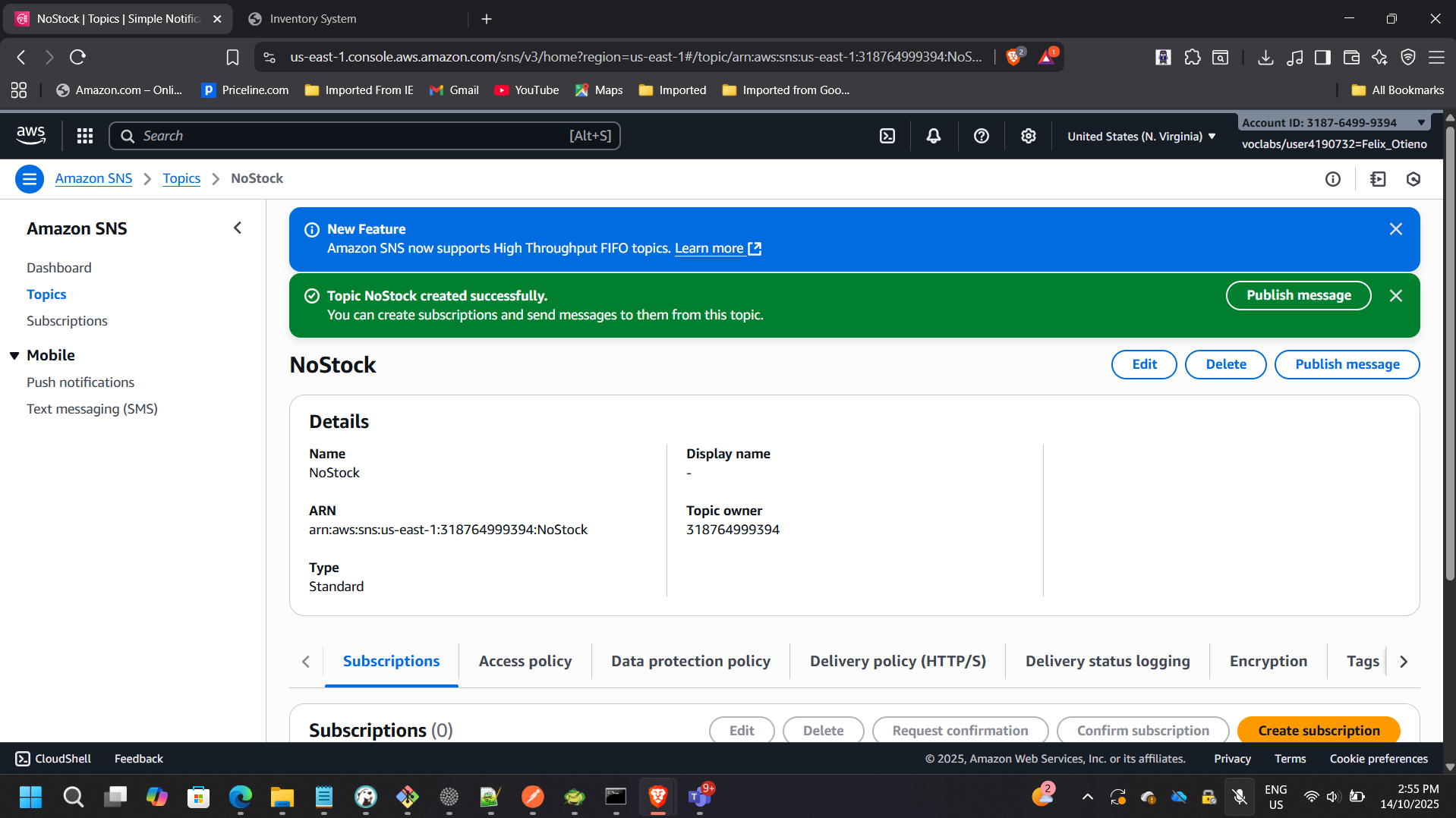

SNS Topic Configuration

Email Subscription Setup

An email endpoint subscription was configured and confirmed.

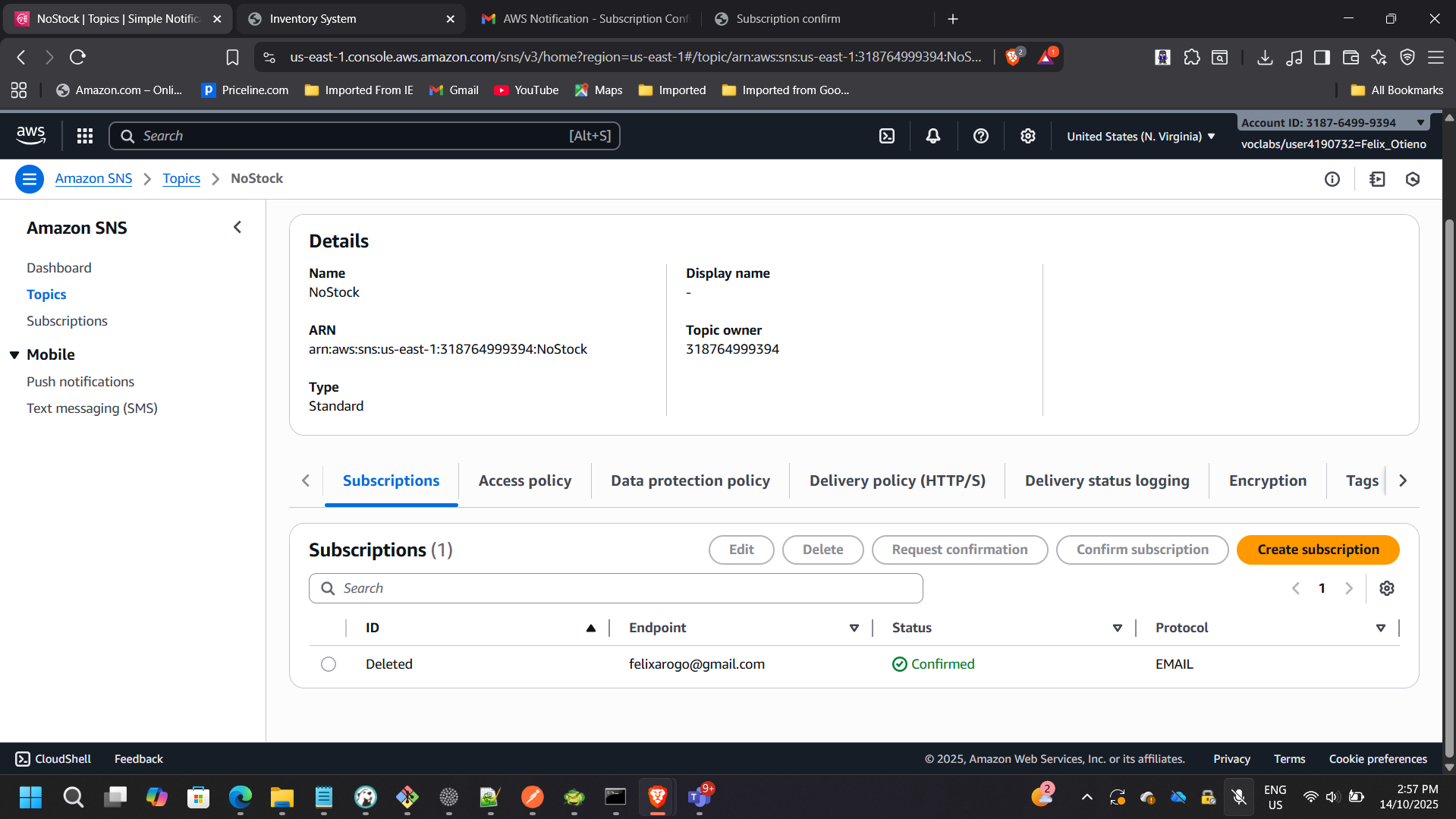

SNS Email Subscription

This enables automatic alert delivery when inventory reaches zero.

End-to-End Workflow Validation

To validate the full architecture:

  1. Uploaded a CSV file containing out-of-stock items
  2. Observed Lambda execution via CloudWatch
  3. Verified DynamoDB update
  4. Confirmed SNS email notification delivery

Inventory State Transition

DynamoDB Out-of-Stock State

Email Notification Received

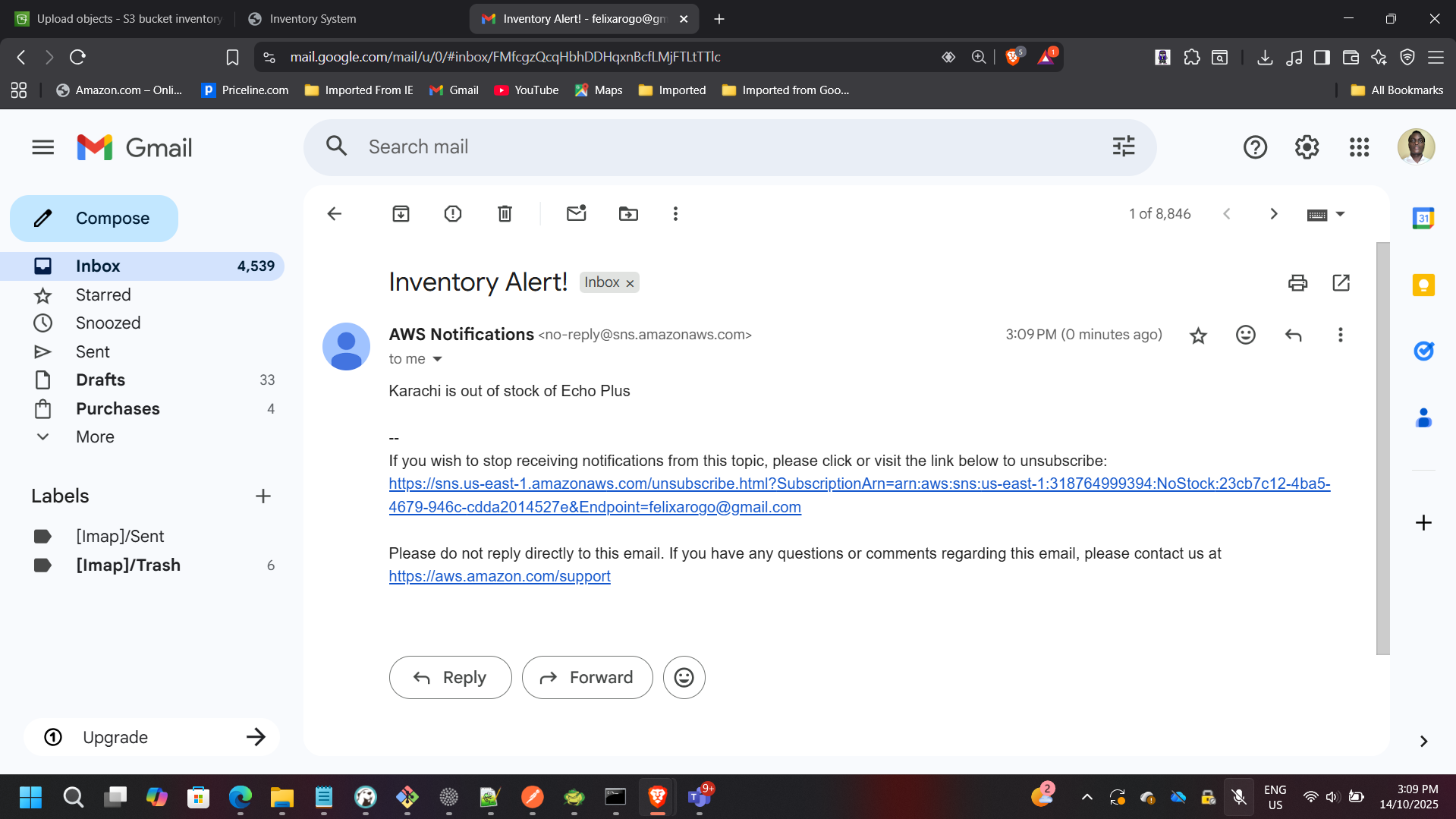

Out-of-Stock Email Notification

Architectural Benefits Achieved

Event-Driven Automation

No manual intervention required once deployed.

Scalability

Lambda scales automatically based on file upload volume.

Fault Isolation

Failures in notification logic do not impact ingestion.

Cost Optimization

No idle compute resources — pure pay-per-use model.

Operational Simplicity

Fully managed AWS services reduce maintenance overhead.

Architectural Impact

This project demonstrates:

  • Serverless system design
  • Event-driven architecture patterns
  • IAM least-privilege configuration
  • Real-time stream processing
  • Cross-service AWS integration
  • Observability using CloudWatch
  • Secure notification workflows

The solution reflects production-grade serverless design patterns aligned with modern enterprise cloud architecture practices.
