Project: Hybrid Storage and Data Migration with AWS Storage Gateway (S3 File Gateway)

Timeline: October 2025
Role: Solutions Architect & Cloud Engineer
Skills: AWS Storage Gateway, Amazon S3, Cross-Region Replication (CRR), IAM, NFS, EC2, Lifecycle Policies

Project Summary

Designed and implemented a hybrid cloud storage workflow using AWS Storage Gateway (S3 File Gateway) to simulate on-premises file storage and migrate data into Amazon S3 using an NFS file share. Enabled Cross-Region Replication (CRR) between us-east-2 (Ohio) and us-west-2 (Oregon) to provide disaster recovery and multi-region redundancy. Implemented S3 lifecycle policies to support storage management and cost optimization.

Objectives

  • Deploy and activate an S3 File Gateway on Amazon EC2.
  • Create primary and secondary S3 buckets in separate Regions.
  • Enable S3 Cross-Region Replication (CRR).
  • Mount the NFS file share on a Linux instance.
  • Migrate on-premises data into Amazon S3.
  • Validate end-to-end replication and hybrid data flow.

Implementation & Highlights

1. Reviewed the Architecture

  • Simulated an on-premises Linux environment.
  • Deployed an S3 File Gateway appliance.
  • Established NFS connectivity between Linux server and S3.
  • Designed replication between Ohio (primary) and Oregon (DR region).

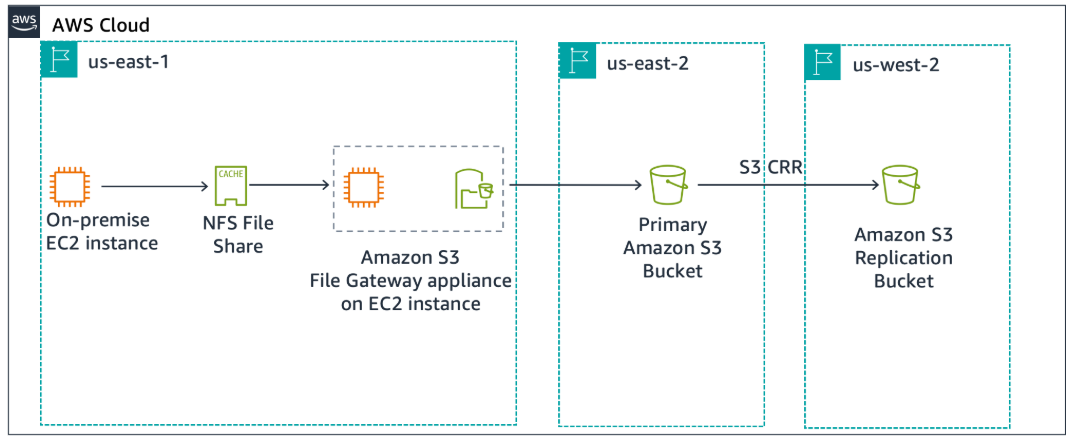

Architecture Diagram

2. Created Primary and Secondary S3 Buckets

Primary (Source) Bucket

  • Region: us-east-2 (Ohio)
  • Versioning enabled

Secondary (Destination) Bucket

  • Region: us-west-2 (Oregon)
  • Versioning enabled

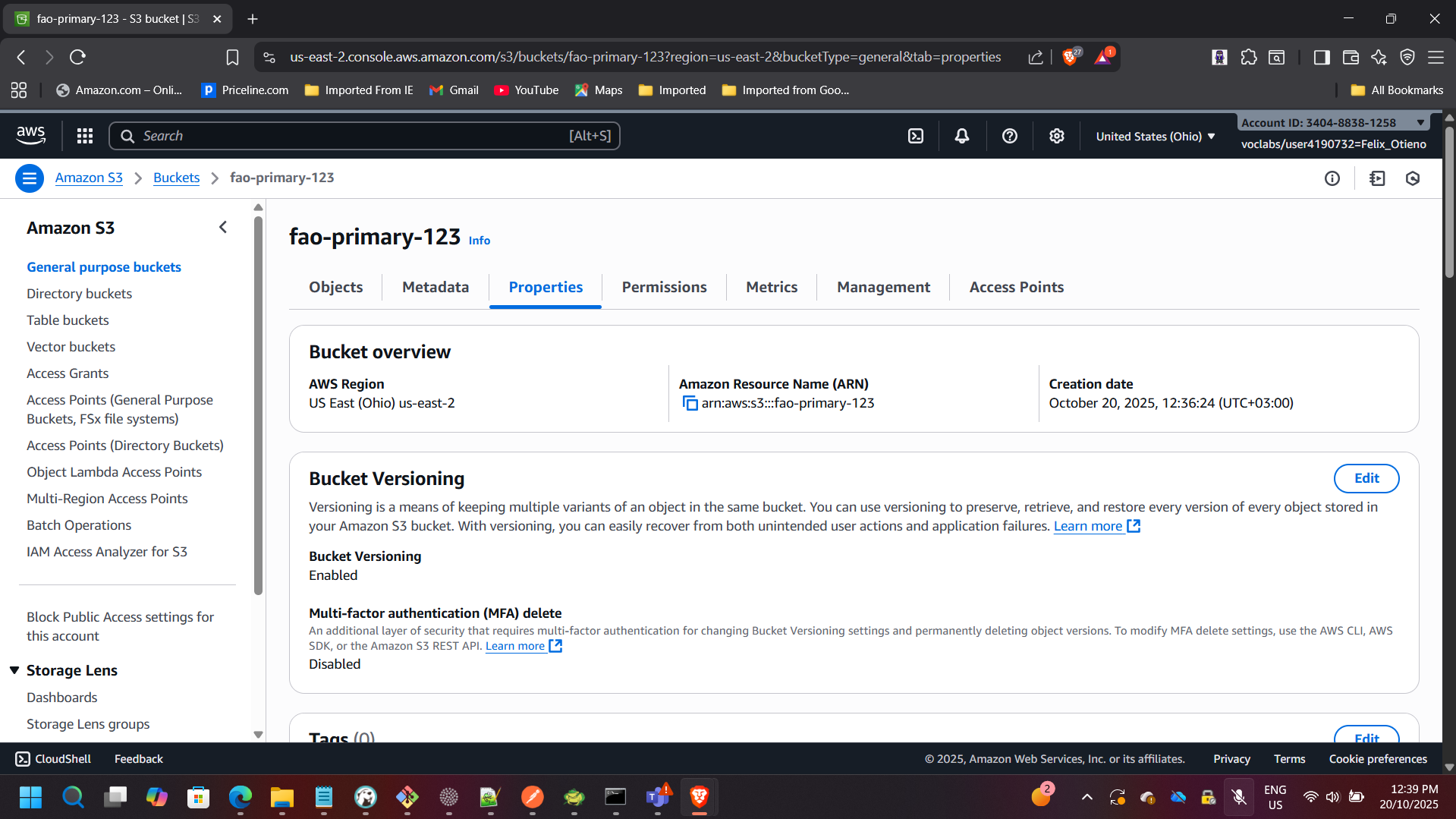

Primary Bucket

Bucket List

3. Enabled Cross-Region Replication (CRR)

  • Created replication rule: crr-full-bucket
  • Applied rule to all objects
  • Selected Oregon bucket as destination
  • Assigned IAM replication role
  • Uploaded test file and confirmed replication

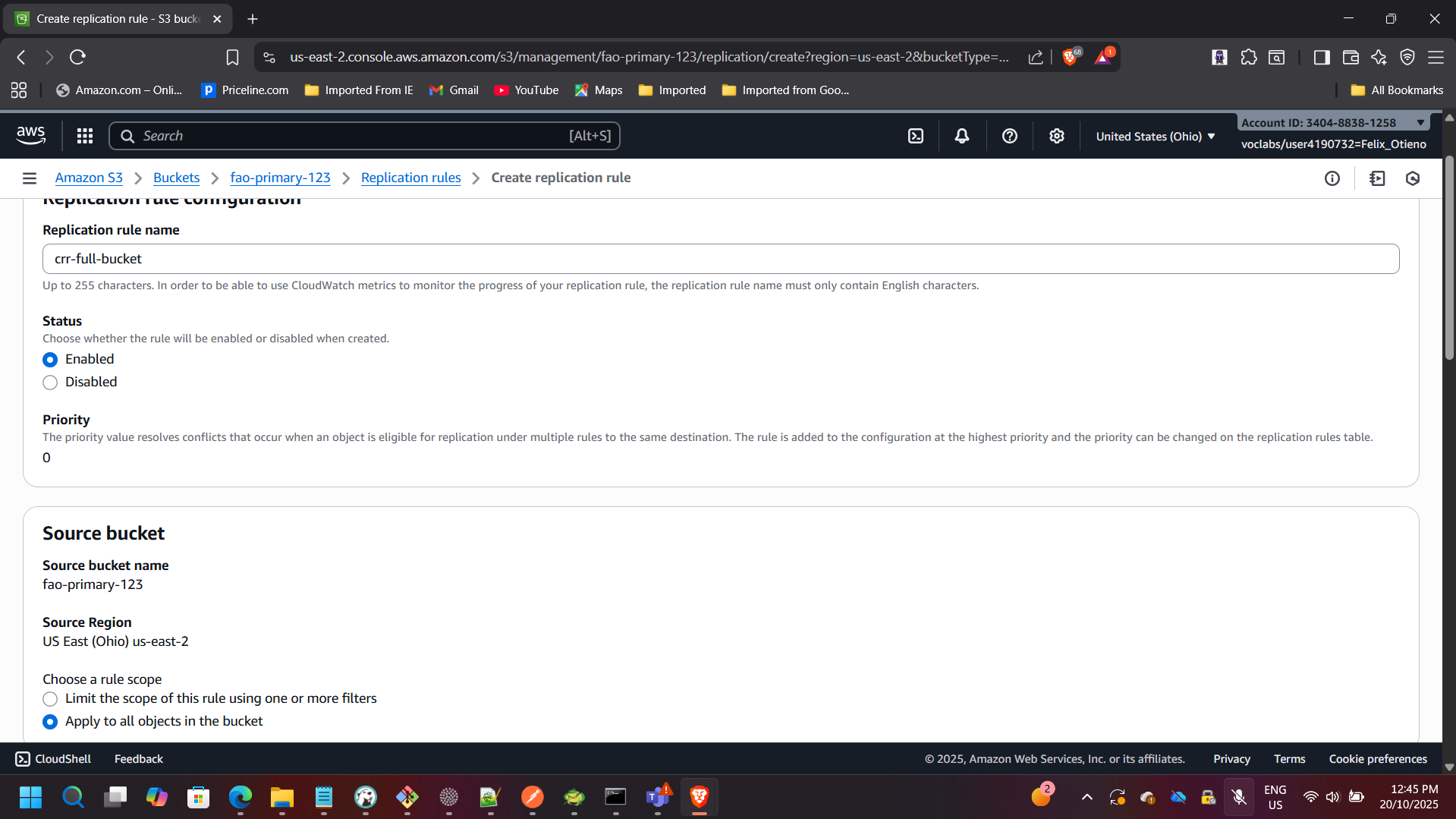

CRR Rule

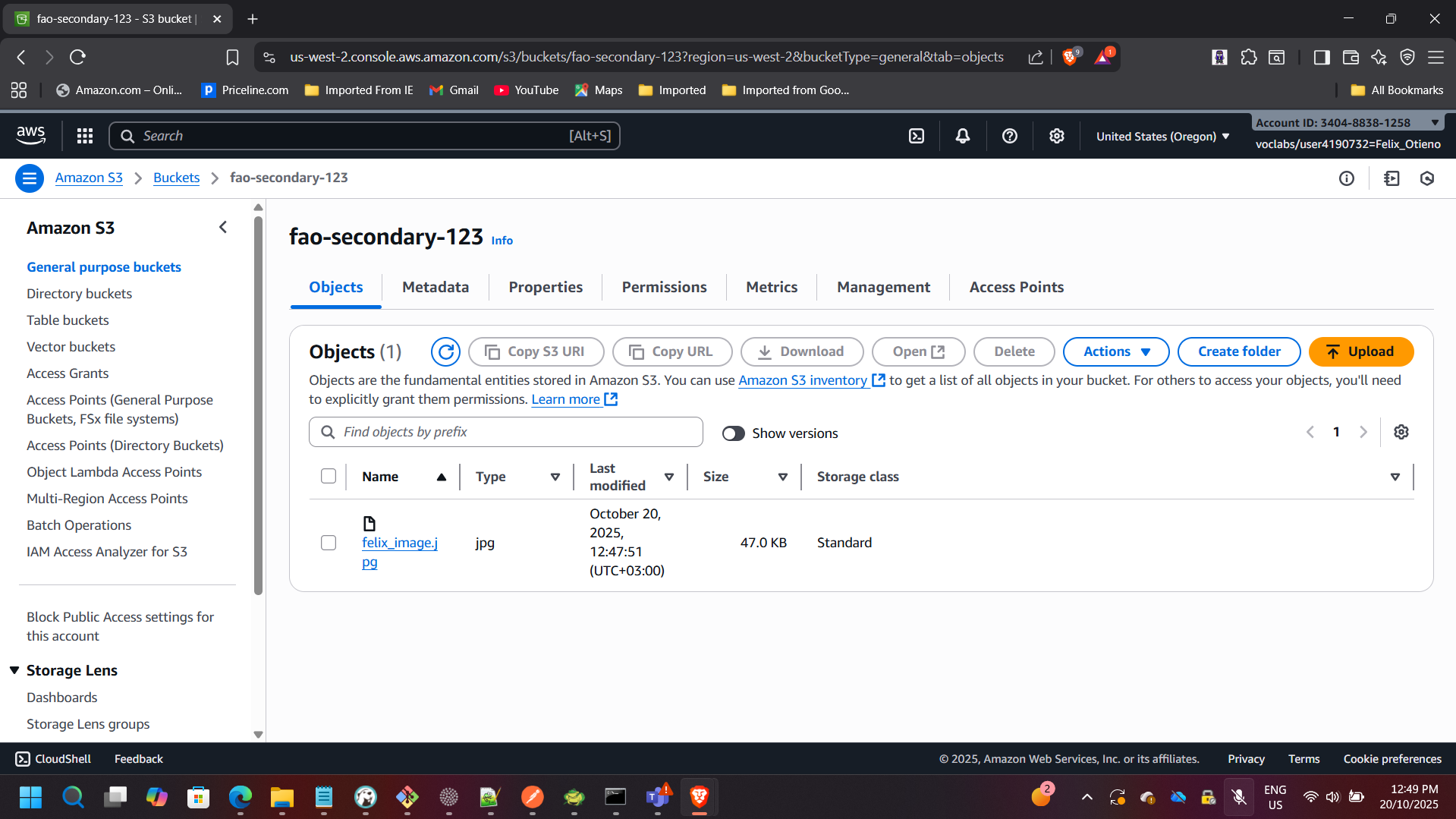

Replication Verified

4. Configured S3 File Gateway and Created an NFS File Share

  • Gateway Type: Amazon S3 File Gateway
  • Host Platform: Amazon EC2
  • Instance Type: t2.xlarge
  • Cache Storage: 150 GiB
  • VPC/Subnet: On-Prem-VPC / On-Prem-Subnet
  • Security Groups: FileGatewayAccess, OnPremSshAccess

Activated the gateway and confirmed status changed to Running.

Created an NFS file share:

  • Linked to primary (Ohio) bucket
  • Storage class: S3 Standard
  • IAM role configured

Gateway Running

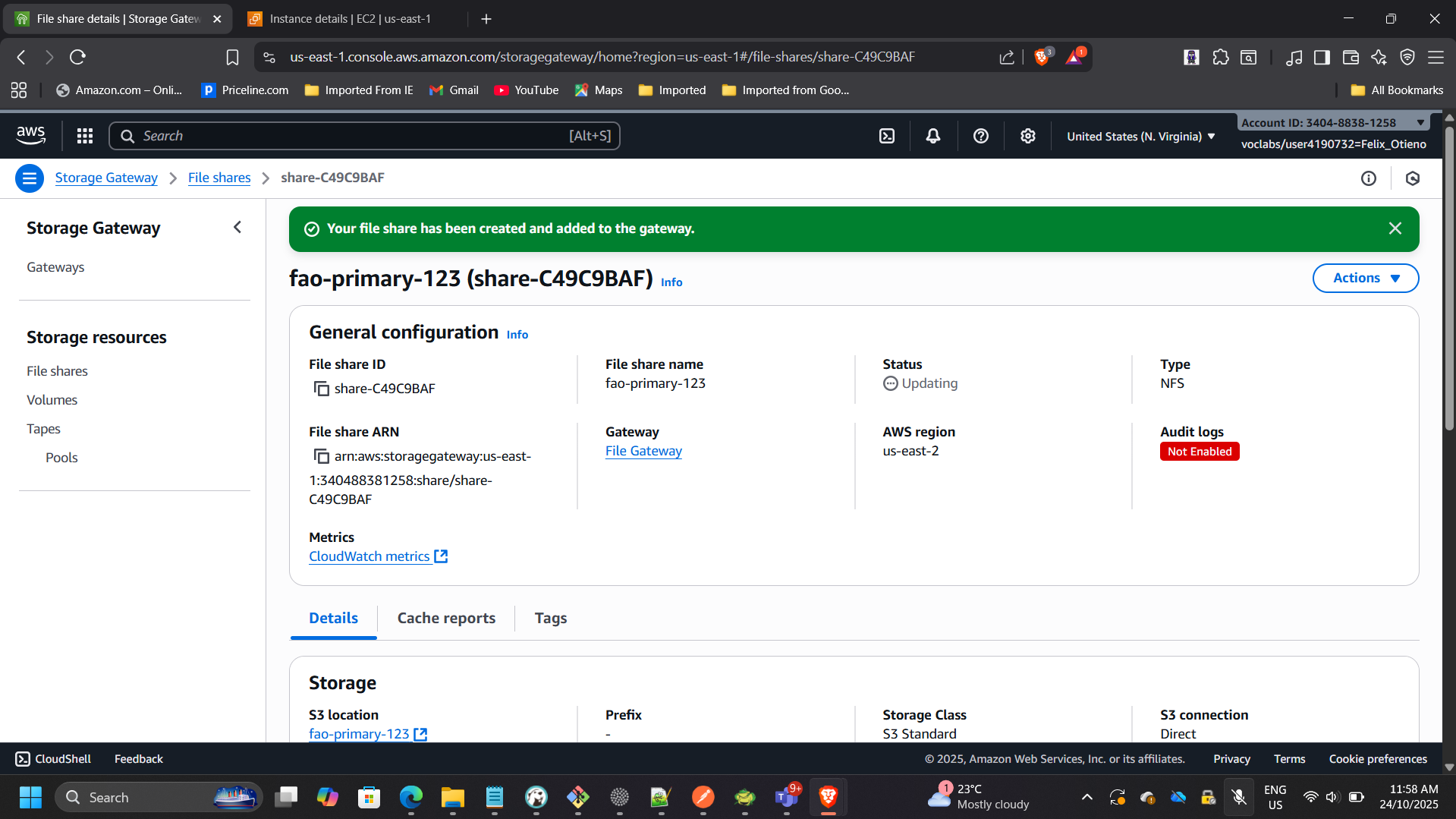

File Share Summary

Example NFS mount command:

sudo mount -t nfs -o nolock,hard 10.10.1.135:/fao-primary-123 /mnt/nfs/s3

5. Mounted the File Share and Migrated Data

Verified source data:

ls /media/data

Created mount directory:

sudo mkdir -p /mnt/nfs/s3

Mounted NFS share:

sudo mount -t nfs -o nolock,hard 10.10.1.33:/lab-nfs-bucket /mnt/nfs/s3

Verified mount:

df -h

Copied image files:

cp -v /media/data/*.png /mnt/nfs/s3

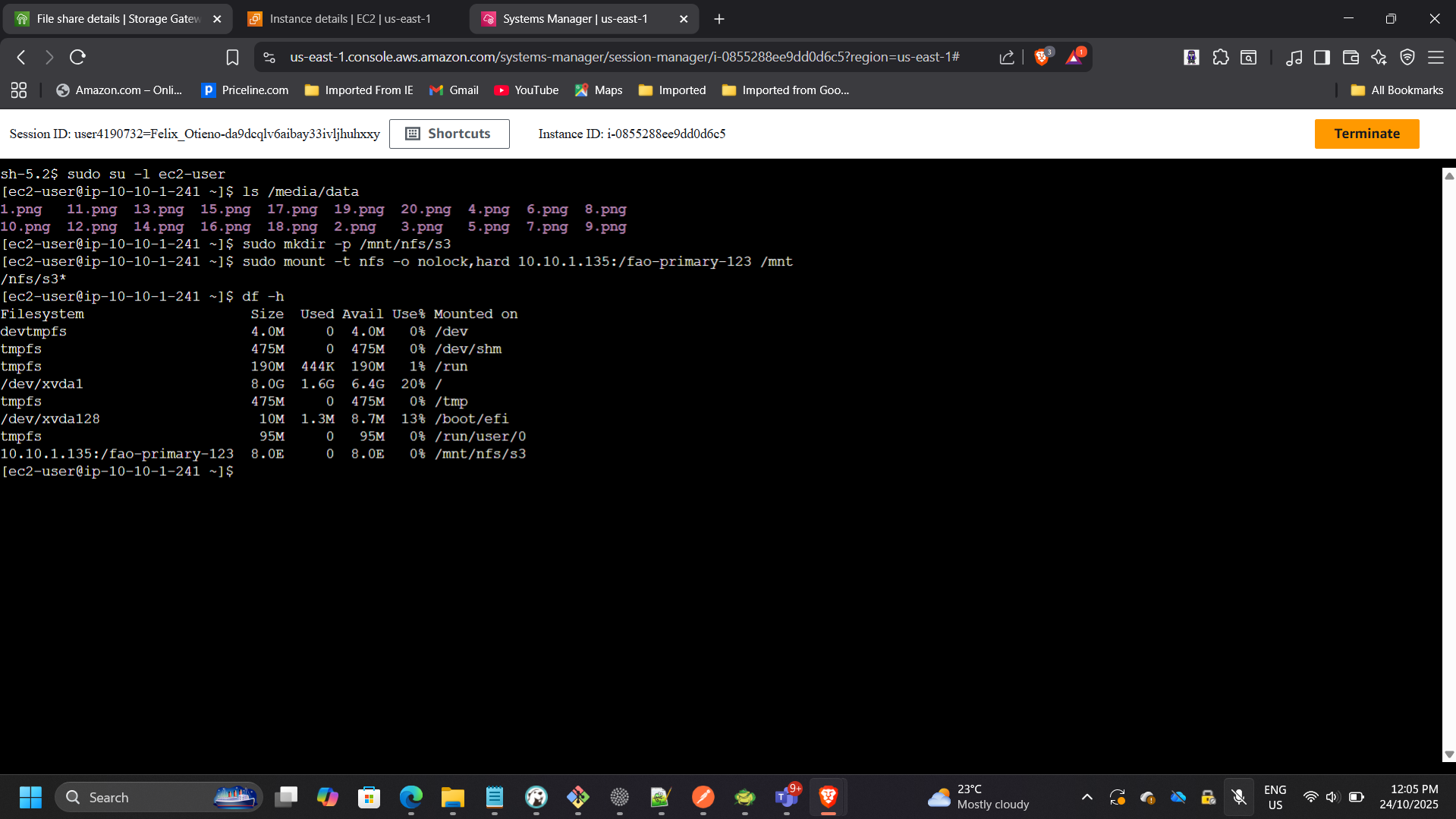

Mounted NFS Share

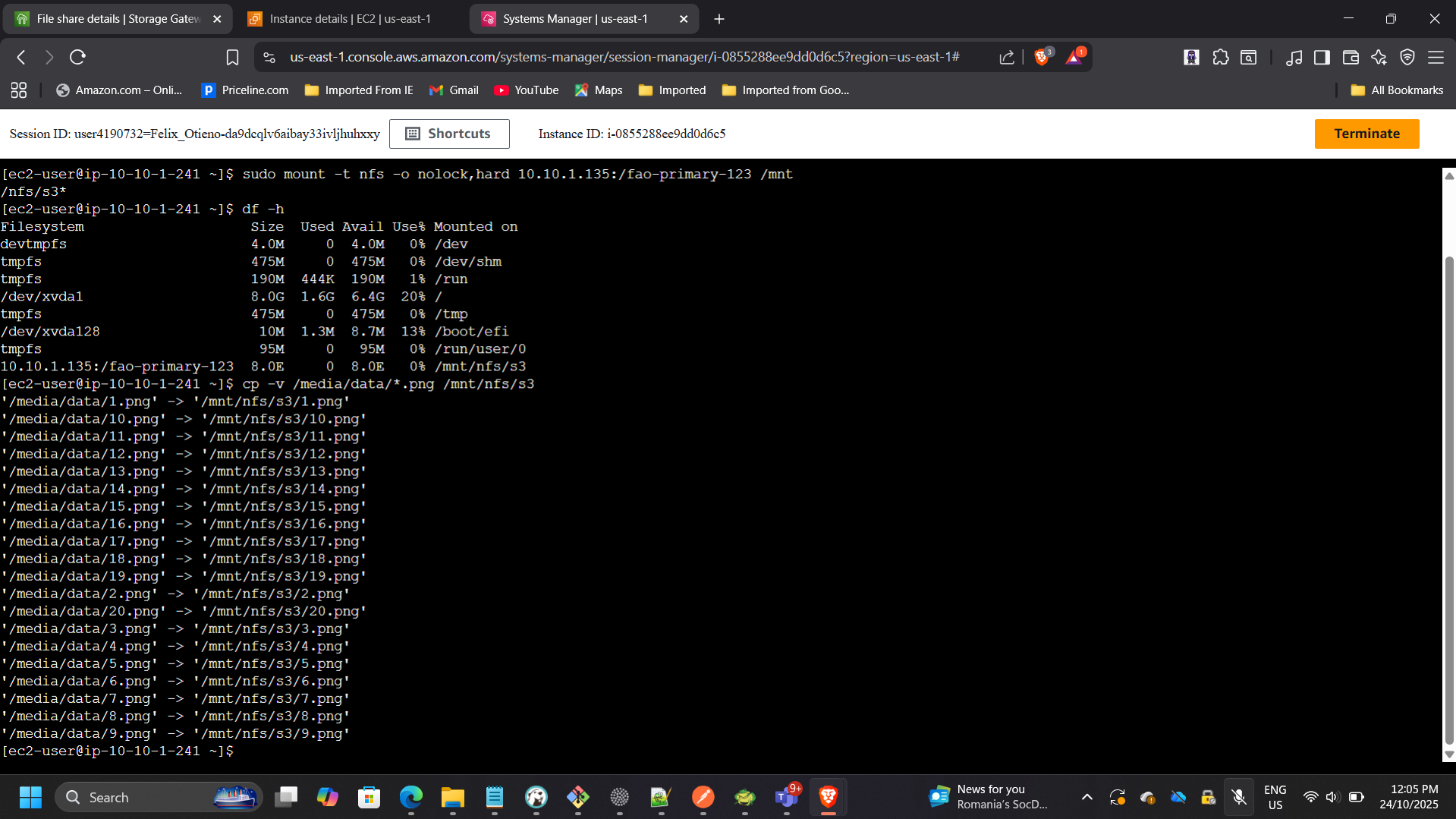

Copy Output

6. Verified Data Migration and Replication

  • Confirmed 20 image files present in source (Ohio) bucket.
  • Verified automatic replication in destination (Oregon) bucket.
  • Validated hybrid path: Linux → NFS → S3 (Ohio) → CRR → S3 (Oregon)

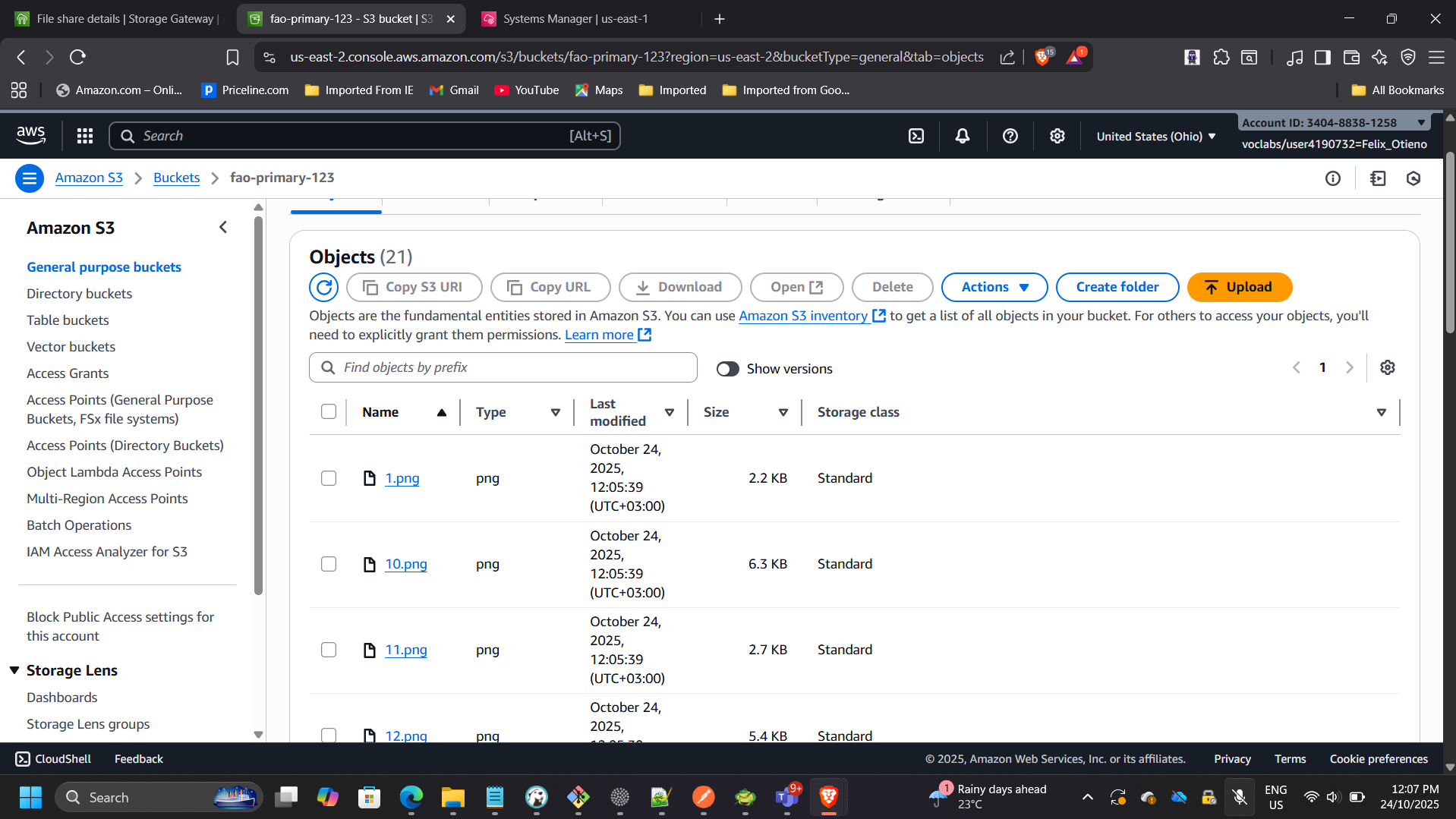

Source Images

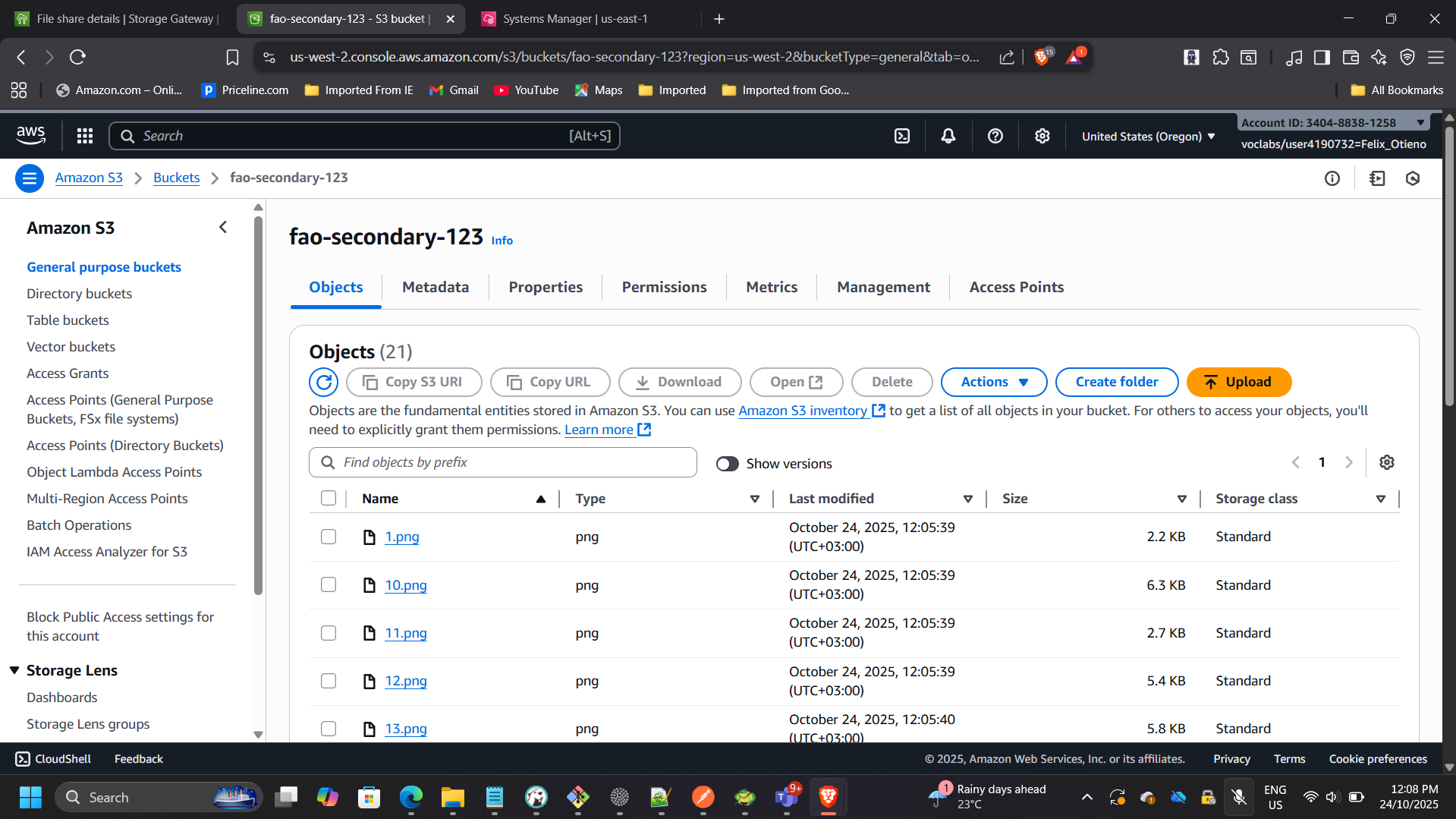

Destination Images

Outcome & Impact

  • Successfully implemented a hybrid storage integration model.
  • Demonstrated enterprise-style migration from on-prem file server to AWS.
  • Implemented multi-region disaster recovery via CRR.
  • Validated secure, scalable, and resilient data architecture.
