Felix Otieno Arogo

Cloud Solutions Architect AWS & GCP Security-focused engineer building scalable, secure cloud solutions

Managing Application Deployments on Google Kubernetes Engine

Timeline: December 2025
Role: Cloud Engineer / Site Reliability Engineer
Skills: Google Kubernetes Engine (GKE), Kubernetes, kubectl, Deployments, ReplicaSets, Services, Rolling Updates, Canary Deployments, Blue-Green Deployments, DevOps

Project Summary

This project focused on implementing production-grade deployment strategies for a containerized application on Google Kubernetes Engine (GKE). The work involved deploying a versioned application, exposing it via a Kubernetes Service, scaling workloads, and managing application updates using rolling updates, rollback, canary releases, and blue-green deployment patterns.

The implementation demonstrated how Kubernetes can be used not only for orchestration, but also as a release management platform, enabling safe, controlled, and low-risk application deployments in cloud-native environments.

Objectives

  • Deploy a containerized application on GKE using Kubernetes manifests
  • Use kubectl to inspect and manage Kubernetes resources
  • Scale application replicas dynamically
  • Perform rolling updates to a new application version
  • Pause and resume deployment rollouts
  • Roll back to a previous stable version
  • Implement a canary deployment for partial traffic testing
  • Implement a blue-green deployment for full traffic switching

Architecture Overview

The architecture consisted of:

  • A Google Kubernetes Engine (GKE) cluster hosting application workloads
  • A Kubernetes Deployment managing application replicas
  • A ReplicaSet ensuring desired pod availability
  • Multiple application versions:
    • Blue (stable) – version 1.0.0
    • Canary – partial rollout of version 2.0.0
    • Green – full deployment of version 2.0.0
  • A LoadBalancer Service exposing the application externally
  • Traffic routing controlled via labels and selectors

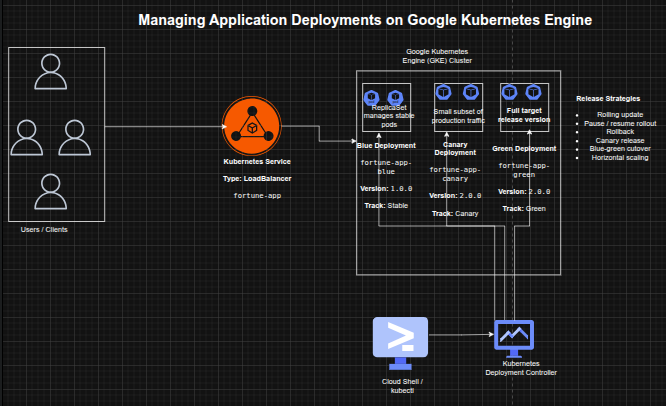

Architecture Diagram

Implementation & Highlights

1. GKE Cluster and Environment Setup

  • Created a 3-node GKE cluster using gcloud
  • Configured Cloud Shell and kubectl for cluster interaction
  • Loaded deployment and service manifests for the application

2. Initial Application Deployment

  • Deployed fortune-app version 1.0.0 using a Kubernetes Deployment
  • Configured 3 replicas for high availability
  • Verified Deployment, ReplicaSet, and Pods
  • Exposed the application via a LoadBalancer Service
  • Validated application response using the /version endpoint

3. Scaling Application Workloads

  • Scaled replicas from 3 → 5 → 3 using kubectl scale
  • Verified pod scaling behavior dynamically
  • Demonstrated horizontal scalability using Kubernetes Deployments

4. Rolling Update Deployment

  • Updated application image from v1.0.0 → v2.0.0
  • Triggered a rolling update with zero downtime
  • Observed:
    • gradual replacement of pods
    • creation of a new ReplicaSet
  • Reviewed rollout history for deployment tracking

5. Controlled Rollout (Pause & Resume)

  • Paused deployment rollout mid-update
  • Observed mixed application versions running simultaneously
  • Resumed rollout to complete update
  • Demonstrated operational control over live deployments

6. Rollback to Stable Version

  • Performed rollback using kubectl rollout undo
  • Reverted application back to version 1.0.0
  • Verified successful rollback through service responses
  • Demonstrated safe recovery from faulty deployments

7. Canary Deployment Implementation

  • Created a canary deployment for version 2.0.0
  • Used shared service selectors to distribute traffic
  • Verified:
    • majority of traffic served by stable version
    • small subset served by canary version
  • Demonstrated controlled production testing

8. Blue-Green Deployment Strategy

  • Created separate blue (v1.0.0) and green (v2.0.0) deployments
  • Updated service selector to switch traffic between versions
  • Verified:
    • instant traffic cutover
    • immediate rollback capability
  • Demonstrated zero-downtime full release strategy

Design Decisions

  • Used Kubernetes Deployments for declarative application management
  • Leveraged ReplicaSets for automatic scaling and availability
  • Used Services with label selectors to control traffic routing
  • Applied multiple deployment strategies to simulate real-world release scenarios
  • Chose GKE for managed Kubernetes infrastructure and scalability

Results & Impact

  • Successfully implemented multiple production deployment strategies on GKE
  • Demonstrated practical use of:
    • rolling updates
    • rollback mechanisms
    • canary testing
    • blue-green deployments
  • Improved understanding of:
    • release safety
    • deployment control
    • traffic management
  • Built a strong foundation for cloud-native DevOps and SRE practices

Tools & Technologies Used

  • Google Kubernetes Engine (GKE) – Managed Kubernetes platform
  • Kubernetes – Container orchestration
  • kubectl – Cluster management CLI
  • Deployments & ReplicaSets – Workload management
  • Services (LoadBalancer) – External access and traffic routing
  • Containerized Application (fortune-app) – Sample workload

Outcome

This project demonstrates the ability to implement advanced Kubernetes deployment strategies in a cloud environment. It highlights practical skills in release engineering, workload scaling, traffic management, and failure recovery, which are critical for cloud engineering, DevOps, and site reliability roles.
