Multi-VPC Network Segmentation and Multi-NIC Appliance Design on GCP

Timeline: December 2025
Role: Cloud Network Engineer / Cloud Architect
Skills: Google Cloud VPC, Subnets, Firewall Rules, Compute Engine, Multi-NIC VM Design, Routing, Internal DNS, Network Segmentation

Project Summary

This project focused on designing and validating a segmented multi-VPC network architecture on Google Cloud Platform (GCP). The implementation used multiple custom-mode VPC networks, dedicated subnets, targeted firewall rules, and Compute Engine virtual machines to demonstrate how network isolation affects connectivity across environments.

The project also extended the design by deploying a multi-network-interface appliance VM connected to multiple VPCs, showing how a single instance can participate in separate network domains while still being governed by routing behavior and interface-specific connectivity rules. This lab covered custom VPC creation, firewall configuration, connectivity testing, and multi-NIC routing behavior. :contentReference[oaicite:0]{index=0}

Objectives

  • Create custom-mode VPC networks and subnets
  • Configure firewall rules for SSH, RDP, and ICMP access
  • Deploy Compute Engine instances into separate VPC environments
  • Validate external and internal connectivity behavior across VPCs
  • Design and deploy a VM with multiple network interfaces
  • Analyze routing behavior and interface-level reachability

Architecture Overview

The architecture consisted of:

  • An existing mynetwork VPC with two pre-created VM instances
  • A newly created managementnet custom VPC with:
    • managementsubnet-1 (10.130.0.0/20)
    • firewall rules allowing ICMP, SSH, and RDP
  • A newly created privatenet custom VPC with:
    • privatesubnet-1 (172.16.0.0/24)
    • privatesubnet-2 (172.20.0.0/20)
    • firewall rules allowing ICMP, SSH, and RDP
  • VM instances deployed in the separate VPCs:
    • managementnet-vm-1
    • privatenet-vm-1
    • existing mynet-vm-1
    • existing mynet-vm-2
  • A multi-NIC appliance VM named vm-appliance attached to:
    • privatesubnet-1
    • managementsubnet-1
    • mynetwork
  • Connectivity and routing tests validating public reachability, private network isolation, and multi-interface routing behavior. :contentReference[oaicite:1]{index=1}

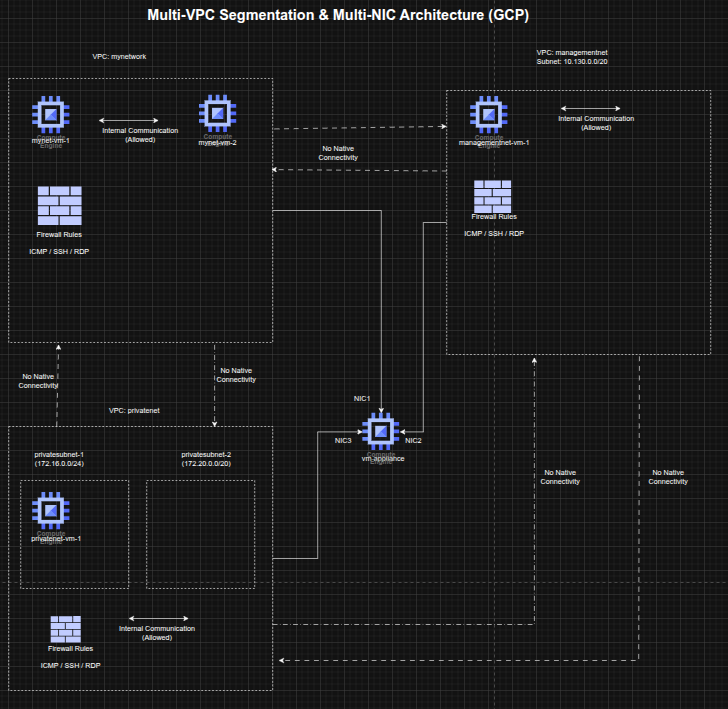

Architecture Diagram

Implementation & Highlights

1. Custom VPC Network Creation

  • Created two custom-mode VPC networks:
    • managementnet
    • privatenet
  • Provisioned dedicated subnets in different regions and CIDR ranges
  • Used custom-mode networking to explicitly control subnet creation instead of relying on automatically provisioned regional subnets. :contentReference[oaicite:2]{index=2}

2. Firewall Rule Design

  • Configured ingress firewall rules for both VPCs
  • Allowed:
    • ICMP
    • TCP 22 (SSH)
    • TCP 3389 (RDP)
  • Applied rules to support administration and connectivity testing across the segmented environments. :contentReference[oaicite:3]{index=3}

3. VM Deployment Across Isolated Networks

  • Created Compute Engine instances in the new VPCs:
    • managementnet-vm-1
    • privatenet-vm-1
  • Compared them with the pre-existing instances in mynetwork
  • Established a multi-network test environment spanning separate VPC boundaries and subnets. :contentReference[oaicite:4]{index=4}

4. Connectivity Validation Across VPCs

  • Tested external IP reachability from one instance to others
  • Confirmed that public connectivity depended on firewall rules rather than shared VPC membership
  • Tested internal IP connectivity
  • Verified that internal communication worked only between instances in the same VPC network and failed across isolated VPCs by default. :contentReference[oaicite:5]{index=5}

5. Multi-NIC Appliance Design

  • Created a VM named vm-appliance with three network interfaces
  • Connected the appliance directly to:
    • privatenet
    • managementnet
    • mynetwork
  • Demonstrated how a single VM can span multiple isolated network domains when attached through multiple NICs. :contentReference[oaicite:6]{index=6}

6. Route and Interface Analysis

  • Inspected interface configuration inside the appliance VM
  • Verified the presence of multiple interfaces and subnet-specific internal IP addresses
  • Examined routing behavior and confirmed:
    • directly connected subnets were reachable through their corresponding interfaces
    • the default route was associated with the primary interface
  • Observed that traffic to destinations outside directly connected subnets followed the default route, leading to expected connectivity limitations. :contentReference[oaicite:7]{index=7}

7. Internal DNS and Reachability Testing

  • Validated that instance name resolution worked within VPC scope using internal DNS
  • Confirmed that hostname-based reachability mapped to the primary interface of the destination VM
  • Used ping-based testing to illustrate successful and failed paths based on subnet routes and interface placement. :contentReference[oaicite:8]{index=8}

Design Decisions

  • Used custom-mode VPCs to maintain explicit control over subnet allocation and network boundaries
  • Applied network-level segmentation to demonstrate that private communication is isolated by VPC unless additional interconnect mechanisms are configured
  • Used a multi-NIC appliance pattern to simulate a bridging or inspection-style instance spanning multiple network domains
  • Preserved non-overlapping CIDR ranges to support multiple interfaces on the same VM without subnet conflicts
  • Analyzed route selection to understand how primary-interface default routing affects multi-homed workloads. :contentReference[oaicite:9]{index=9}

Results & Impact

  • Successfully designed and deployed a segmented multi-VPC environment on GCP
  • Demonstrated the distinction between:
    • public reachability through firewall-permitted external IPs
    • private reachability constrained by VPC boundaries
  • Validated the practical behavior of multi-interface appliances in cloud networks
  • Strengthened understanding of:
    • VPC isolation
    • subnet design
    • firewall policy behavior
    • internal DNS
    • route selection for multi-homed instances. :contentReference[oaicite:10]{index=10}

Tools & Technologies Used

  • Google Cloud VPC – Isolated virtual network design
  • Custom Subnets – Controlled IP range allocation
  • Firewall Rules – ICMP, SSH, and RDP access control
  • Compute Engine – VM deployment and testing
  • Multi-NIC VM Design – Cross-network attachment pattern
  • Internal DNS – Name-based resolution inside VPCs
  • Linux Networking Tools – Route and interface inspection

Outcome

This project demonstrates the ability to design and validate segmented cloud network architectures on Google Cloud, including multi-VPC communication boundaries and multi-interface appliance patterns. It highlights practical skills in network isolation, routing analysis, firewall configuration, and multi-homed VM design, which are directly relevant to cloud networking, security engineering, and cloud architecture roles.
