Building a Two-Tier Application with an Internal Application Load Balancer on Google Cloud

Timeline: December 2025
Role: Cloud Engineer
Skills: Google Cloud Internal Application Load Balancer, Compute Engine, Managed Instance Groups, Backend Services, Health Checks, Forwarding Rules, Internal Service Design, Two-Tier Architecture, Startup Scripts

Project Summary

This project focused on building a two-tier application architecture on Google Cloud using an Internal Application Load Balancer to expose a private backend service to internal consumers only. The implementation included a managed instance group of backend virtual machines running a lightweight Python prime-number service, an internal load balancer with health checks and backend service configuration, and a public-facing frontend VM that called the internal service to render results for users.

The project demonstrated how to separate public-facing presentation logic from private internal business logic, improving security and service resilience by keeping backend instances off the public internet while still making them accessible through a stable internal virtual IP.

Objectives

  • Create a backend managed instance group for an internal service
  • Configure firewall rules for internal HTTP access and health checks
  • Create an internal Application Load Balancer
  • Test the internal load balancer from another internal VM
  • Create a public-facing frontend that depends on the internal service

Architecture Overview

The architecture consisted of:

  • A managed instance group of backend VMs running a Python-based prime-number calculation service
  • A startup-script-driven instance template named primecalc
  • A firewall rule allowing internal traffic on TCP port 80 to backend instances
  • An HTTP health check for backend validation
  • A regional backend service using the internal load balancing scheme
  • A regional forwarding rule exposing the internal service on a private IP
  • A temporary test VM used to validate the internal service privately
  • A public-facing frontend VM running a Python web application that queried the internal load balancer and displayed prime-number results

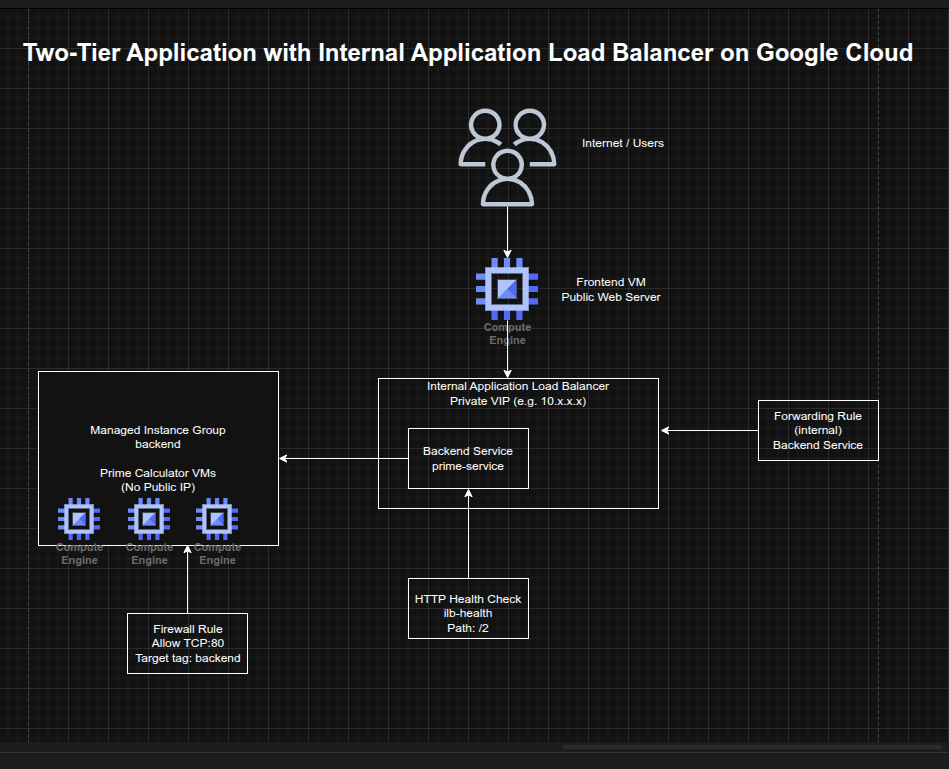

Architecture Diagram

Implementation & Highlights

1. Preparing the Environment

  • Set the default region and zone for Compute Engine resources
  • Created and activated a Python virtual environment in Cloud Shell
  • Enabled Gemini Code Assist in the Cloud Shell IDE to support explanation of startup scripts and development workflow

2. Creating the Backend Service Template

  • Authored a startup script (backend.sh) that created and launched a lightweight Python HTTP server
  • Implemented backend logic to determine whether a number was prime and return True or False
  • Created an instance template named primecalc
  • Configured backend instances with:
    • no external IP address
    • backend network tag
    • e2-medium machine type
  • Ensured the internal service remained private by preventing public internet exposure

3. Building the Backend Managed Instance Group

  • Created a firewall rule allowing TCP port 80 to backend-tagged instances
  • Created a managed instance group named backend
  • Started with three backend instances
  • Used a managed instance group to provide a resilient and repeatable backend service layer

4. Configuring the Internal Application Load Balancer

  • Created an HTTP health check named ilb-health
  • Created a regional backend service named prime-service using the internal load-balancing scheme
  • Added the managed instance group as the backend
  • Created a forwarding rule named prime-lb with a private IP address
  • Established a stable internal entry point for the prime-number service that routed only to healthy backend VMs

5. Testing the Private Service

  • Created a temporary internal VM named testinstance
  • Connected to it using SSH
  • Queried the internal load balancer with sample values:
    • 2
    • 4
    • 5
  • Verified correct responses from the service:
    • True
    • False
    • True
  • Confirmed that the private service was working correctly and accessible only from within the VPC

6. Creating the Public Frontend

  • Authored a startup script (frontend.sh) that created and launched a Python web application
  • Configured the frontend application to call the internal load balancer’s private IP
  • Rendered a matrix showing prime and non-prime numbers in the browser
  • Created a frontend VM with a public IP and frontend network tag
  • Added a firewall rule allowing internet access to the frontend on TCP port 80
  • Demonstrated how a public-facing web tier can safely depend on a private internal service tier without exposing backend instances directly

Design Decisions

  • Used a managed instance group for the backend to improve repeatability and resilience
  • Used an internal Application Load Balancer instead of exposing backend VMs directly
  • Removed public IP addresses from backend instances to reduce exposure and align with a private-service design
  • Used a health check + backend service + forwarding rule model to ensure only healthy internal backends received traffic
  • Kept the frontend public while isolating the business logic in a private backend tier
  • Used startup scripts to keep both tiers lightweight, reproducible, and easy to deploy

Results & Impact

  • Successfully built a two-tier application architecture on Google Cloud
  • Demonstrated practical use of:
    • internal application load balancing
    • managed instance groups
    • private backend services
    • public frontend to private backend communication
    • health-aware backend routing
  • Reinforced a secure application delivery pattern where backend services remain private while still supporting public user workflows
  • Added a strong architectural example of internal service exposure without public backend access

Tools & Technologies Used

  • Google Compute Engine – Backend and frontend virtual machines
  • Managed Instance Groups (MIGs) – Resilient backend tier
  • Internal Application Load Balancer – Private service exposure
  • Backend Services – Health-aware traffic distribution
  • Forwarding Rules – Private frontend IP for the internal service
  • Health Checks – Backend validation
  • Python HTTP Server – Lightweight backend and frontend logic
  • Firewall Rules – Controlled network exposure

Outcome

This project demonstrates the ability to design and implement a secure two-tier internal application architecture on Google Cloud using a public frontend and a private backend service behind an Internal Application Load Balancer. It highlights practical skills in internal service design, health-aware traffic routing, managed backend infrastructure, and private application delivery, which are useful for cloud engineering, infrastructure, and platform roles.
