Configuring an Application Load Balancer on Google Cloud

Timeline: December 2025
Role: Cloud Engineer
Skills: Google Cloud Load Balancing, Application Load Balancer, Compute Engine, Managed Instance Groups, Backend Services, URL Maps, Health Checks, Forwarding Rules, Instance Templates

Project Summary

This project focused on configuring a Layer 7 Application Load Balancer on Google Cloud to distribute HTTP traffic across Compute Engine web servers. The implementation involved provisioning Apache-based VM instances, creating an instance template and managed instance group, configuring firewall access for health checks, reserving a global static IP, and building the full Application Load Balancer stack using backend services, URL maps, a target HTTP proxy, and a forwarding rule.

The project demonstrated how Google Cloud’s Application Load Balancer can route traffic intelligently at the HTTP layer while using health-aware backend selection and globally distributed frontend infrastructure.

Objectives

  • Configure the default region and zone for resources
  • Create multiple web server instances
  • Create an Application Load Balancer
  • Configure backend infrastructure for HTTP traffic routing
  • Test load-balanced traffic to backend instances

Architecture Overview

The architecture consisted of:

  • Three standalone Compute Engine web server instances used for initial validation
  • An instance template defining Apache-based backend VMs
  • A managed instance group (lb-backend-group) created from the template
  • A firewall rule allowing health checks from Google Cloud health check ranges
  • A global static external IPv4 address
  • An HTTP health check for backend validation
  • A backend service linked to the managed instance group
  • A URL map routing requests to the backend service
  • A target HTTP proxy connected to the URL map
  • A global forwarding rule exposing the Application Load Balancer on port 80

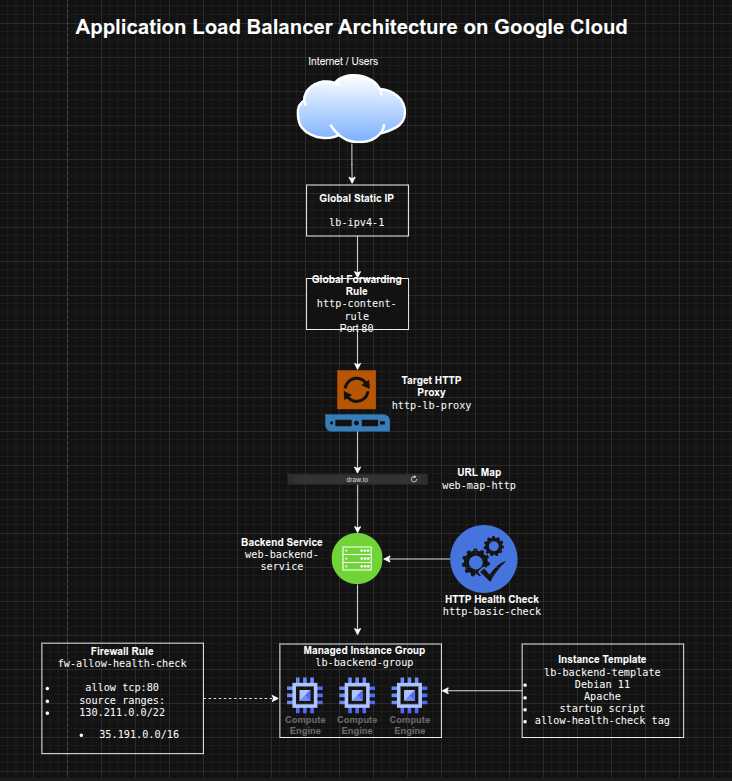

Architecture Diagram

Implementation & Highlights

1. Region and Zone Configuration

  • Set the default region and zone for Compute Engine resources
  • Established a consistent deployment location for backend resources and testing :contentReference[oaicite:1]{index=1}

2. Creating Initial Web Server Instances

  • Provisioned three Apache-based Compute Engine instances:
    • www1
    • www2
    • www3
  • Used startup scripts to install Apache automatically
  • Configured each instance to serve a unique landing page
  • Applied a shared network tag and opened HTTP access with a firewall rule
  • Verified direct HTTP connectivity to each instance before moving to load balancing :contentReference[oaicite:2]{index=2}

3. Building the Backend Template and Managed Instance Group

  • Created an instance template named lb-backend-template
  • Configured backend VMs with:
    • Debian 11
    • Apache
    • startup script customization
    • health-check firewall target tag
  • Created a managed instance group named lb-backend-group with two backend instances
  • Used a MIG to support more scalable and maintainable backend management than standalone instances :contentReference[oaicite:3]{index=3}

4. Preparing Health-Aware Access

  • Created the fw-allow-health-check firewall rule
  • Allowed traffic from Google Cloud health-check source ranges:
    • 130.211.0.0/22
    • 35.191.0.0/16
  • Scoped the rule with the allow-health-check tag
  • Ensured the load balancer could verify backend health before routing traffic :contentReference[oaicite:4]{index=4}

5. Creating the Global Frontend

  • Reserved a global static external IPv4 address named lb-ipv4-1
  • Used a global frontend to support HTTP traffic delivery through Google Front Ends (GFEs)
  • Established a stable public entry point for the Application Load Balancer :contentReference[oaicite:5]{index=5}

6. Configuring the Application Load Balancer

  • Created an HTTP health check (http-basic-check)
  • Created a backend service (web-backend-service)
  • Attached the managed instance group as the backend
  • Created a URL map (web-map-http) pointing to the backend service
  • Created a target HTTP proxy (http-lb-proxy)
  • Created a global forwarding rule (http-content-rule) on port 80
  • Assembled the full Application Load Balancer request path from frontend to healthy backends :contentReference[oaicite:6]{index=6}

7. Testing Traffic Flow

  • Verified backend VM health in the Load Balancing console
  • Accessed the load balancer’s global IP through a browser
  • Confirmed that traffic was served successfully by the backend instances in the managed instance group
  • Validated that the load balancer routed traffic only after backends became healthy :contentReference[oaicite:7]{index=7}

Design Decisions

  • Used managed instance groups instead of manually managed standalone instances for the load-balanced backend tier
  • Used a global static IP to create a stable frontend endpoint
  • Used HTTP health checks so traffic would be sent only to healthy backends
  • Used backend services + URL maps + HTTP proxy to model modern Layer 7 application delivery on Google Cloud
  • Used instance templates to make backend infrastructure repeatable and scalable

Results & Impact

  • Successfully configured a Google Cloud Application Load Balancer
  • Demonstrated practical use of:
    • managed instance groups
    • backend services
    • URL maps
    • target proxies
    • forwarding rules
    • health checks
  • Built a strong understanding of the difference between:
    • Layer 4 traffic distribution
    • Layer 7 HTTP-aware application delivery
  • Added a foundational project for more advanced traffic engineering and application delivery patterns

Tools & Technologies Used

  • Google Compute Engine – Backend virtual machines
  • Managed Instance Groups (MIGs) – Scalable backend groups
  • Instance Templates – Repeatable VM definitions
  • Google Cloud Application Load Balancer – L7 traffic distribution
  • Backend Services – Health-aware backend routing
  • URL Maps – HTTP request routing logic
  • Target HTTP Proxy – Request handling layer
  • Forwarding Rules – Frontend traffic steering
  • Health Checks – Backend validation

Outcome

This project demonstrates the ability to configure a Google Cloud Layer 7 Application Load Balancer for HTTP traffic distribution across managed backend instances. It highlights practical skills in application delivery, health-aware routing, and scalable backend design, which are useful for cloud engineering, infrastructure, and traffic management roles.
