Project: Building a Decoupled Event-Driven Application Using Amazon SQS & SNS

Timeline: September 2025
Role: Solutions Architect (Event-Driven & Distributed Systems Design)
Skills: Amazon SQS, Amazon SNS, Amazon S3 Event Notifications, EC2, Node.js, Asynchronous Processing, Decoupled Architecture, IAM, Fault Tolerance

Executive Summary

Designed and implemented a decoupled, event-driven image processing architecture using Amazon SQS and Amazon SNS.

The project involved:

  • Migrating a tightly coupled application into a loosely coupled architecture
  • Implementing asynchronous communication using Amazon SQS
  • Broadcasting notifications using Amazon SNS
  • Configuring S3 event notifications to trigger processing
  • Validating improved scalability, fault tolerance, and system resilience

This solution reflects modern cloud-native architectural patterns where services operate independently and communicate through managed messaging services.

Business Problem

The original application used direct communication between:

  • Web server (image upload)
  • Application server (image processing)

This tight coupling introduced:

  • Blocking dependencies
  • Reduced scalability
  • Single points of failure
  • Limited fault tolerance

The goal was to redesign the system into an event-driven architecture where:

  • Upload events trigger notifications
  • Processing occurs asynchronously
  • Components scale independently
  • Failures do not cascade across tiers

Phase 1 – Baseline Tightly Coupled Architecture

Initially deployed:

  • Web server (port 8008)
  • Application server (port 8009)
  • Shared S3 bucket for images

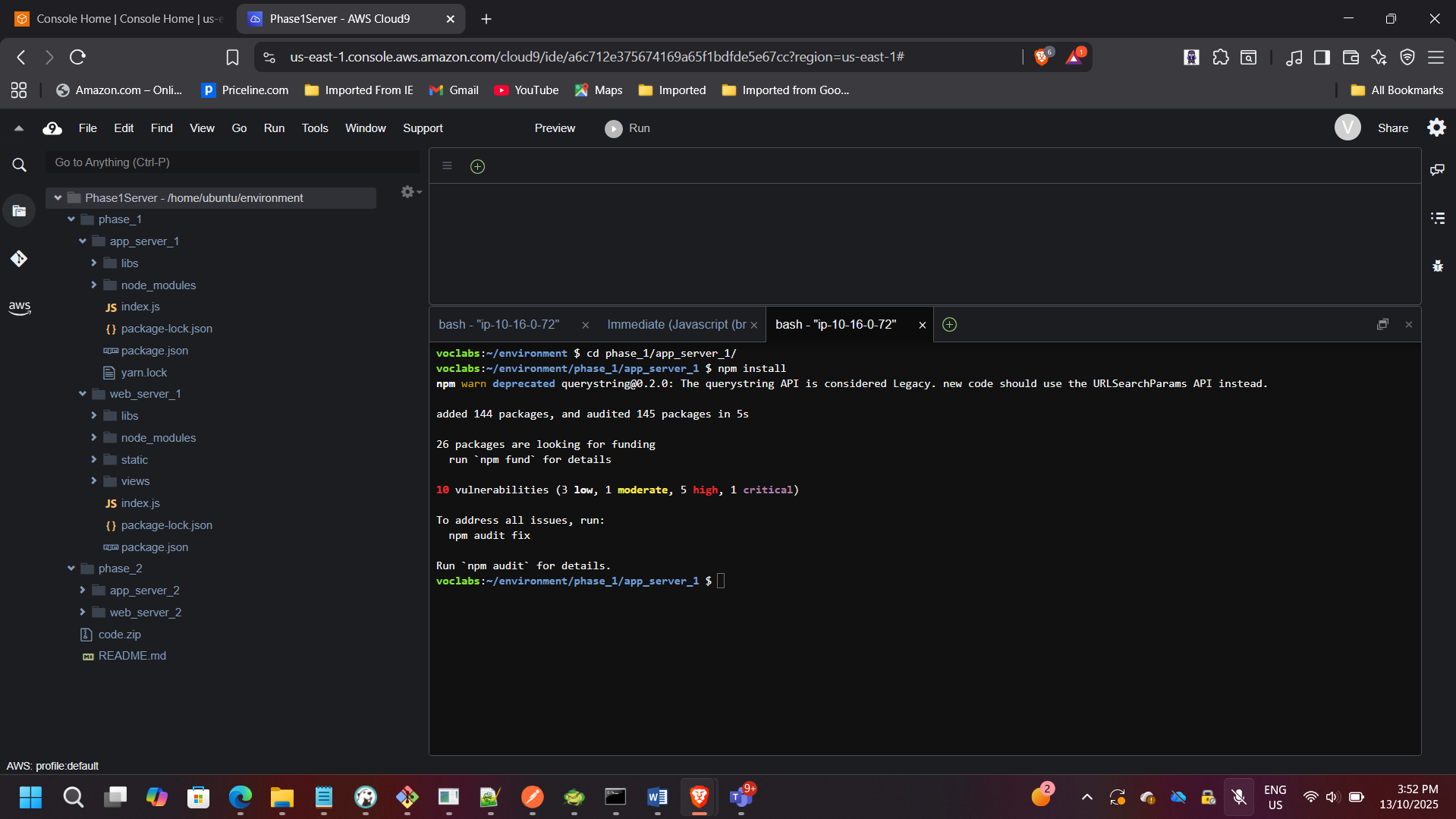

📸 Cloud9 – Application Installation & npm Setup Cloud9 Setup

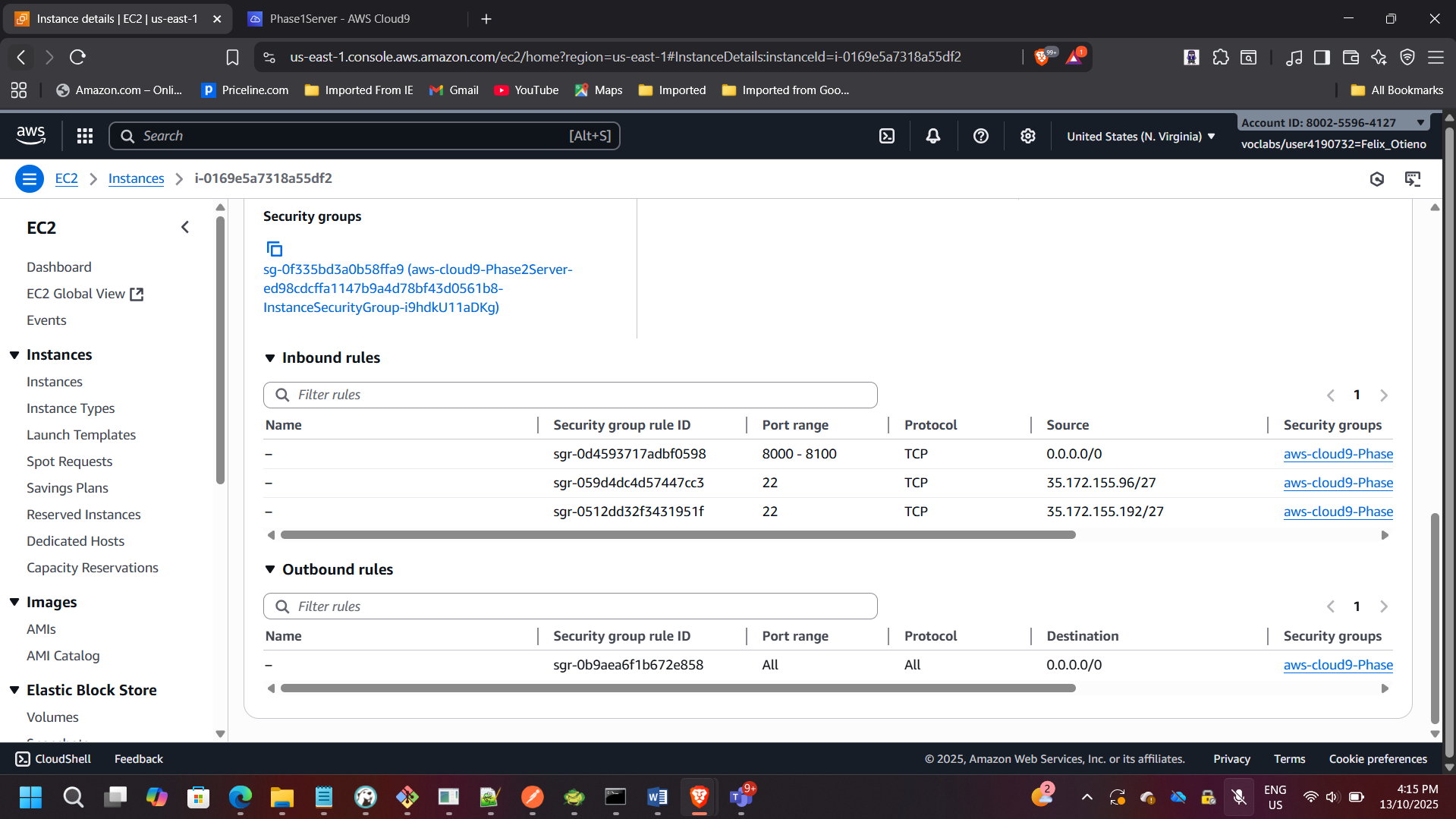

📸 EC2 Security Group Configuration (Ports 8000–8100) Security Group

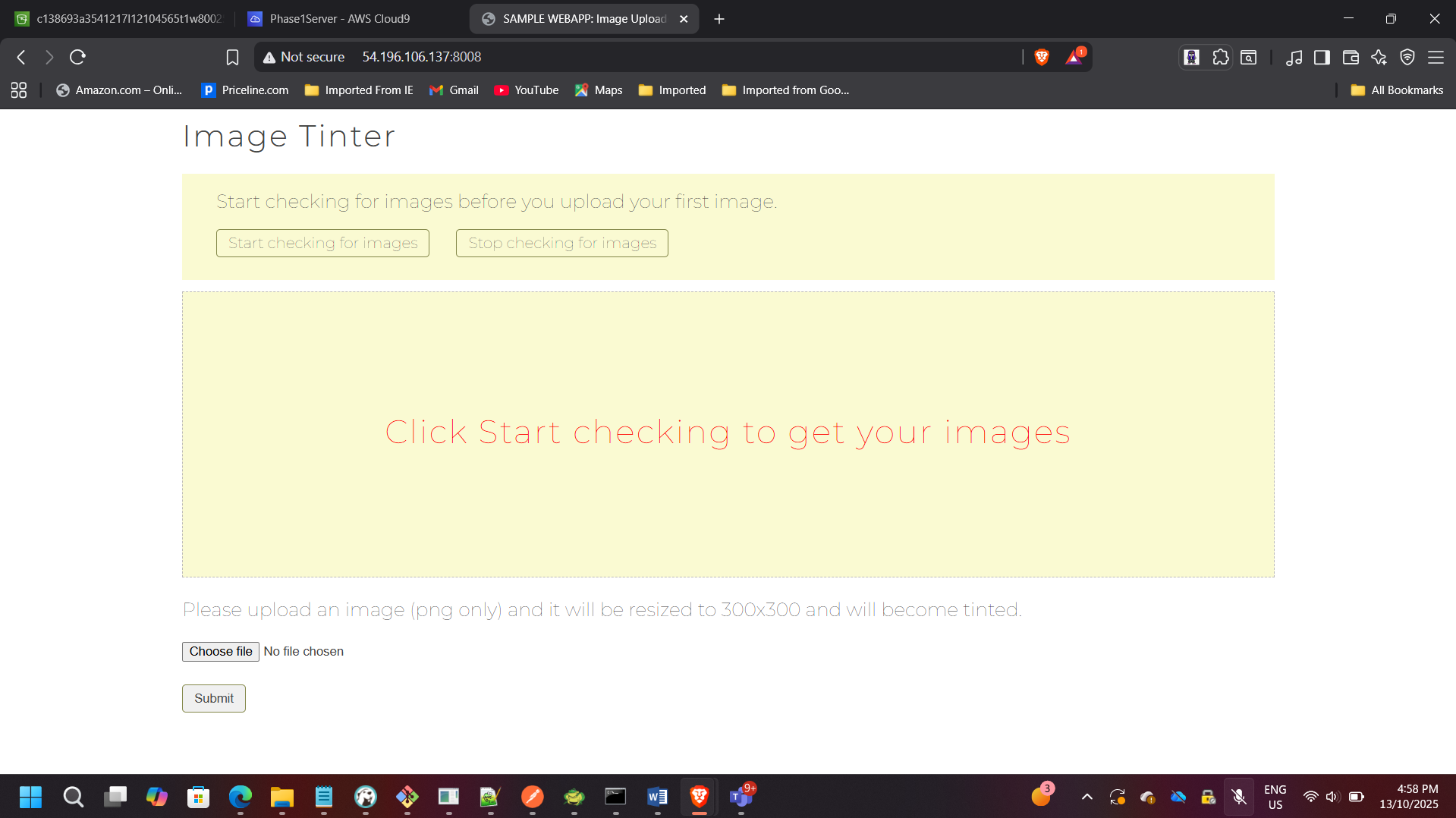

📸 Running Image Tinter Application Tightly Coupled App

In this model:

  • Web server directly invoked processing
  • System depended on immediate availability of processing tier

Phase 2 – Designing the Decoupled Architecture

Architectural Components Introduced

  • Amazon SQS → Message Queue
  • Amazon SNS → Notification Broadcasting
  • Amazon S3 Event Notifications
  • Email subscription for monitoring

New flow:

  1. User uploads image to S3
  2. S3 triggers SNS topic
  3. SNS publishes to:
    • SQS queue (for processing)
    • Email subscription (notification)
  4. Application server polls SQS
  5. Image processed asynchronously

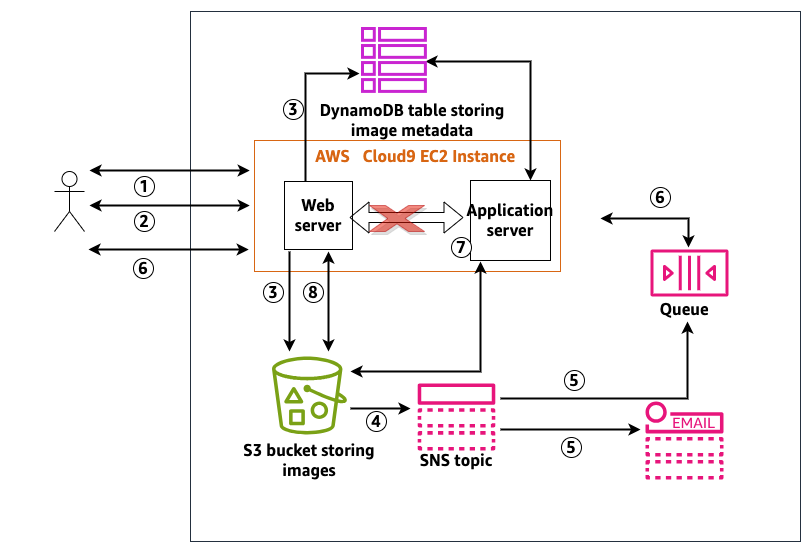

Event-Driven Architecture Diagram

Implementing the Decoupled System

Step 1 – Configuring Amazon SQS

Created SQS queue:

  • Queue Name: ImageApp
  • Default settings
  • Copied Queue URL

📸 SQS Queue Details SQS Queue

This queue buffers upload events and decouples upload from processing.

Step 2 – Configuring Amazon SNS

Created SNS topic:

  • Topic Name: uploadnotification
  • Custom access policy
  • Allowed S3 publish permissions

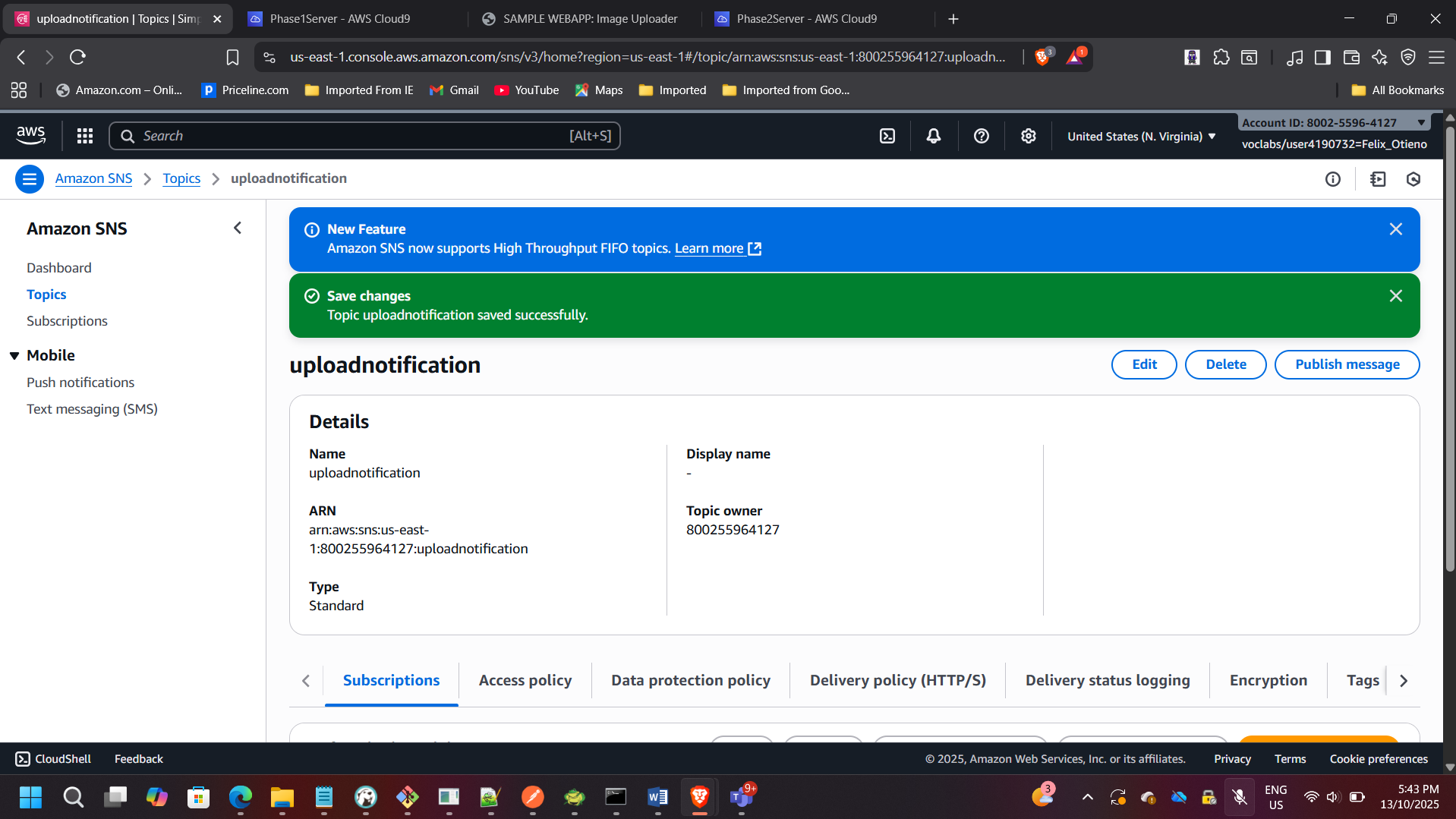

📸 SNS Topic Details SNS Topic

SNS acts as the fan-out mechanism for notifications.

Step 3 – Configuring S3 Event Notifications

Configured:

  • Event: All object create events
  • Destination: SNS topic

📸 S3 Event Notification Configuration S3 Event Notification

Now every image upload generates an event.

Step 4 – SNS Subscriptions

Configured:

  • SQS subscription
  • Email subscription

📸 SQS Subscription to SNS SNS to SQS

📸 Email Subscription Confirmation Email Subscription

This provides:

  • Automated processing
  • Operational visibility

Step 5 – Updating Application Configuration

Modified:

  • Browser tier config
  • Web tier config
  • Application server config
  • Inserted SQS Queue URL
  • Inserted S3 bucket references

Started services:

  • Web server → port 8007
  • Application server → port 8010

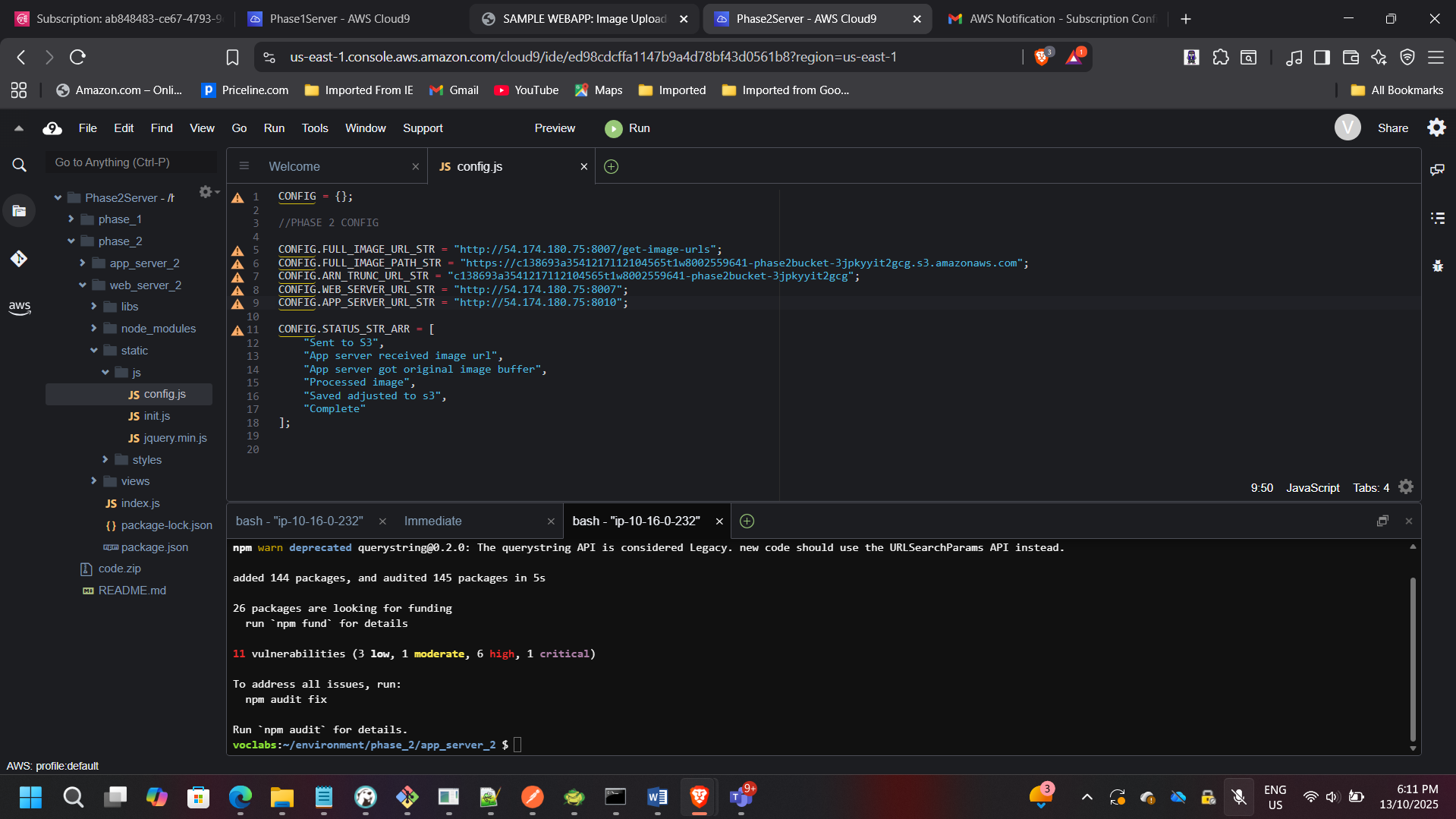

📸 Cloud9 – Updated Config Files Updated Config

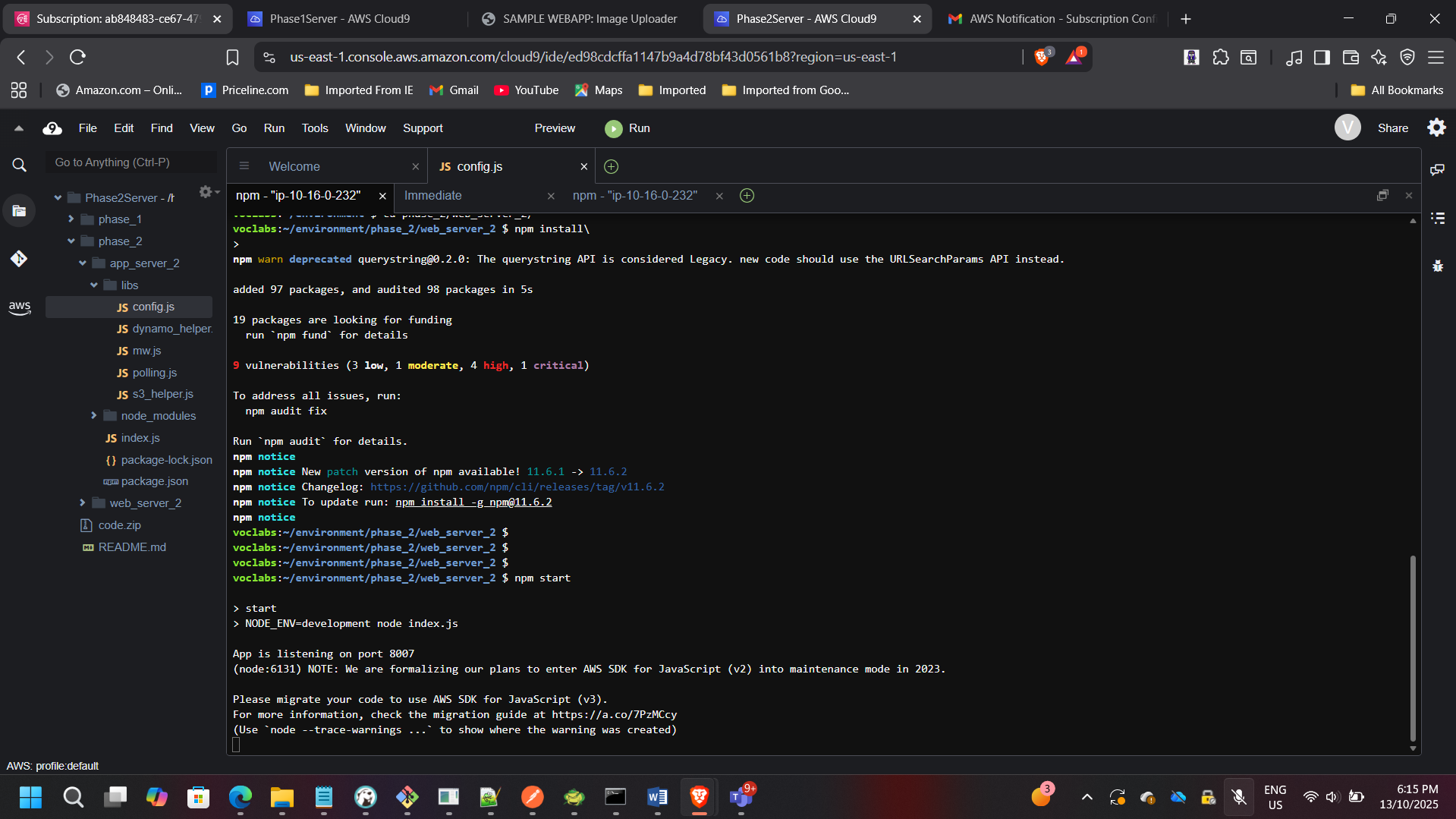

📸 Servers Running on Ports 8007 & 8010 Servers Running

Validating the Event-Driven Flow

Upload Event

User uploads image → triggers SNS → sends email

📸 Image Upload in Browser Upload Image

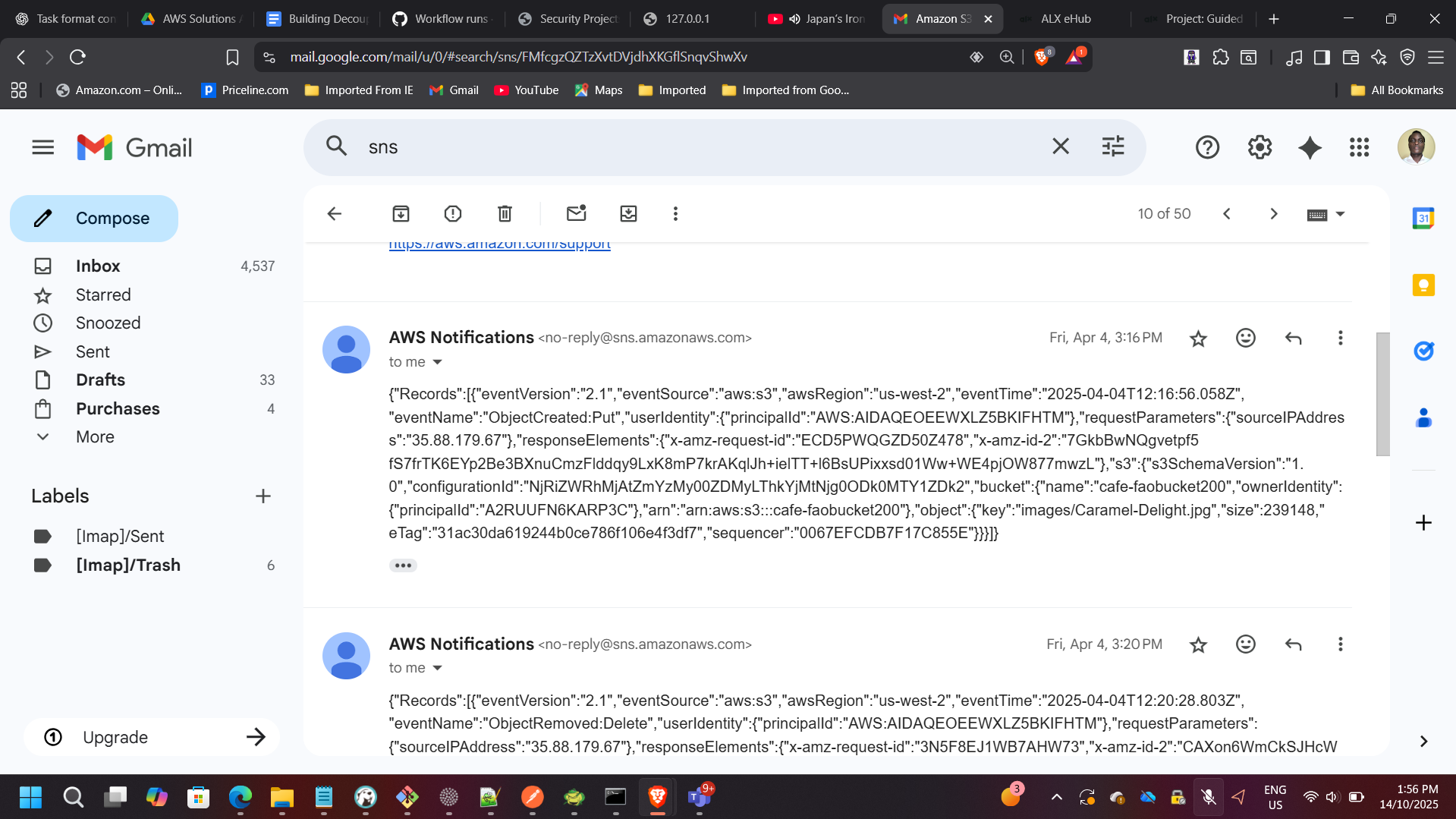

📸 Email Notification – Upload and Processing Events Upload Email

Processing Event

Application polls SQS → processes image → sends completion notification

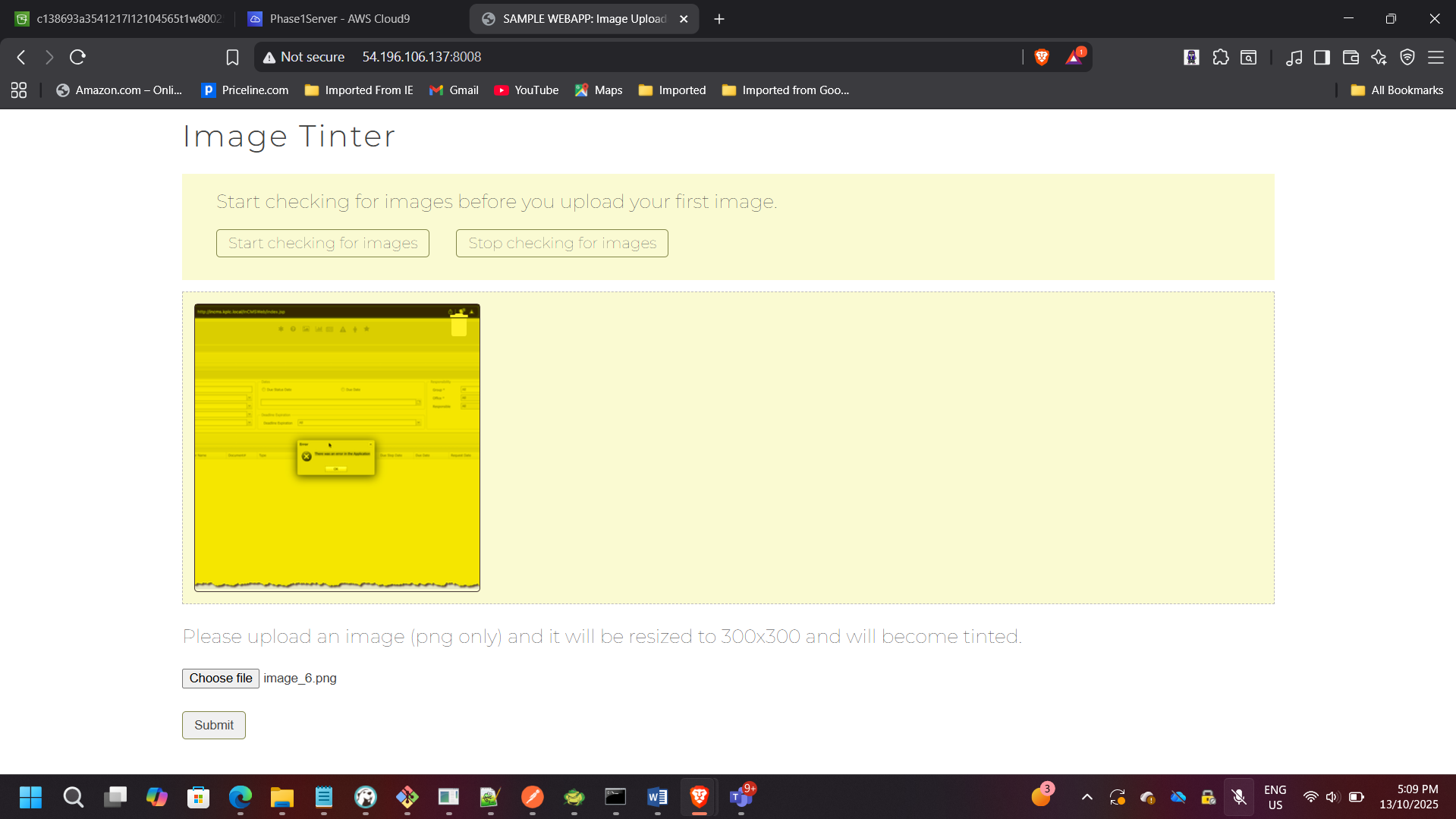

📸 Processed Image Displayed Processed Image

Architectural Improvements Achieved

Asynchronous Processing

Uploads no longer block processing tier.

Fault Isolation

If processing server fails:

  • Messages remain safely in SQS.
  • System resumes when service recovers.

Horizontal Scalability

Multiple processors can poll from SQS simultaneously.

Loose Coupling

Web and application tiers operate independently.

Improved Reliability

Managed AWS messaging services reduce operational overhead.

Enterprise Architecture Impact

This architecture aligns with:

  • Event-driven microservices principles
  • Distributed systems design
  • Cloud-native asynchronous communication
  • Resilient application architecture patterns

It demonstrates the ability to:

  • Identify coupling issues
  • Redesign systems for scalability
  • Implement messaging-based communication
  • Integrate multiple AWS services coherently

Conclusion

Successfully transformed a tightly coupled image processing application into a decoupled, event-driven architecture using Amazon SQS and Amazon SNS.

The redesign improved:

  • Scalability
  • Fault tolerance
  • Operational resilience
  • Asynchronous processing capability

This project demonstrates practical understanding of distributed system design and modern cloud-native messaging patterns.
